4 Cavity Water Bottle PET Blow Molding Machine

1
MOQ
23000 USD/PCS
Price
4 Cavity Water Bottle PET Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
After-sales Service Provided: Online Support
Product Name: Blow Molding Machine
Suitable Bottle: Drink Bottle
Key Words: Automatic Pet Blowing Machine
Type: Automatic Botte-blowing Machines
Voltage: 220V/380V
Function: Pet Bottle Blow Making Machine
Bottle Material: PET
Use: Plastic Bottle Making
Theoretical Output: 5200-7500 Bph
Highlight:

7500Bph pet bottle blower machine

,

Transparent pet bottle blower machine

,

4 Cavity plastic bottle blower machine

Basic Infomation
Place of Origin: China
Brand Name: PET
Certification: CE
Model Number: YCQ-2L-4
Payment & Shipping Terms
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C
Product Description

4 Cavity water bottle PET blow molding machine


YCQ-2L-4 Water bottle blow molding machine with 4 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ-2L-4 plays a big role in hot filling package market.

Machine features

A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.


Machine Parts

Blowing Cylinder ----Festo (Germany)

Moulding Closing and Opening Cylinder ---- Festo (Germany)

Value ---- Festo (Germany)

Revolve Cylinder ---- SMC (Japan)

PLC ---- Mitsubishi (Japan)

Touch Screen ----Hitech (Taiwan)

Switch ----Omron (Japan)

4 Cavity Water Bottle PET Blow Molding Machine 0



Products Description



4 Cavity Water Bottle PET Blow Molding Machine 1

DAWSON MACHINERY & MOULD GROUP

This PET water bottle blow molding machine is specially designed to produce water bottle,
PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable
performance. With high strength, good transparency and low production costs, abundant material resource, PET Blow Moulding Machine plays a big role in hot filling package market.


Machine Advantages
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement,

equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.

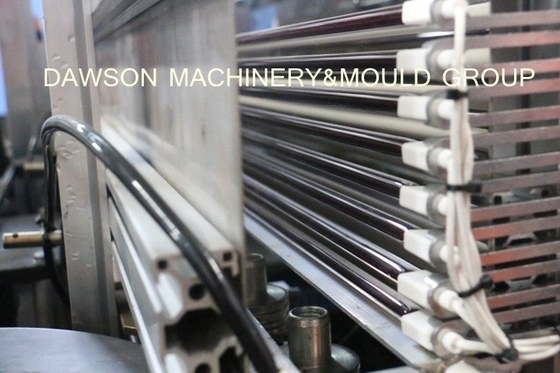

Small performs distance heating system

Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30%
electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.



Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.



Professional Workshop

Our Professional Injection Stretch Blow Molding Machine Workshop...





Company Profile



4 Cavity Water Bottle PET Blow Molding Machine 2
DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
Packing & Shiping
4 Cavity Water Bottle PET Blow Molding Machine 3


Our Service
4 Cavity Water Bottle PET Blow Molding Machine 4
4 Cavity Water Bottle PET Blow Molding Machine 5

RFQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
