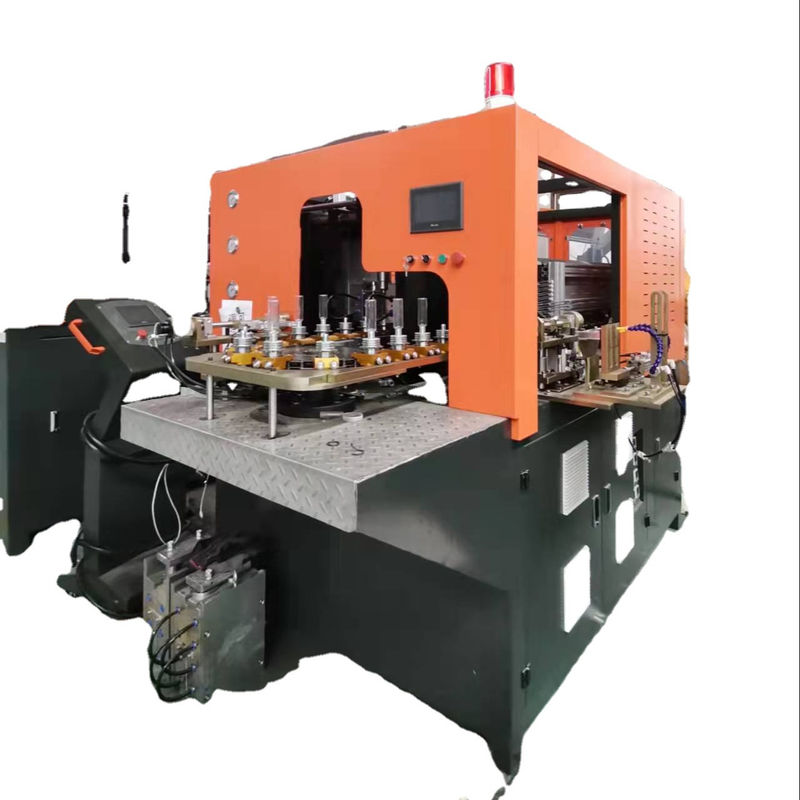

Semi Automatic PET Bottle Blow Molding Machine

Minimum Order Quantity : 1 piece Price : USD 3500-50000 piece
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: PET

Detail Information

Application: Plastic Bottle, PET Bottles Dimension(L*W*H):: 1.45*0.65*1.15(m)
Core Components:: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel Manpower Required:: 1~2 Operator
Heating Time(S): 90-200 Oven Size (LxWxH): 1.35*0.55*1.15
Oven Weight (KG): 300 Mould Spacing(mm): Adjustable
Die Stroke (mm): 270
High Light:

CE semi automatic pet blow molding machine

,

2L semi automatic pet blow molding machine

,

4 Cavity semi automatic pet blow moulding machine

Product Description



DAWSON MACHINERY & MOULD GROUP

Semi Automatic PET Bottle Blow Molding Machine


This PET bottle-making blow molding machine is controlled by a microcomputer. The plastic
blowing machine can control the technical parameters more accurately. With the upper and lower system, emergency stop system, independent counter device, count the output accurately, w
ith infrared lamp heating device, penetrating power, perform rotation heating, heating evenly and quickly.



Our company has a different type of machine, H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles, special-shaped bottles, small-quantity conventional bottles, which is simple to operate and has a wide range of applications.It is suitable for the various diameter of PET bottles for various purposes. H series bottle blowing machine is not equipped with auto-loader. It is by manual. It is stable and reliable, with low cost, safe and practical alternative to traditional semi-automatic equipment.


PET semi-automatic plastic bottle blowing machine is suitable for blowing plastic PET bottles such as carbonated beverage bottles,mineral water bottles, cosmetic bottles and hot filling bottles etc.
Technical Parameters
Main machine (blower + oven)
Item
YC-2L-4
Product Spec
Max. product volume(L/cav)
2L
Max. preform neck size(mm)
100
Max. product diameter(mm)
180
Max. product height (mm)
300
Cavities
4
Blow molding part
Die force (KN)
100
Die stroke (mm)
270
Max. mould size(mm)
390*345
Mould thickness
Adjustable
Mould spacing(mm)
Adjustable
Max. pulling stroke(mm)
400
Operation pressure(Mpa)
0.8-1.0
Operation air pressure consumption
(1tr/min)
200
Blow pressure(Mpa)
1.2-2.8
Blow air pressure consumption (1tr/min)
300
Output(pcs/h)
2600-2800(500ml bottle)
Machine size(LxWxH)(m)
1.46*0.58*1.8
Machine weight(KG)
650
Oven
Temperature grade(rate)
8
Heating time(S)
90-200
Voltage(V)
220 or as your request
Frequency(HZ)
50/60
Total power(KW)
16
Oven Size (LxWxH)
1.35*0.55*1.15
Oven weight (KG)
300



Machine Advantages
Semi Automatic PET Bottle Blowing Machine

PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

Semi Automatic PET Bottle Blow Molding Machine 0
Semi-auto blow molding machine

Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage
companies and daily chemical product companies.
infrared lamp heating

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;
heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic
temperature-removal device to ensure the constant temperature of oven.
Semi Automatic PET Bottle Blow Molding Machine 1
Semi Automatic PET Bottle Blow Molding Machine 2
Specially designed high rigidity composite mold structure


Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy
to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid
response, long working hours , stable performance,ensure stable operation.





DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine, blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!




FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
