Name: Plastic Making New Generation Mineral Water Bottle Blow Molding Machine
Brand: DAWSON
SKU: YC-2L-4
Price: 3000 USD
Availability: InStock
Rating: 4.9 (167 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: PET Semi Auto Blow Moldling Machine

Brand: DAWSON

Model: YC 2L-4

Light Tube Quantity: 32pcs

Light Tube Power: 1.25KW

Maximum Heating Power: 40KW

High Light:

Mineral Water Bottle Blow Moulding Machine

Mic Computer Control Blow Molding Machine

Basic Infomation

Place of Origin: china

Brand Name: DAWSON

Certification: CE

Model Number: YC-2L-4

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 55-65working days

Supply Ability: 5 sets / month

Gallery

Plastic Making New Generation Mineral Water Bottle Blow Molding Machine

Product Description

Plastic making new generation hot sale mineral water bottle blow molding machine

Plastic Making New Generation Mineral Water Bottle Blow Molding Machine 0

Products Description

DAWSON MACHINERY & MOULD GROUP

Semi Automatic PET Bottle Blow Molding Machine

l. Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.

2. High responsiveness pneumatic components,action timely and precisely.

3. Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation.

4. Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.

l. Special design,high rigid compound die structure

2. Wide adaptability, suitable for every type mould thickness

3. Adjust convenience

4. No mould rolling out

5. More energy conservation,no need much air supply

6. High burnish principal axis, with very precise polishing, light action and low noise.

7. Short mould stroke,quick action

8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%

9. Hig dead-weigh, ensure the steady during the opeartion
Technical Parameters

			Main machine (blower + oven)

			Item

			YC-2L-4

			Product Spec

			Max. product volume(L/cav)

			2L

			Max. preform neck size(mm)

			100

			Max. product diameter(mm)

			180

			Max. product height (mm)

			300

			Cavities

			4

			Blow molding part

			Die force (KN)

			100

			Die stroke (mm)

			270

			Max. mould size(mm)

			390*345

			Mould thickness

			Adjustable

			Mould spacing(mm)

			Adjustable

			Max. pulling stroke(mm)

			400

			Operation pressure(Mpa)

			0.8-1.0

			Operation air pressure consumption

			(1tr/min)

			200

			Blow pressure(Mpa)

			1.2-2.8

			Blow air pressure consumption (1tr/min)

			300

			Output(pcs/h)

			2600-2800(500ml bottle)

			Machine size(LxWxH)(m)

			1.46*0.58*1.8

			Machine weight(KG)

			650

			Oven

			Temperature grade(rate)

			8

			Heating time(S)

			90-200

			Voltage(V)

			220 or as your request

			Frequency(HZ)

			50/60

			Total power(KW)

			16

			Oven Size (LxWxH)

			1.35*0.55*1.15

			Oven weight (KG)

			300

Machine Advantages
Q Series PET Bottle Blowing Machine Description
PET linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type.

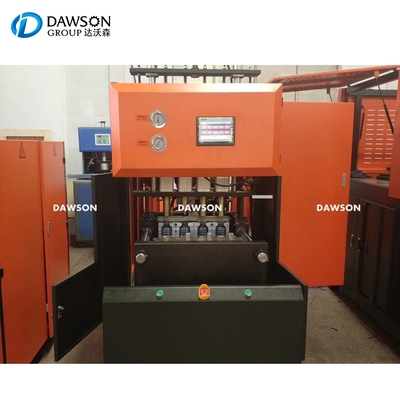

			Semi-auto blow molding machine

Semi-automatic bottle blowing machine is controlled by microcomputer,control the technical parameters more accurately.PET bottle blowing machine is simple and safe to operate.It only requires one person and does not require special training. PET blow molding machine is suitable for blow molding of plastic packaging bottles such as carbonated beverage bottles, mineral water bottles, hot filling bottles and cosmetic bottles. It is suitable for the production of small beverage

			companies and daily chemical product companies.

			infrared lamp heating

Adopt infrared lamp heating, strong penetration, preform rotation heating, track revolution, heating evenly, fast and reliable;

			heating lamp,reflector width and height can be adjusted to suit preform heating of different structure,with automatic

			temperature-removal device to ensure the constant temperature of oven.

			Specially designed high rigidity composite mold structure

Specially designed high rigidity composite mold structure, wide applicability, suitable for various types of mold thickness, easy

			to adjust and save energy, less air demand, precision polished spindle, equipped with photoelectric sensor, low noise,rapid

			response, long working hours , stable performance,ensure stable operation.

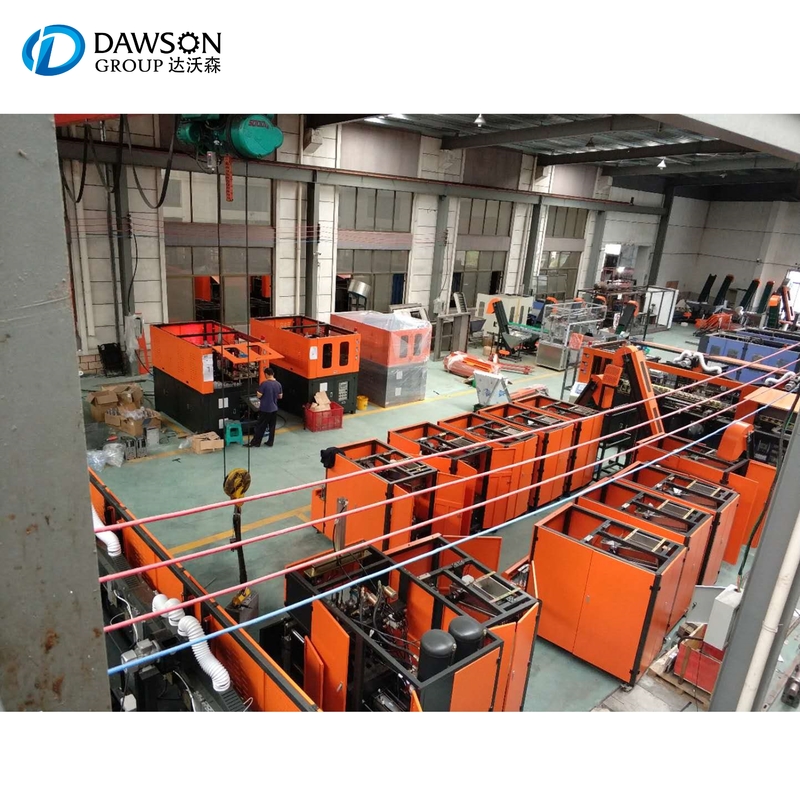

Plastic Making New Generation Mineral Water Bottle Blow Molding Machine 10 Professional Workshop

Our Professional PET Blow Molding Machine Workshop...

Applications

Plastic Making New Generation Mineral Water Bottle Blow Molding Machine 15

Plastic Making New Generation Mineral Water Bottle Blow Molding Machine 16

Company Profile

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...
DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine, blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos

We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...

Our Service

FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
