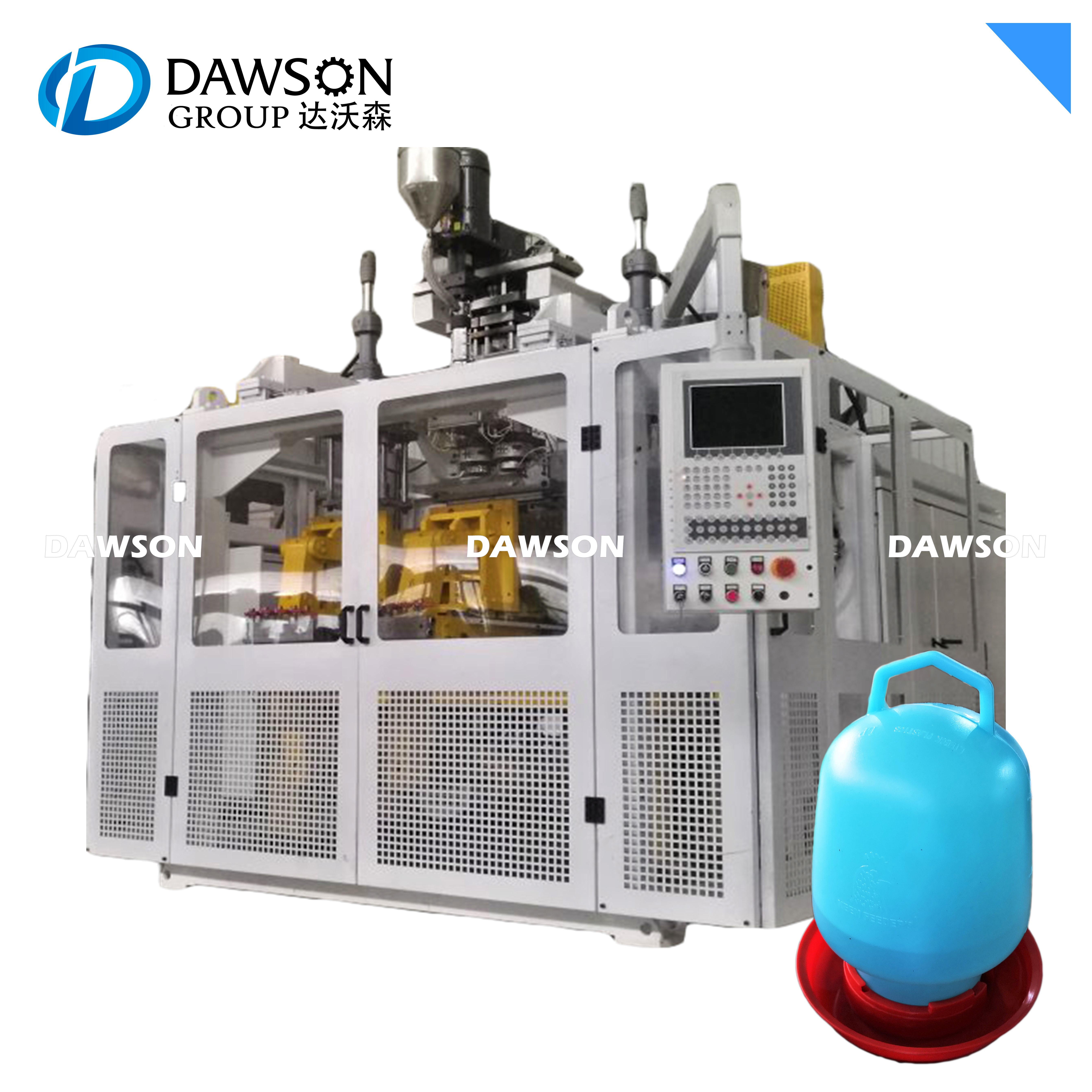

Machine Model TP5D-75
Extrusion Blow Molding Machine Double Station
( Single head - 5L Lubricant oil bottles )



*Volume 1L to 5L
*Net Weight 100-280g
*Production 250-380 pcs per hour.


- Single head can making 2L bottle - 5L bottle
- Double head for making 0-2L bottles
- 3 die head can making max. 750ml bottle
- 4 die head suitable for max. 500ml bottle

( we provide single station blow molding machine too, customer can choose according to the budget and output demands. )




Standard Features


1. Double station blow moulding machine with 75mm grooved extruder.

2. Single, double triple and quadruple head capacity.

3. Reliable two-plate axes mould locking.

4. Processing PE, LDPE, PP capacity.

5. Multi-blow extrusion heads with quick color change.

6. In machine automatic deflashing and cooling station.

7. Nitrided screw and berrel.

8. Adopt hydraulic accumulators.

9. Low power consumption.

10. Up blowing system.

11. Machine control by microprocessor B&R

12. SERVO valve for hydraulic and 100/300 point Parison thickness.

13. Gripper for bottle take out inside machine.

14. Carriage fast movement by Prop Valve.

15. Safety ladder and rail protection.





Detail Images

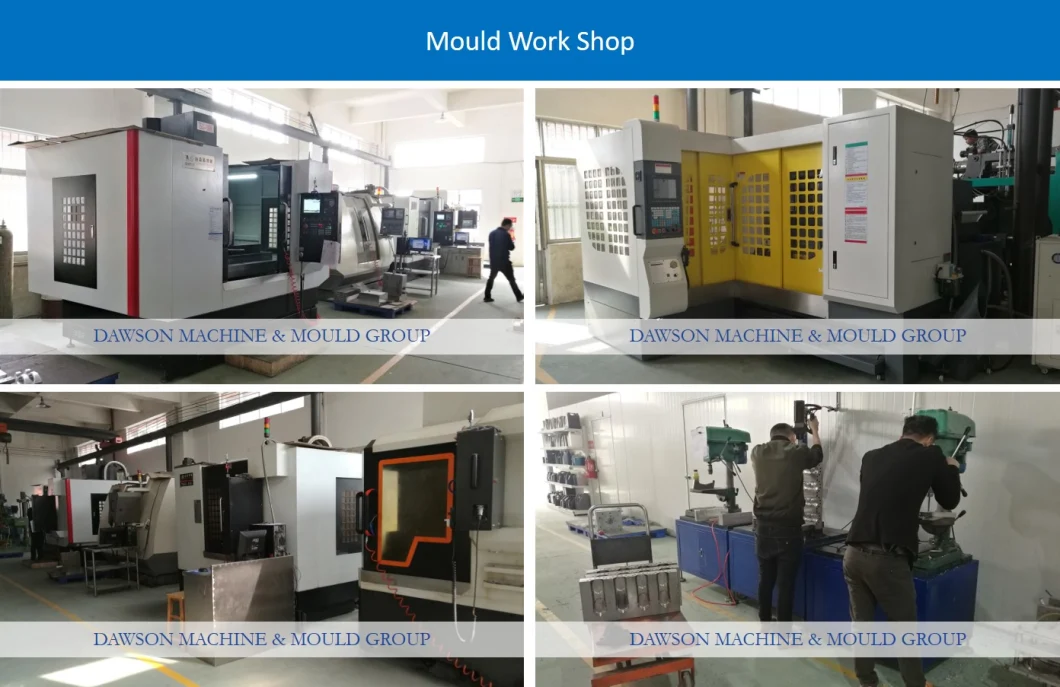

Professional Workshop

Our professional blow molding machine workshop...

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...



DAWSON MACHINERY & MOULD GROUP



Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....



We have our own service team in



Saudi Arabia, Colombia, Panama, South Africa ...

DAWSON MACHINE & MOULD GROUP

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
