Operating Interface Language:Chinese, English And Other Languages If Necessary
Machine Appearance Color::Customizable
Applicable Industries::Food & Beverage Factory
Key Selling Points:Fully Servo
High Light:
200ML PET Bottle Blow Moulding Machine
,
Fully Servo PET Bottle Blow Molding Machine
Basic Infomation
Place of Origin:CHINE
Brand Name:DAWSON
Certification:CE
Model Number:Q3000
Payment & Shipping Terms
Packaging Details:wooden
Delivery Time:45-65 days
Payment Terms:L/C, T/T
Supply Ability:25 pieces per month
Gallery

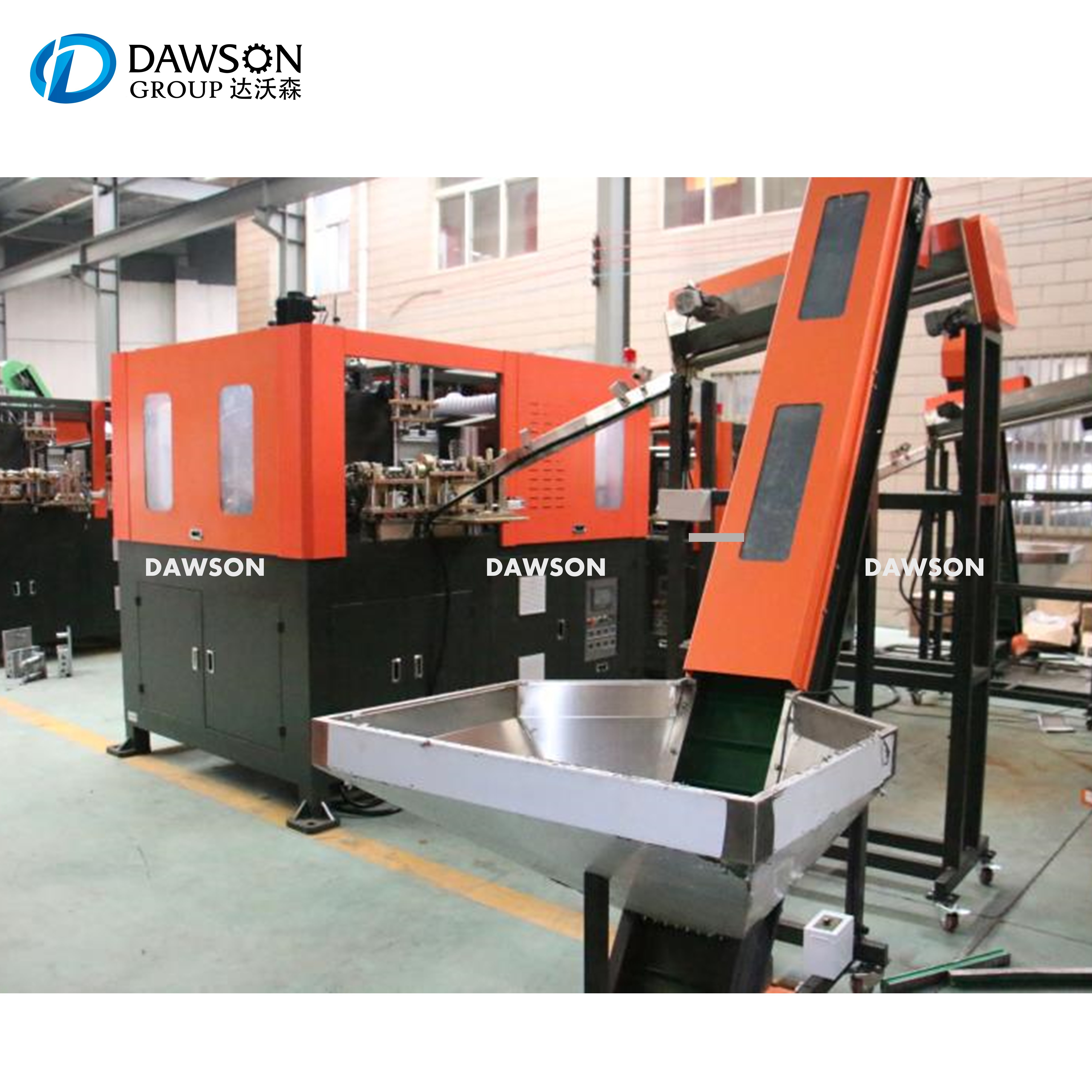

Automatic Plastic PET Bottle Blow Moulding Machine Exceptional Mineral Water making
Product Description
Products Description
DAWSON MACHINERY & MOULD GROUP
Automatic PET Bottle Blow MoldingMachine Q9000
This PET water bottle blow molding machine is specially designed to produce water bottle,
PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.
In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable
performance. With high strength, good transparency and low production costs, abundant material resource, PET Blow Moulding Machine plays a big role in hot filling package market.
Technical Parameters
Item
Q9000
Bottle type specification
Cavity
6
Theory output
8000~9000
Max.volume
2L
Bottle mouth maximum overall diameter
28-38mm
Bottle biggest diameter
105mm
Bottle maximum height
330mm
Power specification
Light tube quantity
48pcs
Light tube power
1.5KW
Maximum heating power
72KW
All electric machine installation
75KW
Actual consumption
40%--70%
Air pressure specification
Work pressure
7-9kg/cm2
Low-pressure gas consumption
1000L/min
Blow bottle pressure
25-35kg/cm2
Higher -pressure gas consumption
3000Ltr/min
Air pressure specification
Work pressure
5-6 kg/cm2
Temperature range
10℃
Consumption
8000kcal/hr
Frozen water flow
138L/min
Machine specification
Machine size
5.5x1.6x1.9
Machine weight
4.5ton
Machine Advantages
Q Series PET Bottle Blowing Machine Description
1.Stable performance with Advanced PLC.
2.Conveying performs automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and re-volute in the
rails simultaneously in the infrared preheated.
4.High adjust ability to enable the preheated to preheat performs in shapes by adjusting the light tube and the length of the reflecting board in the preheating area,and eternal temperature in the preheated with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the
device,double protect the screw neck.
6.Each mechanical action has safety self-locking device,when a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remote-maintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rate: less than 0.2 percent.
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement,
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30%
electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system
By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.
