Chemical barrels Drum ABLD100 Blow Molding Machine 120L Hdpe Open Top Plastic Single die head Blow Molding Machine
Contact Person : Kenmartin
Phone Number : 008613913143237
WhatsApp : +8613913143237
|Minimum Order Quantity :||1 set||Price :||USD 26,000 ~ 35,000 / set|
|Packaging Details :||Standard Export Packing||Delivery Time :||6-12 weeks|
|Payment Terms :||L/C, T/T, Western Union, MoneyGram||Supply Ability :||200 sets / month|
|Place of Origin:||CHINA||Brand Name:||DAWSON|
|Suitable Product Volume:||0-5 L||Dry Cycle:||1000 Pc/h|
|Screw Diameter:||65 Mm||Screw L/D Ratio:||24|
|Screw Drive Power:||18.5 KW||Screw Heating Capacity:||5-6 KW|
|No. Of Heating Zone:||3||Output Of HDPE:||75 Kg/h|
|Oil Pump Drive Power:||7.5 KW||Clamping Force:||65 KN|
|Die Head Heating:||4.5 KW||Total Installation Power:||36 KW|
|Average Consumption:||24 KW||Max. Size Of Mold:||320*350 Mm|
|Template Size:||290*320mm||Mold Stroke:||150-500 Mm|
|Max. Die Diameter:||170mm||Blowing Pressure:||0.6 MPa|
|Air Volume:||0.6 M3/min||Cooling Water Pressure:||0.3 MPa|
|Water Consumption:||50 L/min||Size Of Machine:||3.9*2*2.6|
|Machine Weight:||5.5 T||Warranty:||1 Year|
|Blow Moulding Type:||Extrusion Blow Moulding||Plastic Processed:||PE,PET,PP,HDPE,PVC|
|After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Video Technical Support,Field Maintenance And Repair Service|
Plastic Container Double Station Blow Molding Machine,
Single Head Water Bottle Blow Molding Machine,
5L PP Water Bottle Blow Molding Machine
2L 4L 5L PP PE Double Station Single Head Plastic Container Oil Water Bottle Small Extrusion Blow Molding Machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru...

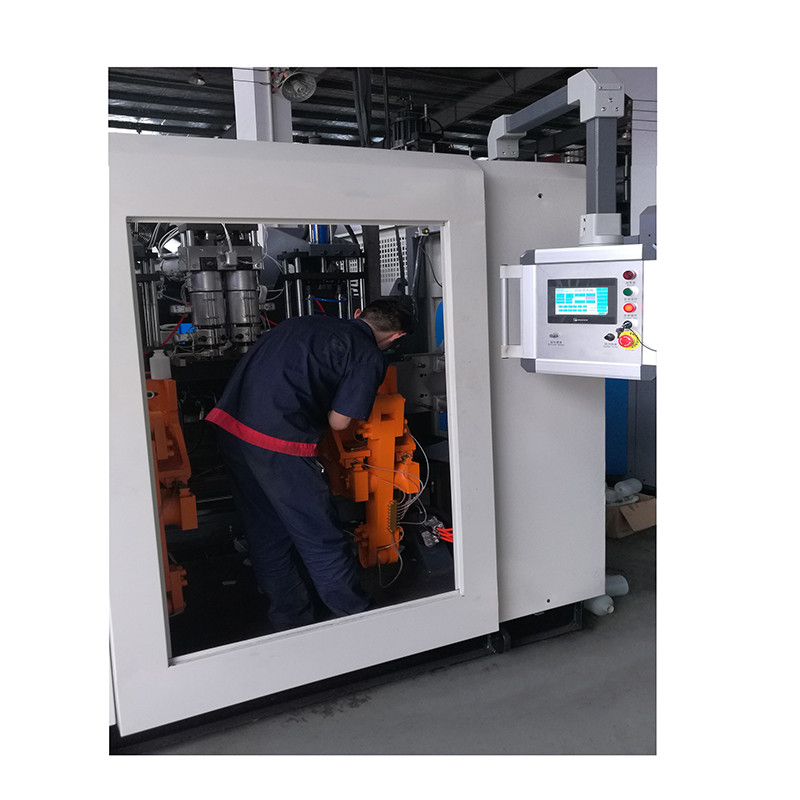

Automatic Extrusion Blow Molding Machine ABLB65I
ABLB65I full-automatic bottle making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters.
1. Suitable products
0~5L HDPE, PP bottles
Applications: Milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
This machine can be double station or single single station, depends on your output demands.
3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head.
Single die head (2~5L)
Double die head (0~2L)
Changing the die head system takes around 1.5~3h, this also included heating time.

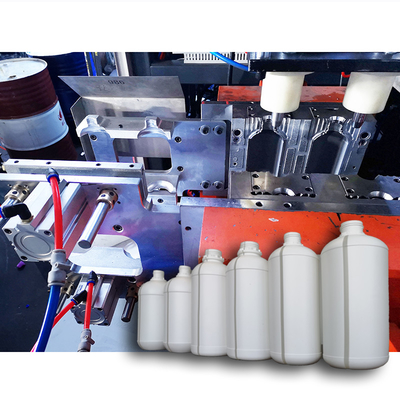

4. Mould - Aluminium 7075# inserted beryllium copper
The best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.
( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing. )
5. MOOG 100 Point Parison control system is a program to change the parison thickness, As the plastic is extruded from the die head, the programming can:
1. Reduce the plastic used
2. Improved wall thickness distribution
3. Reduce cooling time
Do we have to use MOOG parison system?
No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles.
MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG.
|Type of Blow Molding Machine|
EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows:
1. Continuous Extrusion Equipment
2. Intermittent Extrusion Machinery
Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums.
Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers.
Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.
|Plastic machines we provide ....|
Extrusion Blow Molding Machine
Injection Blow Molding Machine
PET Blow Molding Machine
Injeciton Molding Machine
Injection Stretch Blow Molding Machine
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.
Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.
House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.
Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.
Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.
Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.
Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
