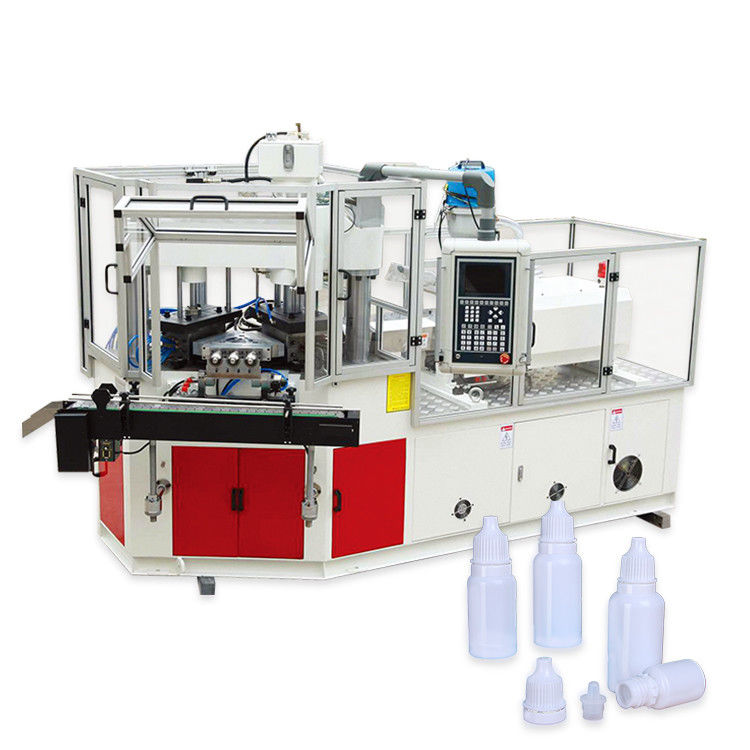

Fully automatic servo HDPE PP 10ml eyedrop bottles for injection molding machine blowing
It is suitable for processing large quantities of 5ml to 1L small plastic containers, such as cosmetics, daily necessities, medicine and food packaging bottles.
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Technical Parameters
|
|
|
|
|
|
Item
|
|
Unit
|
|
|
Injection system
|
Screw Diameter
|
mm
|
40
|
45
|
50
|
|
Max. Theoretical injection capacity
|
G
|
176
|
260
|
314
|
|
Heating capacity
|
KW
|
7.2
|
10
|
10
|
|
No. of heating area
|
Qty
|
3
|
3
|
3
|
|
Clamping & blowing system
|
Clamping force of injection
|
kn
|
350
|
450
|
650
|
|
Clamping force of blowing
|
kn
|
40
|
78
|
89
|
|
Opening stroke of mold platen
|
mm
|
120
|
120
|
140
|
|
Max. Platen size (L×W)
|
mm
|
420×340
|
560×390
|
740×390
|
|
Min. Mold thickness (H)
|
mm
|
180
|
240
|
280
|
|
Heating capacity of mould
|
KW
|
2.8
|
4.0
|
5.0
|
|
Product dimension range
|
Suitable bottle range
|
ml
|
3-800
|
3-800
|
5-800
|
|
Max. bottle height
|
mm
|
≤180
|
≤200
|
≤200
|
|
Max. Dia. of bottle
|
mm
|
≤80
|
≤80
|
≤80
|
|
Dry cycle
|
s
|
4
|
|
|
|
Hydraulic driving system
|
Motor power
|
KW
|
11/15
|
18.7/22
|
17
|
|
hydraulic pressure
|
Mpa
|
14
|
14
|
14
|
|
Pneumatic system
|
Min. Air pressure
|
Mpa
|
≥0.8
|
1.0
|
1.0
|
|
Discharge rate of compressed air
|
M3/mm
|
≥0.7
|
≥0.8
|
≥0.8
|
|
Cooling system
|
Water flowage
|
M3/h
|
3
|
3
|
4
|
|
|
Total rated power with mold heating
|
KW
|
21/25
|
34/38
|
45
|
|
Machine information
|
Dimension
|
M
|
3.1×1.2×2.2
|
3.5×1.4×2.3
|
4×1.28×2.35
|
|
machine weight
|
Ton
|
4.0
|
6.0
|
7.5
|
Machine Advantages
Injection blow molding is a kind of blow molding method which combines injection molding with blow molding. Firstly, the mold with bottom is produced by injection molding, and then the mold is transferred to the blow mold for blow molding. Injection blow molding is the first step to produce the mold embryo. The injection agent injects the melt into the injection mold with the blowing core tube to form the mold embryo with the bottom, and then transfers it to the blowing mold of the blowing station through the mechanical device for blowing; After that, the mold is inflated, the blow mold is closed, and the compressed air is introduced into the mold through the mandrel air hole. The mold is tightly fitted with the blow molding cavity under the action of air pressure, and then transferred to the demoulding station after cooling; Finally, the product is demoulded. At the demoulding station, the product is ejected from the mandrel or directly sent to the packaging position, and then the next cycle of production is carried out.
In the production of the same product, injection blowing and extrusion blowing have inherent advantages, such as no flash, no waste, accurate size, high production efficiency of three-step method, three working positions working at the same time, no need to wait in neutral position; With the conveyor belt, the testing equipment can directly enter the packaging station, with a high degree of automation. Therefore, a conclusion can be drawn: in the range of packaging bottles, the injection blowing process can improve the production efficiency and reduce the production cost.
our own engineers team, we have more then 18 years experience in this field.
1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.
2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.
Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.

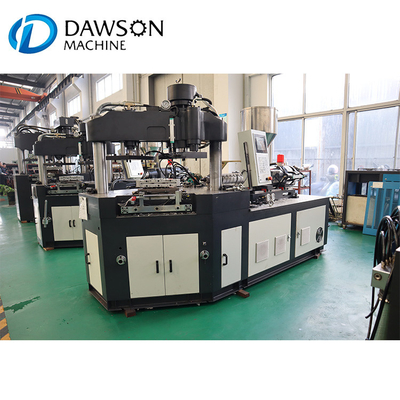

Professional Workshop
Our Professional Injection Blow Molding Machine Workshop...
Company Profile
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
|
|
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
