Water bottle PET blow molding machine
!! HIGH SPEED !!

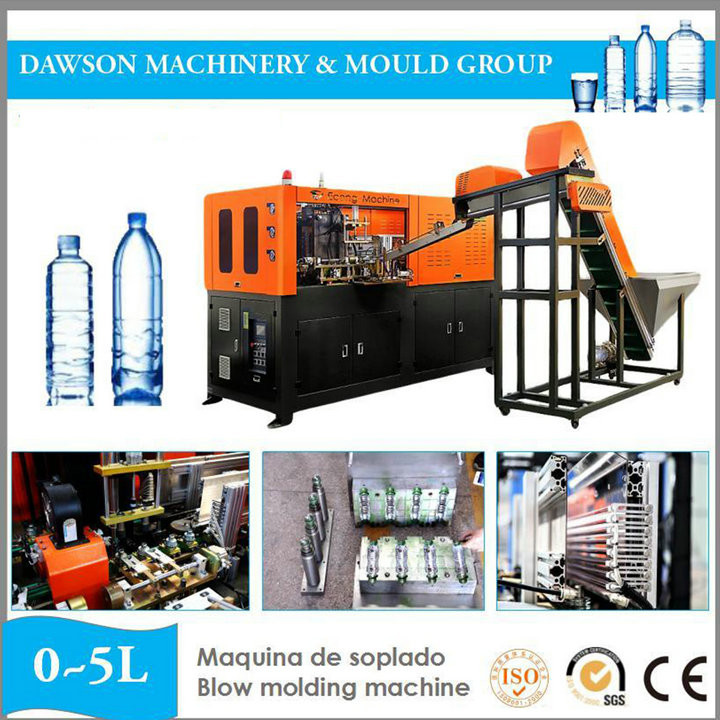

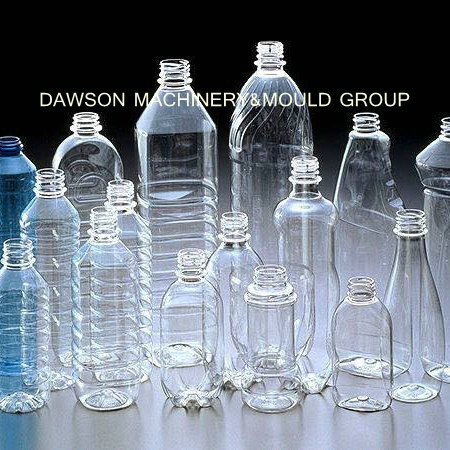

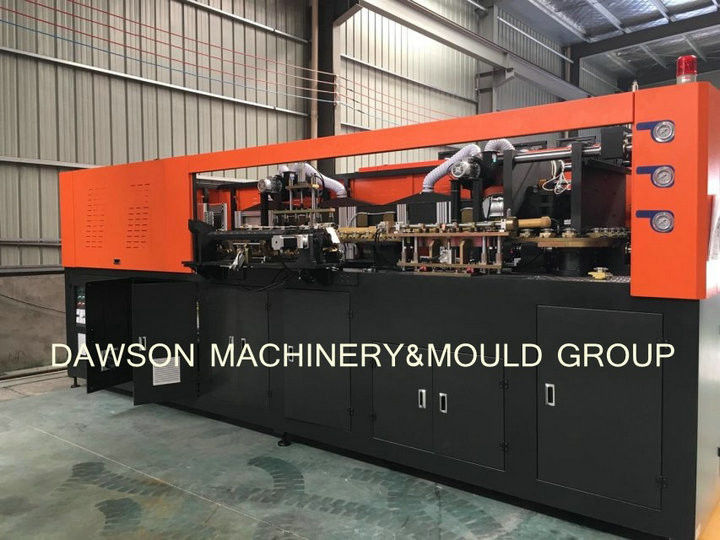

YCQ Water bottle blow molding machine with 2~8 cavities is specially designed to produce water bottole, PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.
In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, YCQ plays a big role in hot filling package market.
Automatic Type Machine
|Productivity||Depend on bottle design||2400-3000PCS/H||3500-4500PCS/H||5500-6500PCS/H||8000-9000PCS/H|
|Main machine power||Electrical source power||380V/220V 50/60HZ||380V/220V 50/60HZ||380V/220V 50/60HZ||380V/220V 560/60HZ|
|Really use power||6.5kw||13kw||25kw|
|Air system||HP air compressor||1.6m³/min3.0Mpa||3.0m³/min3.0Mpa||6.0m³/min3.0Mpa||6.0m³/min3.0Mpa|
|LP air compressor||1.0m³/min1.0Mpa||1.6m³/min1.0Mpa||2.0m³/min1.0Mpa||23.0m³/min1.0Mpa|
|Cooling water||Water Chiller||3HP||3HP||5HP||8HP|
|Mould||Number of cavities||/||1||2||4||1|
|Mould piate dimension(L*H)||mm||490*470||490*405||490*405||620*620|
|Mould opening stroke||mm||220||180||180||380|
|Machine||Main body dimension(L*W*H)||m||1.5*0.65*2.0||1.5*0.65*2.0||1.5*0.65*2.0||2.1*0.75*1.6|
|Main body weight||kg||600||550||550||900|
A. Stable performance with advanced PLC.
B. Conveying preforms automatically with conveyor.
C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
F. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
H. Strong clamping force with high pressure and double crank links to lock the mold.
I. Two ways of operating: Automatic and manual.
J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
L. Contamination is avoided for the bottle body.
M. Ideal effect of the chilling with the chilling system.
N. Easy installation and starting.
O. Low rejection rate: Less than 0.3percent.
|Moulding Closing and Opening Cylinder||Festo||Germany|
When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
The sample service
1.We can send you the video of the running machine.
2.You are welcome to come to visit our factory,and see the machine running.
1.We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly
2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.
3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
4.We provide one year warranty
5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese
6 .24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
7 .12 Months guarantee and life-long technical support.
8.Your business relationship with us will be confidential to any third party.
9. Good after-sale service offered, please get back to us if you got any questions.
We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.
If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
