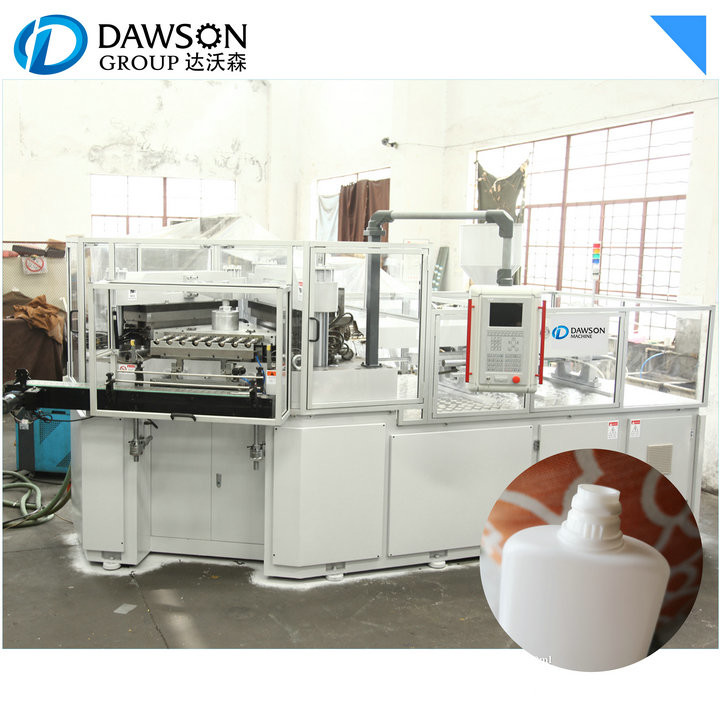

Multi Cavity High Productivity Injection Blow Molding Machine

Minimum Order Quantity : 1 set Price : US $25,000-32,000/ Set
Packaging Details : Standard Export Packing Delivery Time : 35-45 working days
Payment Terms : L/C, T/T Supply Ability : 20-30 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: IBM35D

Detail Information

Model NO.: IBM35D More Application: Milk & Yogurt Bottle
Pneumatic Valve Connector: Festo Ex Germany. Controlling System: Act Technologies
Molded Case Circuit Breaker, Contactor,: Scheider Brand Ex France. Machine Weight: 4 Ton
Max. Theoretical Injection Capacity: 176g Clamping Force Of Blowing: 40 Kn
Trademark: DAWSON Specification: IBM35D
HS Code: 8477301000 Application: Eye Dropper, Medicine Bottle, Chemical Bottle
Oil Pump And Hydraulic Valve: Yuken Brand Ex Japan. Oil Seal: Valqua Brand Ex Japan.
Electronic Rulers: Italy Gefran Motor Power: 11/15 Kw
Screw Diameter: 40mm Clamping Force Of Injection: 350 Kn
Opening Stroke Of Mold Platen: 120mm Transport Package: Film Packing
Origin: Jiangsu Zhangjiagang
High Light:

4Ton IBM Injection Blow Molding Machine

,

3 heating area IBM Injection Blow Molding Machine

,

PETG bottle injection molding machine

Product Description

Multi Cavity High Productivity Injection Blow Molding Machine

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

Injection Blow Molding Machine IBM35D

INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS

Item   Unit Date
Injection system Screw Diameter mm 40
Max. Theoretical injection capacity G 176
Heating capacity KW 7.2
No. of heating area Qty 3
Clamping & blowing system Clamping force of injection kn 350
Clamping force of blowing kn 40
Opening stroke of mold platen mm 120
Max. Platen size (L×W) mm 420×340
Min. Mold thickness (H) mm 180
Heating capacity of mould KW 2.8
Product dimension range Suitable bottle range ml 3-800
Max. bottle height mm ≤180
Max. Dia. of bottle mm ≤80
Dry cycle s 4
Hydraulic driving system Motor power KW 11/15
hydraulic pressure Mpa 14
Pneumatic system Min. Air pressure Mpa ≥0.8
Discharge rate of compressed air M3/mm ≥0.7
Cooling system Water flowage M3/h 3
  Total rated power with mold heating KW 21/25
Machine information Dimension M 3.1×1.2×2.2
machine weight Ton 4.0
Feature

* Excellent plasticizing unit



* Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



* Servo rotary, precise, long using time, easy maintenance, save energy.



* Optional injection with all-electric way, replacing hydraulic way * CE certificate


Configuration of Injection Blow Molding Machine

* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.

* Pneumatic valve connector: FESTO Ex Germany.

* Oil seal: VALQUA brand Ex JAPAN.

* Controlling system: Act Technologies

* Electronic Rulers: Italy GEFRAN

* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
