3ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine

Minimum Order Quantity : 1 set Price : USD 40,000 ~ 80,000 / set
Packaging Details : Standard Export Packing Delivery Time : 5-8 weeks
Payment Terms : L/C, T/T, Western Union, MoneyGram Supply Ability : 200 sets / month
Place of Origin: CHINA Brand Name: DAWSON
Certification: CE Model Number: IBM35D

Detail Information

Screw Diameter: 40 Mm Shot Weight (theoretical): 176 G
Charging Barrel Heating Power: 7.2 KW No. Of Heating Zone: 3
Clamping Force Of Injection Mold: 350 KN Injection Mold Stroke: 120 Mm
Clamping Force Of Blow Mold: 40 KN Blow Mold Stroke: 120 Mm
Dry Cycle: 4 S Platen Size: 420*340 Mm
Min. Mold Thickness: 180 Mm Motor Power: 11/15 KW
Mold-heating Power: 2.8 KW Hydraulic Working Pressure: 14 MPa
Min. Air Working Pressure: 0.8 Mpa Product Volume Range: 3 ~ 600 Ml
Product Height: ≤175 Mm Product Dia.: ≤80 Mm
Machine Dimension: 3.1*1.2*2.2 M Machine Weight: 4 T
Warranty: 12 Months Blow Moulding Type: Injection Blow Moulding
Plastic Processed: PET,PP,PE,PC,PS After-sales Service Provided: Engineers Available To Service Machinery Overseas,commissioning And Training,Video Technical Support
Automatic: Yes Application: Bottle,medical,JAR,cosmetic
High Light:

LDPE IBM Injection Blow Molding Machine

,

20ML IBM Injection Blow Molding Machine

,

IBM35D Medicine Bottles pp molding machine

Product Description

3ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine



DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

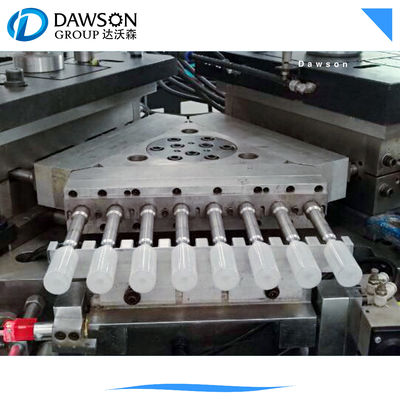

Injection Blow Molding Machine IBM35D

3ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 0

3ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 13ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 23ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 33ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 43ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 5

3ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 63ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 73ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 83ml ~ 1L Pharmaceutical Bottle Medicine Bottles Eye Dropper One Step IBM Injection BLow Molding Machine 9

INJECTION BLOW MOLDING MACHINE IBM35D PARAMETERS

Item   Unit Date
Injection system Screw Diameter mm 40
Max. Theoretical injection capacity G 176
Heating capacity KW 7.2
No. of heating area Qty 3
Clamping & blowing system Clamping force of injection kn 350
Clamping force of blowing kn 40
Opening stroke of mold platen mm 120
Max. Platen size (L*W) mm 420*340
Min. Mold thickness (H) mm 180
Heating capacity of mould KW 2.8
Product dimension range Suitable bottle range ml 3-800
Max. bottle height mm ≤180
Max. Dia. of bottle mm ≤80
Dry cycle s 4
Hydraulic driving system Motor power KW 11/15
hydraulic pressure Mpa 14
Pneumatic system Min. Air pressure Mpa ≥0.8
Discharge rate of compressed air M3/mm ≥0.7
Cooling system Water flowage M3/h 3
  Total rated power with mold heating KW 21/25
Machine information Dimension M 3.1*1.2*2.2
machine weight Ton 4.0



Feature

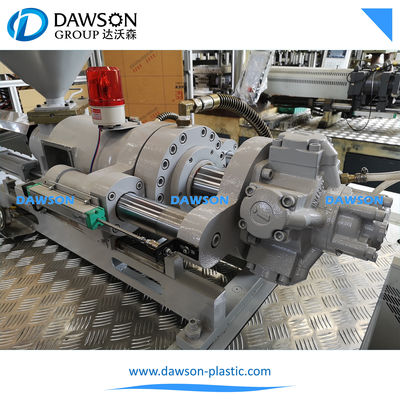

* Excellent plasticizing unit



* Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



* Servo rotary, precise, long using time, easy maintenance, save energy.



* Optional injection with all-electric way, replacing hydraulic way * CE certificate


Configuration of Injection Blow Molding Machine


* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.


* Pneumatic valve connector: FESTO Ex Germany.


* Oil seal: VALQUA brand Ex JAPAN.


* Controlling system: Act Technologies


* Electronic Rulers: Italy GEFRAN


* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
