| Brand Name: | DAWSON |
| MOQ: | 1 |
| Price: | USD 29800~39800 |
| Delivery Time: | 45-65 days |
| Payment Terms: | L/C, T/T |
Zhangjiagang dawson machine co ltd is a plastic machinery company.
Our biggest advantage is to stand from the customer's perspective, provide better service to customers, help them establish more professional production lines, save more costs for customers, and help them obtain more profits

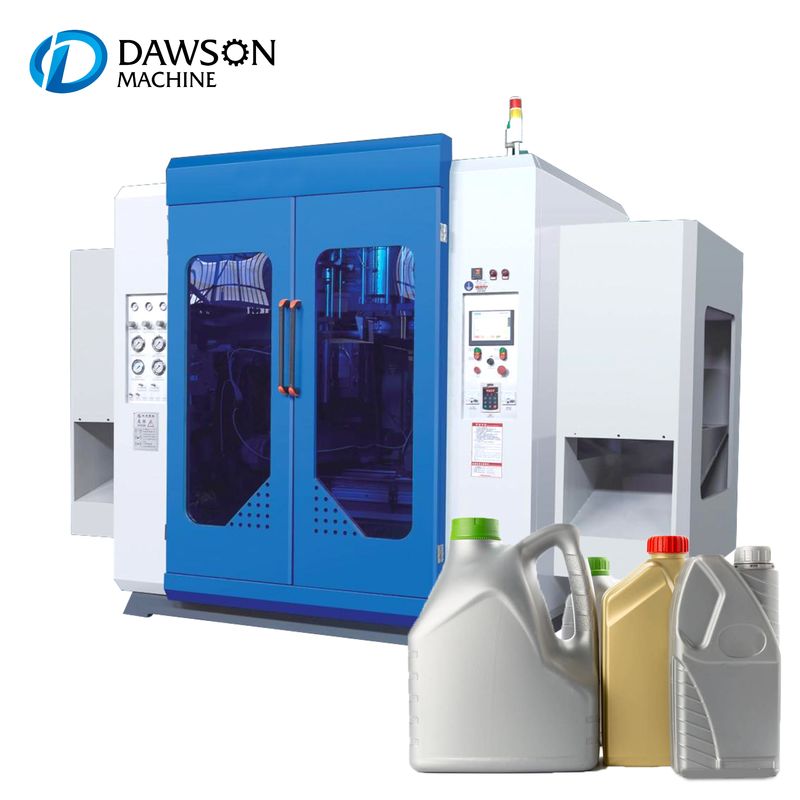

This machine mainly produces plastic bottles up to 10L, as well as ocean balls and other small plastic products.
According to the customer's needs, the machine can be set as single station or double station, single die head, double die head, the third mock examination head, four die head; Bottles can be produced in single layer, double layer, three layer, five layer, etc.
In addition, we can provide customers with services for the entire production line, including auxiliary machinery such as blow molding machines, molds, autoloader, crushers, mixers, chillers, air compressors, etc.
We are also equipped with various automated equipment such as leak detection machines, labeling machines, and cutting machines, in order to meet the reasonable needs of customers.
| Machine Model | Max. Bottle size | Production forecast | |
| ABLB65 | Double Station Double Head | 1L | 450~480 BPH |
| Double Station Single Head | 5L | 280~320 BPH | |
| Name | Units | ABLB65II | ABLB75II |
| Max.product volume | L | 3.5 | 8 |
| Screw diameter | MM | 65 | 75 |
| Screw drive power | KW | 18.5 | 22 |
| Output of HDPE | KG/H | 75 | 100 |
| Oil pump drive power | KW | 7.5 | 7.5 |
| Clamping force | KN | 65 | 80 |
| Max.size of mold | MM | 320×350 | 400×430 |
| Template size | MM | 290×320 | 380×420 |
| Mold stroke | MM | 150-500 | 170-520 |
| Max.die diameter | MM | 170 | 170 |
| Size of machine | L×W×H | 3.9×2.2×2.6 | 4.2×2.2×2.7 |
| Weight of machine | TON | 6.5 | 7.5 |
