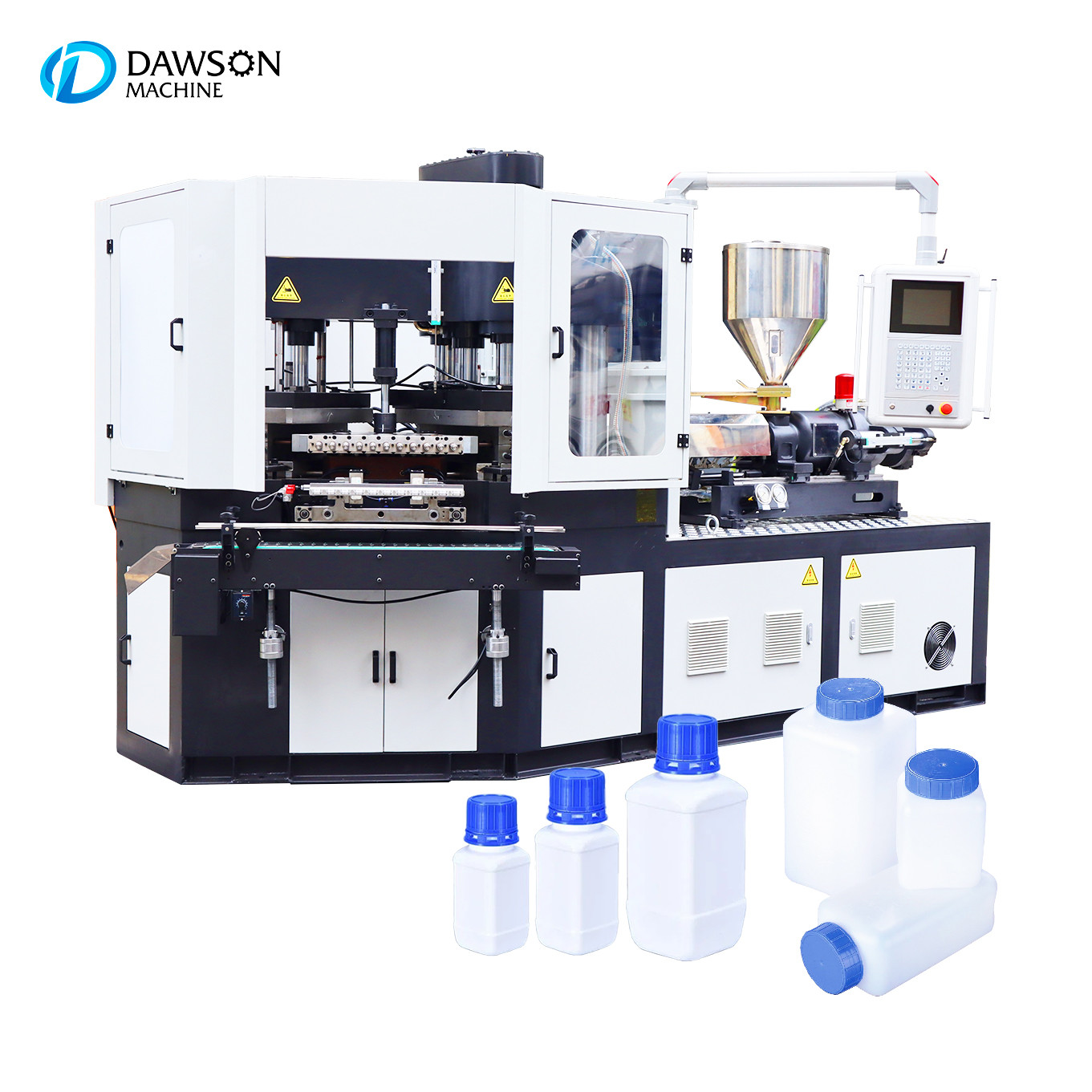

High speed Square cosmetic bottle machines small injection blow molding machine

1 set
MOQ
USD $28,900.00 - $66,800.00 per set
Price
High speed Square cosmetic bottle machines small injection blow molding machine
Features Gallery Product Description Request A Quote
Features
Specifications
Samples Provided: Provide Bottle Sample After Mold Test For Confirmation
Condition: New
Automatic: Full Automatic
Clamping Force: 100-500KN
Ejector Stroke: 50-150mm
Injection System: Injection Blow Molding
Machine Weight: 7000kg
Max. Daylight: 400-1000mm
Mold Opening Stroke: 200-400mm
Mold Thickness: 150-400mm
Motor Power: 35KW
Product Name: IBM Injection Blow Molding Machine
Screw Diameter: 20-50mm
Type: Injection Blow Molding Machine
Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Delivery Time: 55-65 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 set per month
Product Description

High speed Square cosmetic bottle machines small injection blow molding machine

Blowing machine is the best choice for square bottle production! Our injection molding machine adopts advanced technology and materials, which can produce sturdy and durable square bottles. Our injection blow molding machine also features high automation, improving production efficiency and reducing labor costs. Whether you are in the food industry, cosmetics industry, or other industries, choosing our blow molding machine ensures that your bottle quality is excellent and production efficiency is high!



DAWSON MACHINERY & MOULD GROUP

​High speed Square cosmetic bottle machines small injection blow molding machine 0

High speed Square cosmetic bottle machines small injection blow molding machine 1

High speed Square cosmetic bottle machines small injection blow molding machine 2 High speed Square cosmetic bottle machines small injection blow molding machine 3



Technical Parameters
Model
IBM35D
IBM45D
IBM65D
Item

Unit
Date
Injection system
Screw Diameter
mm
40
45
50
Max. Theoretical injection capacity
G
176
260
314
Heating capacity
KW
7.2
10
10
No. of heating area
Qty
3
3
3
Clamping & blowing system
Clamping force of injection
kn
350
450
650
Clamping force of blowing
kn
40
78
89
Opening stroke of mold platen
mm
120
120
140
Max. Platen size (L×W)
mm
420×340
560×390
740×390
Min. Mold thickness (H)
mm
180
240
280
Heating capacity of mould
KW
2.8
4.0
5.0
Product dimension range
Suitable bottle range
ml
3-800
3-800
5-800
Max. bottle height
mm
≤180
≤200
≤200
Max. Dia. of bottle
mm
≤80
≤80
≤80
Dry cycle
s
4


Hydraulic driving system
Motor power
KW
11/15
18.7/22
17
hydraulic pressure
Mpa
14
14
14
Pneumatic system
Min. Air pressure
Mpa
≥0.8
1.0
1.0
Discharge rate of compressed air
M3/mm
≥0.7
≥0.8
≥0.8
Cooling system
Water flowage
M3/h
3
3
4

Total rated power with mold heating
KW
21/25
34/38
45
Machine information
Dimension
M
3.1×1.2×2.2
3.5×1.4×2.3
4×1.28×2.35
machine weight
Ton
4.0
6.0
7.5

Machine Advantages

our bottle materials have changed from single glass or ceramics to various kinds of plastics. Drawing lessons from the long history of glass container blowing process, the extrusion or injection molding plastic mold in relativistic state is placed in the blowing mold, and the mold is inflated by a certain pressure of compressed air to make it close to the cavity wall. After cooling and setting, the mold is demolished to obtain the plastic hollow products with the same shape as the cavity. This is the hollow blow molding process we are familiar with.

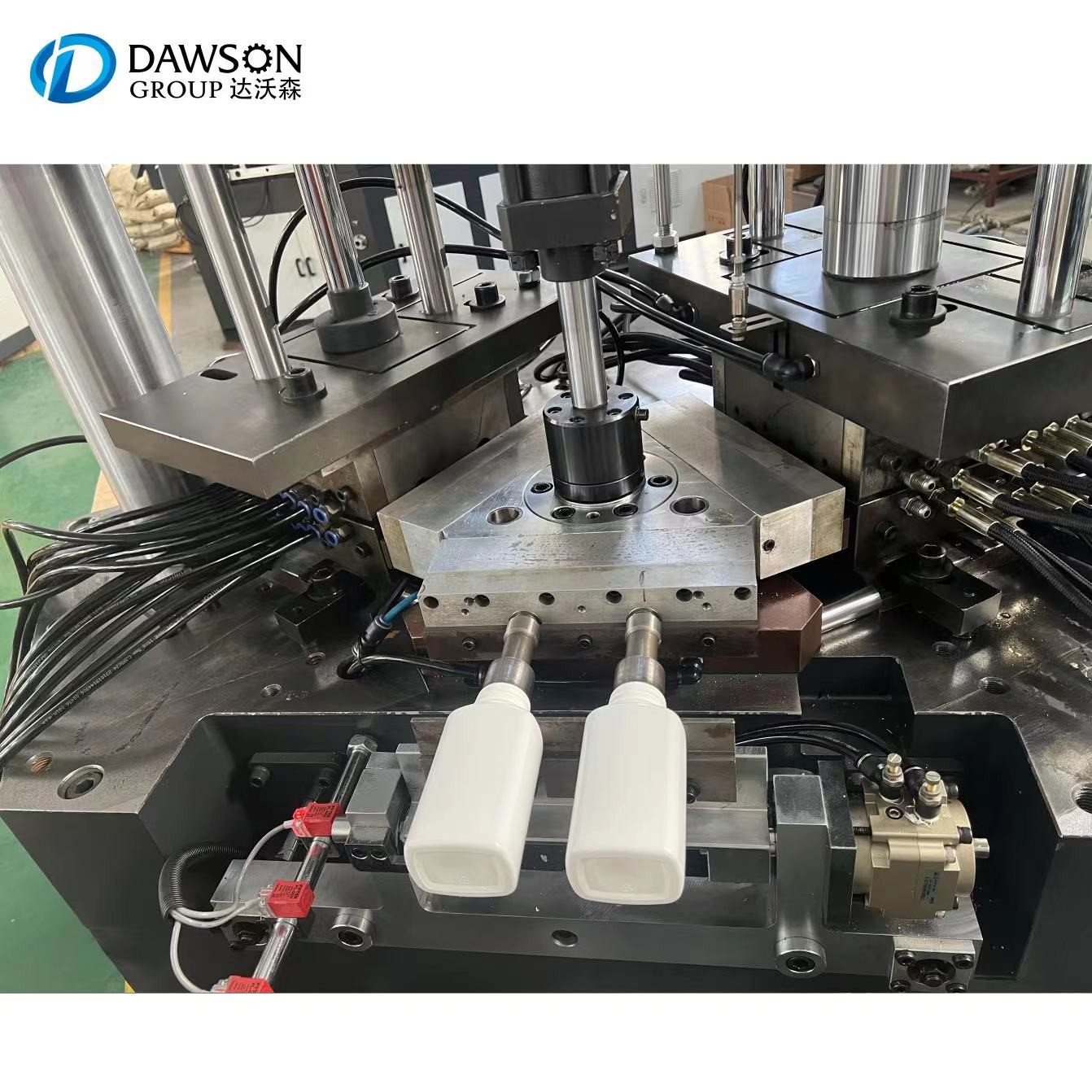

Dawson injection blow molding machine is equipped with professional injection system and precision control system, which can meet the requirements of high-speed opening and closing mold, high clamping force and uniform distribution of clamping force at each position of the mold. The three position rotary lifting system can rotate 120 ° to make the three positions of injection molding, blow molding and demoulding run continuously and smoothly. At the same time, due to the use of hydraulic drive linkage mechanism, the positioning of the machine is more accurate, the maintenance cost is lower, and it is more rapid and stable. The demoulding station cooperates with the conveyor belt to realize automatic demoulding, automatic counting and automatic packaging. The whole process avoids manual contact, so that the products produced by the machine can meet the stringent requirements in the field of medicine and health.

High speed Square cosmetic bottle machines small injection blow molding machine 4 High speed Square cosmetic bottle machines small injection blow molding machine 5

our own engineers team, we have more then 18 years experience in this field.


1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.

2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.



High speed Square cosmetic bottle machines small injection blow molding machine 6

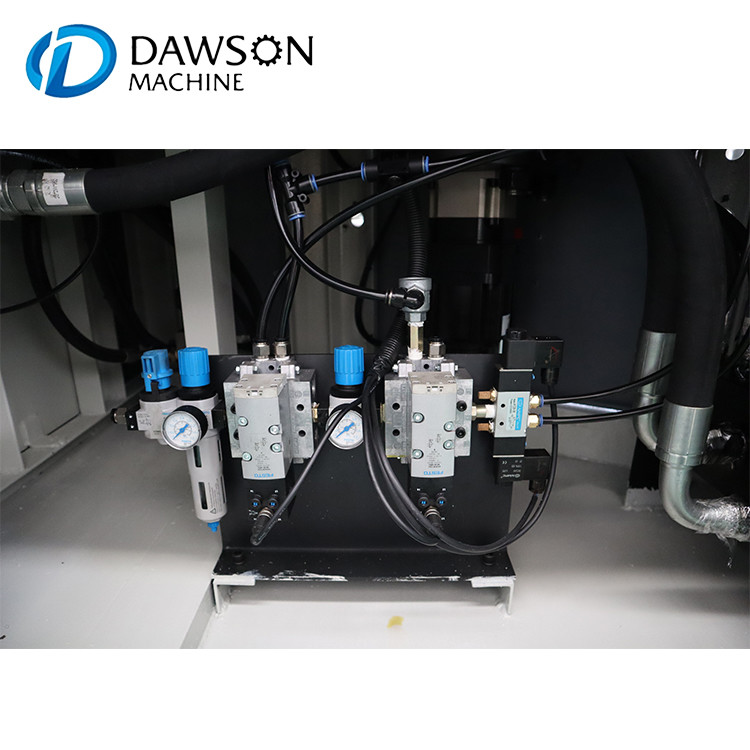

 Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.

High speed Square cosmetic bottle machines small injection blow molding machine 7

High speed Square cosmetic bottle machines small injection blow molding machine 8

Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.

High speed Square cosmetic bottle machines small injection blow molding machine 9

Professional Workshop



Our Professional Injection Blow Molding Machine Workshop...
High speed Square cosmetic bottle machines small injection blow molding machine 10
High speed Square cosmetic bottle machines small injection blow molding machine 11
Company Profile
High speed Square cosmetic bottle machines small injection blow molding machine 12
DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos



We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
High speed Square cosmetic bottle machines small injection blow molding machine 13 High speed Square cosmetic bottle machines small injection blow molding machine 14 High speed Square cosmetic bottle machines small injection blow molding machine 15
High speed Square cosmetic bottle machines small injection blow molding machine 16 High speed Square cosmetic bottle machines small injection blow molding machine 17 High speed Square cosmetic bottle machines small injection blow molding machine 18
High speed Square cosmetic bottle machines small injection blow molding machine 19 High speed Square cosmetic bottle machines small injection blow molding machine 20 High speed Square cosmetic bottle machines small injection blow molding machine 21 High speed Square cosmetic bottle machines small injection blow molding machine 22
High speed Square cosmetic bottle machines small injection blow molding machine 23 High speed Square cosmetic bottle machines small injection blow molding machine 24 High speed Square cosmetic bottle machines small injection blow molding machine 25 High speed Square cosmetic bottle machines small injection blow molding machine 26

High speed Square cosmetic bottle machines small injection blow molding machine 27

High speed Square cosmetic bottle machines small injection blow molding machine 28

FAQ


Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
