Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine

1 set
MOQ
USD $28,900.00 - $66,800.00 per set
Price
Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: 5ml To 1000ml Small Plastic Bottle
Blow Molding Type: Injection Blow Molding
Core Component: Gearbox, Pump, Gear, Bearing, Engine, Motor, PLC...
Suitable Materials: PP, HDPE, PVC, PPR, PE, ABS/PP, PE/PP
High Light:

small ibm injection blow molding machine

,

hdpe ibm injection blow molding machine

,

medicine bottle ibm blow moulding machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Delivery Time: 55-65 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 set per month
Product Description

Plastic Small Round Bottle Medicine Bottle Injection Blow Molding Machine



Injection blow molding is the first step to produce the mold embryo. The injection agent injects the melt into the injection mold with the blowing core tube to form the mold embryo with the bottom, and then transfers it to the blowing mold of the blowing station through the mechanical device for blowing; After that, the mold is inflated, the blow mold is closed, and the compressed air is introduced into the mold through the mandrel air hole.





IBM machine suitable for processing small plastic bottles from 5ml to 1L, especially suitable for manufacturing cosmetics, daily necessities, medicine and food packaging bottles.



DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

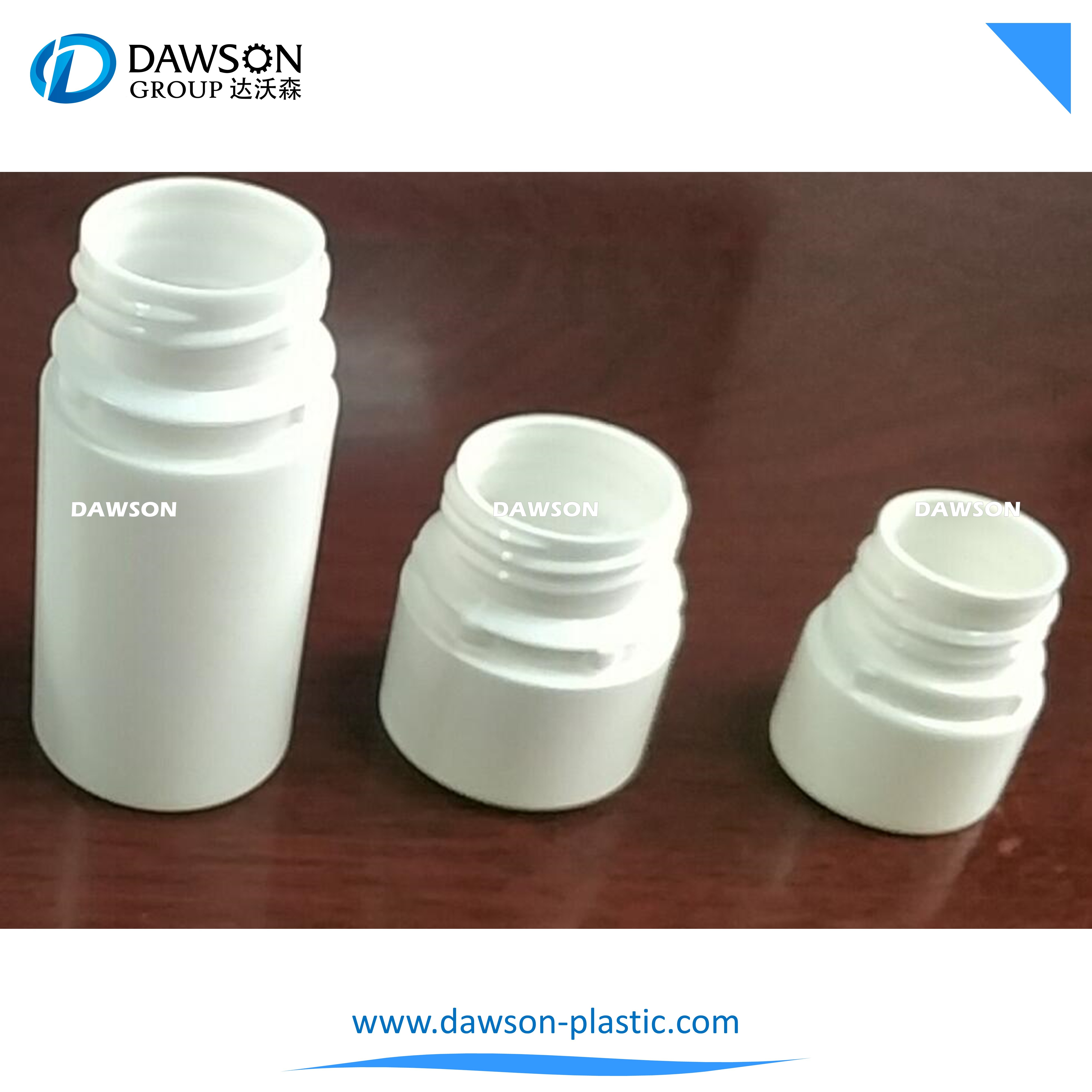

Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine 0

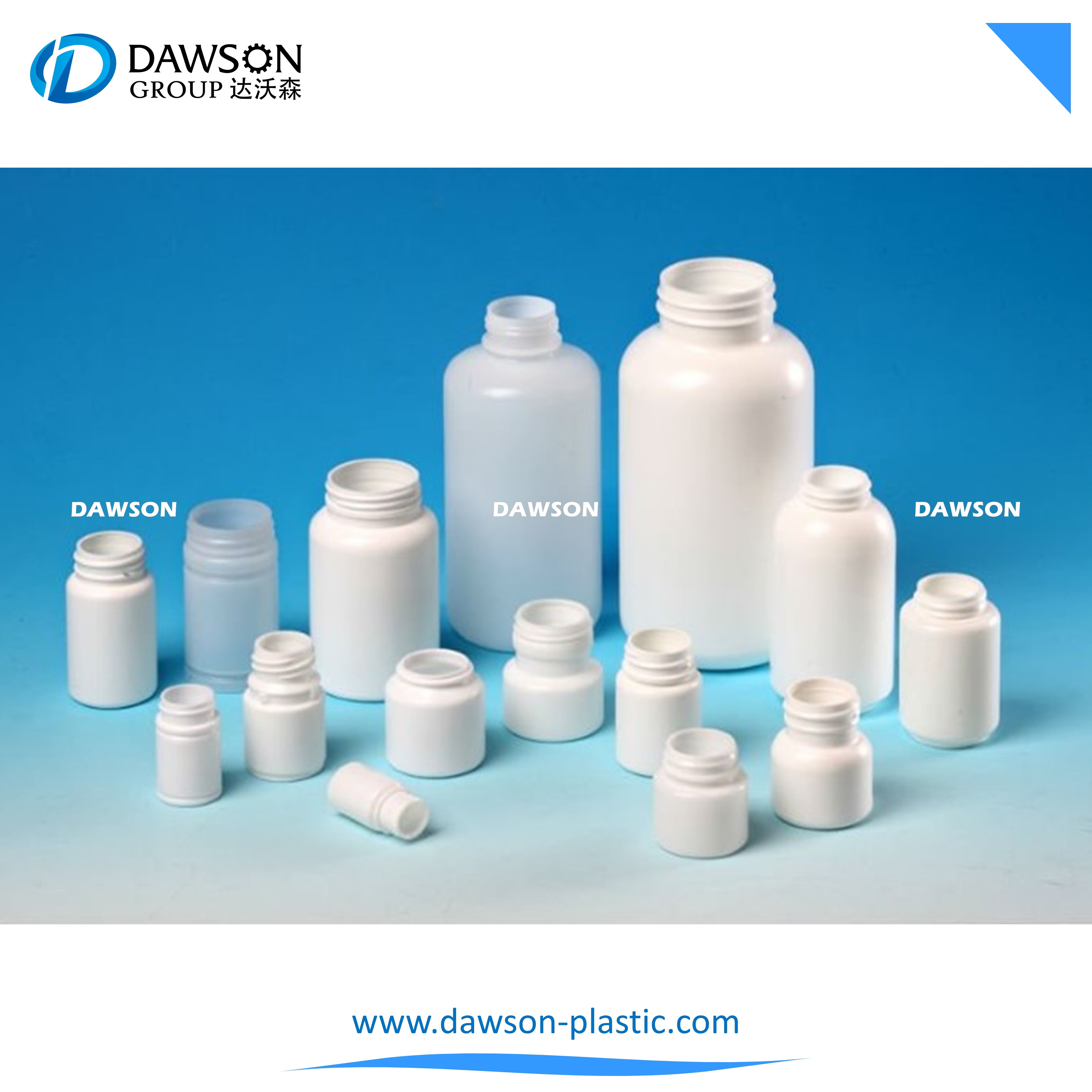

Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine 1

Item Unit Data
Injection system Screw Diameter mm 50
Max. Theoretical injection capacity G 314
Heating capacity KW 10
No. of heating area Qty 3
Clamping & blowing system Clamping force of injection kn 650
Clamping force of blowing kn 89
Opening stroke of mold platen mm 140
Max. Platen size (L×W) mm 740×390
Min. Mold thickness (H) mm 280
Heating capacity of mould KW 5.0
Product dimension range Suitable bottle range ml 5-800
Max. bottle height mm ≤200
Max. Dia. of bottle mm ≤80
Hydraulic driving system Motor power KW 17
hydraulic pressure Mpa 14
Pneumatic system Min. Air pressure Mpa 1.0
Discharge rate of compressed air M3/mm ≥0.8
Cooling system Water flowage M3/h 4
  Total rated power with mold heating KW 45
Machine information Dimension M 4×1.28×2.35
machine weight Ton

7.5




































Feature


* Excellent plasticizing unit



* Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



* Servo rotary, precise, long using time, easy maintenance, save energy.



* Optional injection with all-electric way, replacing hydraulic way * CE certificate


Configuration of Injection Blow Molding Machine



* Oil pump and hydraulic valve (Directional Valves, Power saving valves, Pilot operated check modular valves, and Throttle check modular valves): YUKEN brand Ex JAPAN.


* Pneumatic valve connector: FESTO Ex Germany.


* Oil seal: VALQUA brand Ex JAPAN.


* Controlling system: Act Technologies


* Electronic Rulers: Italy GEFRAN


* Molded case circuit breaker, contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.

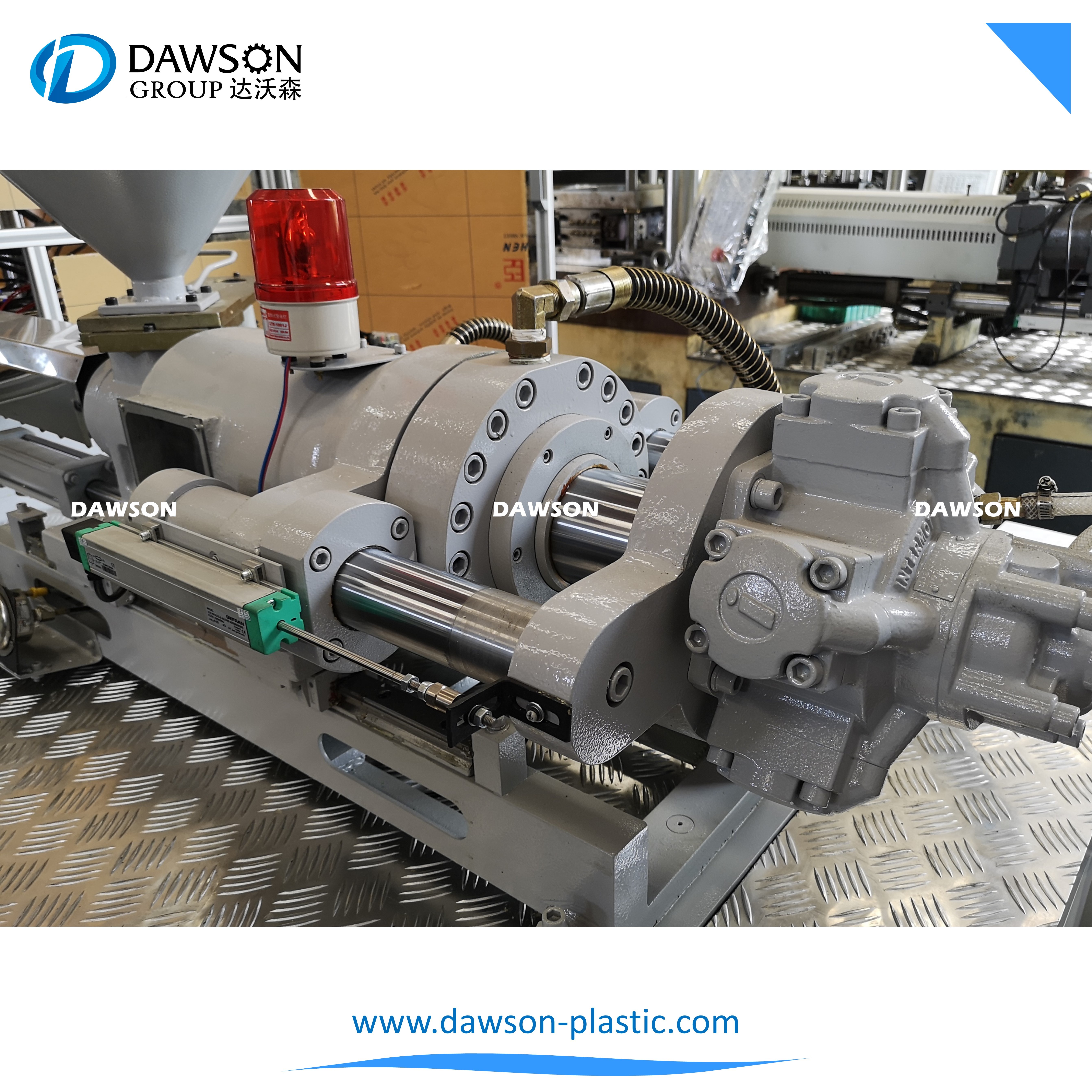

Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine 2

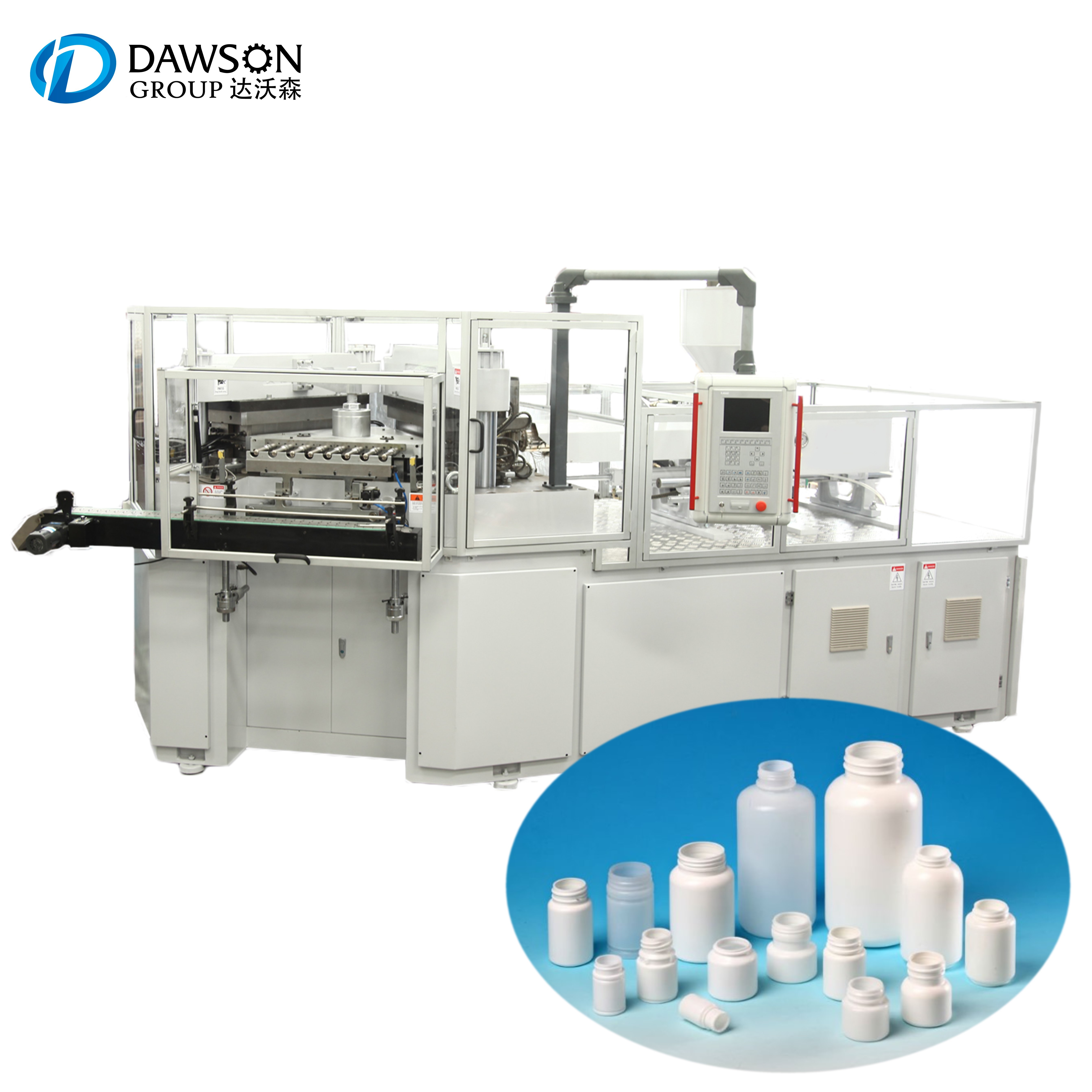

Plastic Small Round Bottle Medicine Bottle Ibm Injection Blow Molding Machine 3
