One Station Small Hdpe Bottle Blowing Machine Automatic Extrusion Blow Molding Machines 20 Liter
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
We already served customers from all around the world, such as Colombia, Venezuela, Peru, Guatemala, Ecuador, Saudi Arabia, UAE, Romania, Russia, Thailand, Philippines, South Africa, Tunisia, Algeria, Ethiopia, etc.
Products Description
DAWSON MACHINERY & MOULD GROUP

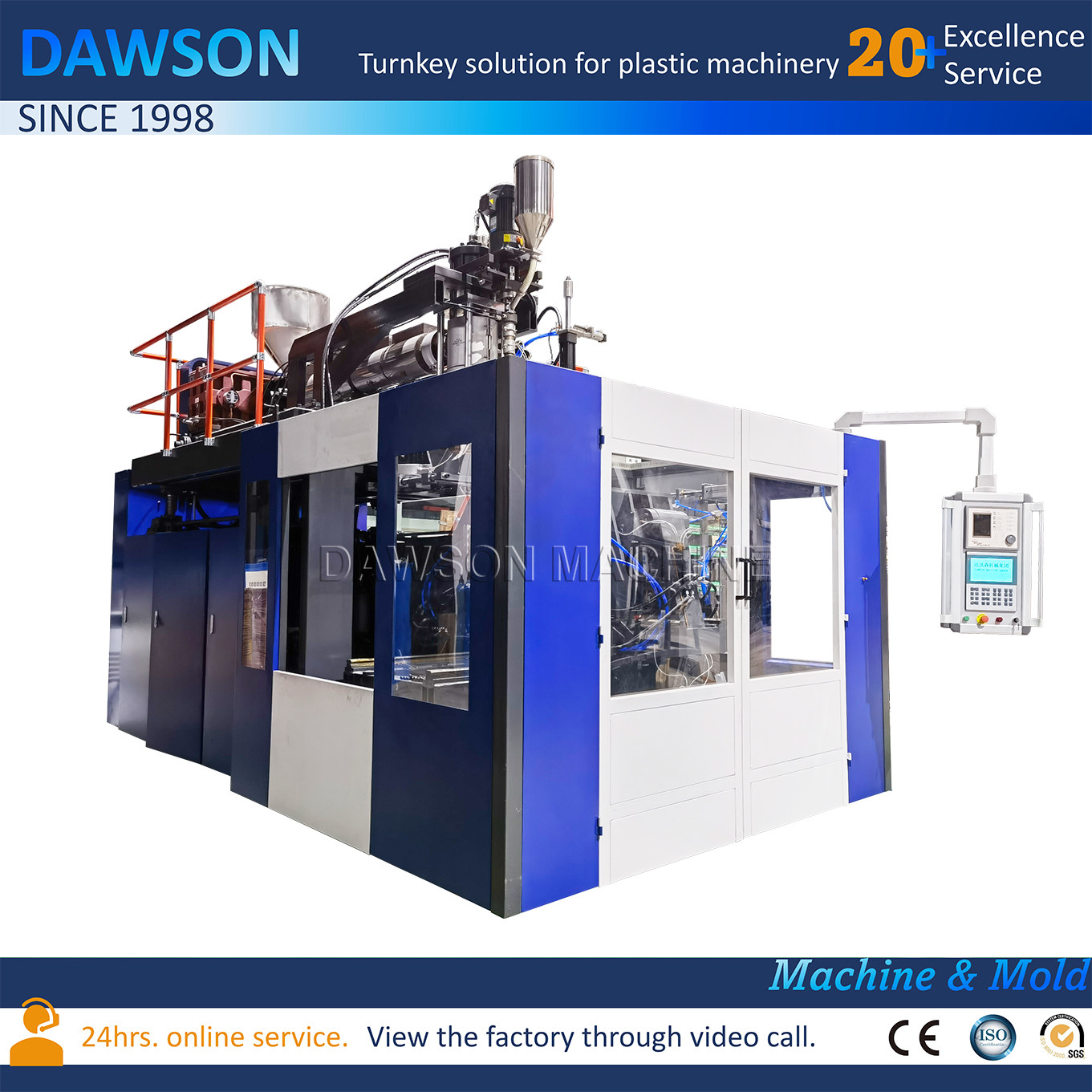

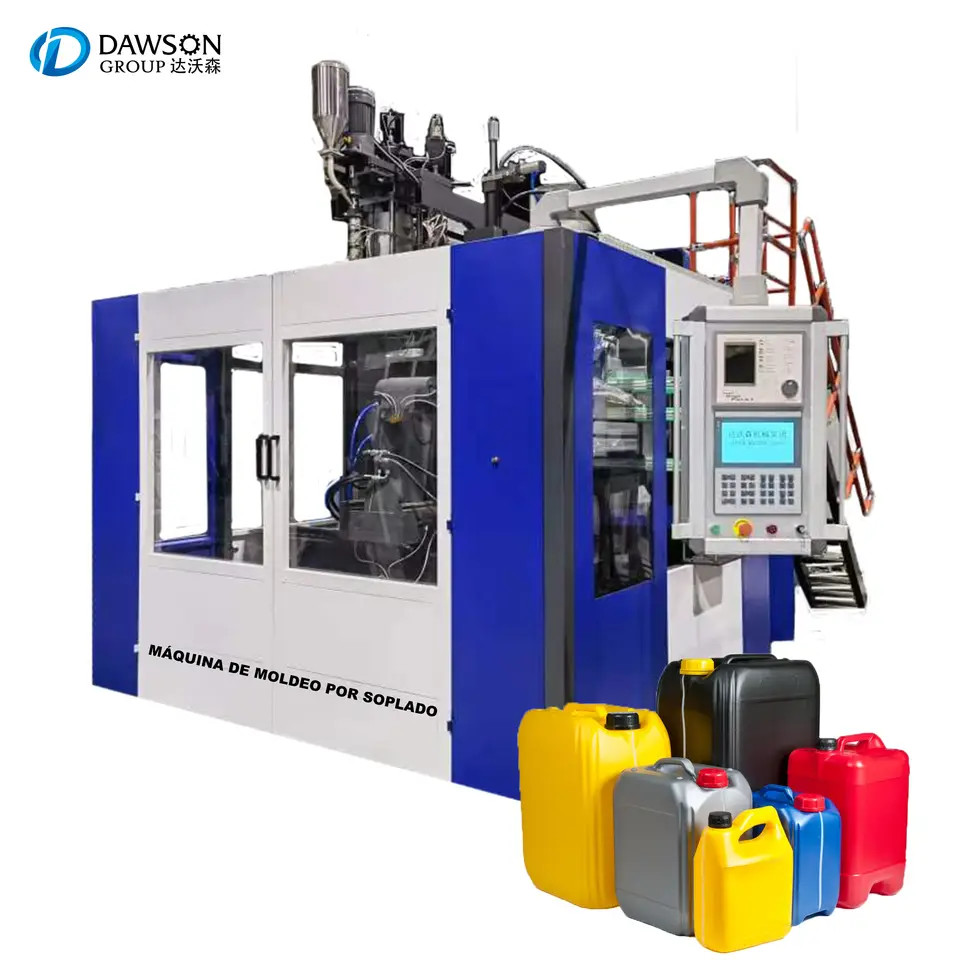

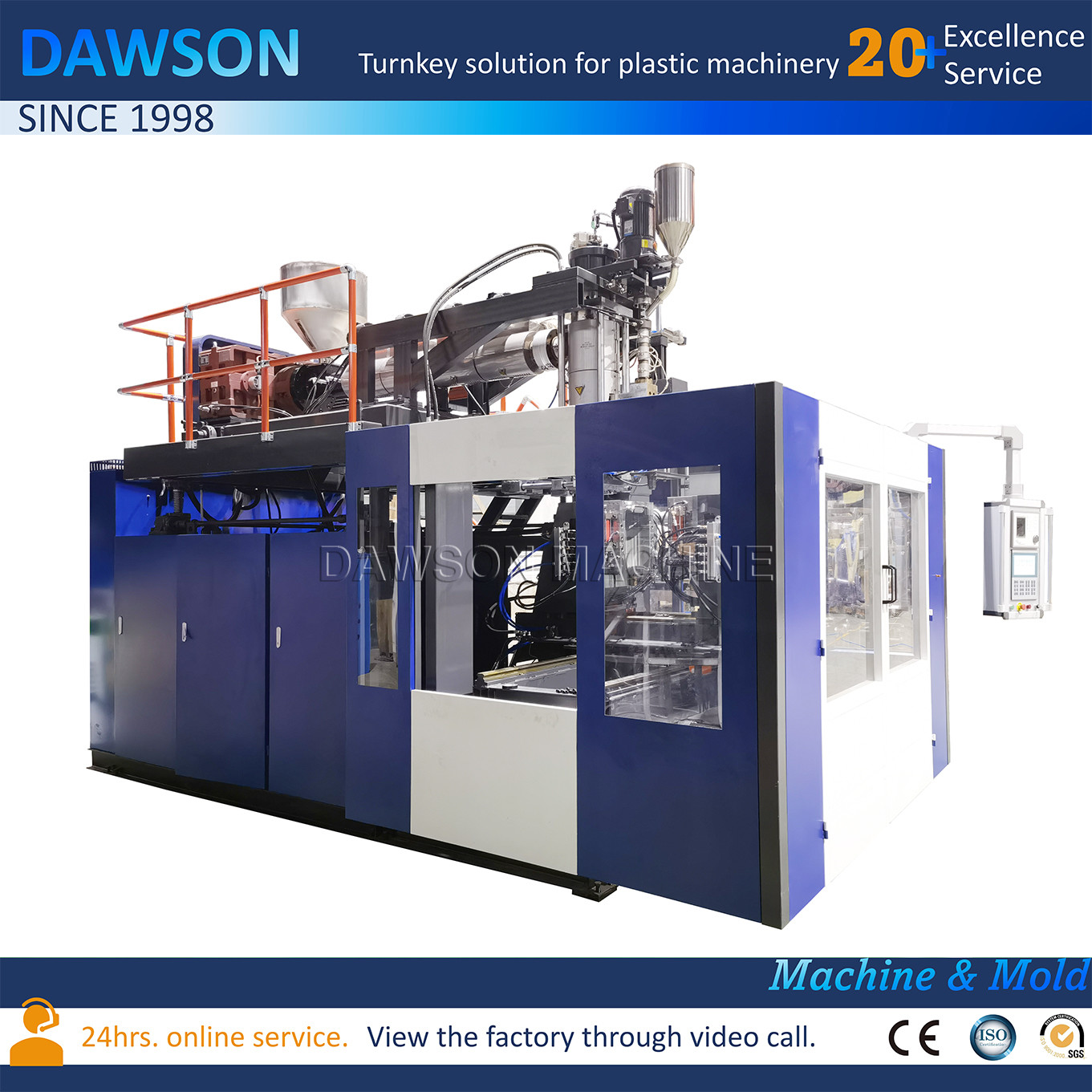

Single Station Single Die Head Extrusion Blow Molding Machine DSB80-30

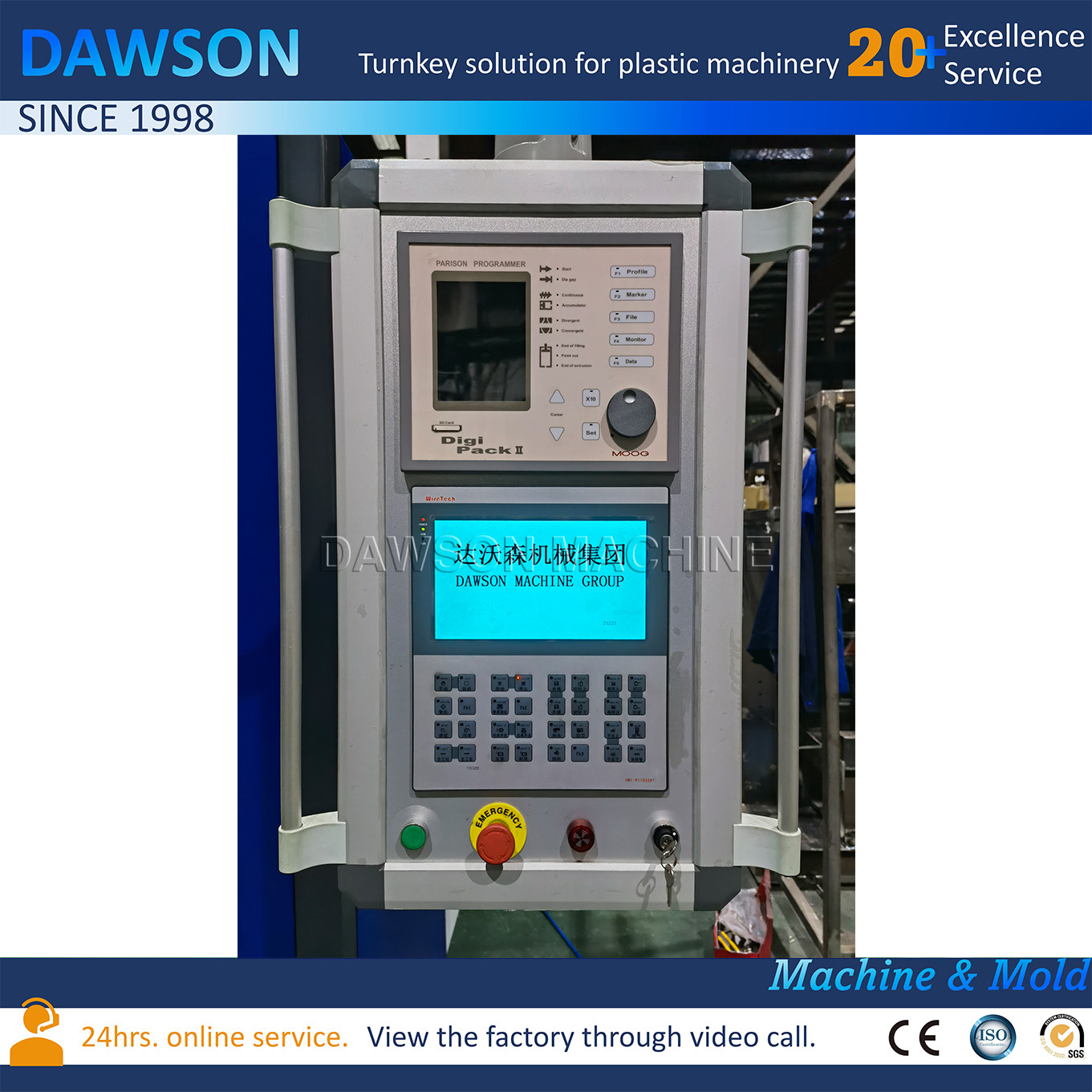

This extrusion blow moulding machine is suitable for making 10-30 liters jerrycans. The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.
Can be equipped with liquid level line configuration if you want to produce lubricant oil jerrycans. And also have single layer, double layer and triple layer configuration to meet your demand. For the mould, can be equipped with auto-deflashing, also can be equipped with manual removing the scraps.
Technical Specification
|
Name
|
Units
|
DSB80-30L
|
|
Max.product volume
|
L
|
30L
|
|
Screw diameter
|
MM
|
80
|
|
Screw drive power
|
KW
|
37
|
|
Output of HDPE
|
KG/H
|
120
|
|
Oil pump drive power
|
KW
|
22
|
|
Clamping force
|
KN
|
250
|
|
Max.size of mold
|
MM
|
600× 630
|
|
Template size
|
MM
|
550×680
|
|
Mold stroke
|
MM
|
400-900
|
|
Size of machine
|
L×W×H
|
3.6×2.8×2.8
|
|
Weight of machine
|
TON
|
10
|
|
High Quality Mould
The mold is a very important part in the plastic container blow molding process. A good quality extrusion blow mould can make the product production with higher efficiency, and moulds that are through find machining, and water ways, can also make the finished product with beautiful surface.
Our own mould manufacturing workshop, using high configuration equipment and we have engineers with more than 16 years of technical experience, who has the qualification to customize blow molding moulds for you.
- Using stainless steel S136H or Aluminium alloy 7075# as mould cavity material- And neck plate using heat treatment to HRC62 hardness JAPAN DC53.
- Double neck design for you to easy and fast change in future, no need to communicate with us and wait us to send the neck.
- Moulds, we can make with auto-deflashing or manual deflashing according to your different demands
- Perfect mould cooling water way design, can enable better mould cooling preformace
- 2D & 3D product drawing available for customers to confirm the drawing
- Before delivery, we will send samples for customer's check and confirm the product effect.
- We ever made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Customers' Satisfaction
We committed to provide customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
|
|
|
Q: Do you provide any spare parts with machine?
Yes, we will put all necessary spare parts together with the machine when delivery.
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
|
