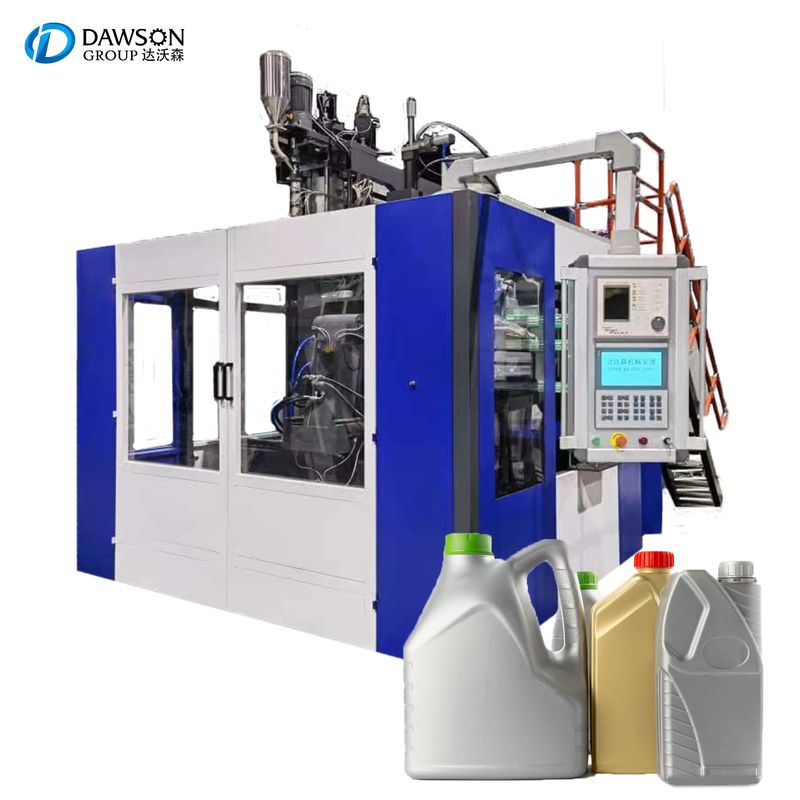

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles

1 set
MOQ
23800 USD/PCS
Price
Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Bottles, Jars, Jerry Cans, Gallons, Containers
Auto-Deflashing: With Auto-Deflashing
Mould: One Cavity Or Two Cavity
Sutiable: 0~5L Bottle
Made In: China
Plasticization: 100kg/H
Heating Power: 4.8t
Cooling Fan: 3-4zone
Water Flow: 80L/Min
High Light:

Oil Bottles Extrusion Blow Moulding Machine

,

Auto Deflashing Bottles Blow Moulding Machine

,

5L Square Bottles Blow Moulding Machine

Basic Infomation
Place of Origin: China
Brand Name: EBM
Certification: CE
Model Number: ABLB65
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C
Supply Ability: 25 pieces per month
Product Description

Plastic Bottles High Speed Extrusion Blow Molding Machine

Specializing in the production of blow molding equipment, mainly used for blowing laundry bottles, oil barrels, milk barrels, feeding bottles, medical bottles, detergent barrels and other bottle-shaped plastic products.

Blow molding machine can be divided into three categories: extrusion blow molding machine, injection blow molding machine and special structure blow molding machine. Stretch blow molding machines can fall into each of the above categories.

Extrusion blow molding machine is a combination of extruder, blow molding machine and clamping mechanism, which consists of extruder and parison die head, blowing device, clamping mechanism, parison thickness control system and transmission mechanism.






asic parameters Suitable material PE.PP,PVC,PS,PETG,so on
Max volume 5L (Single head)
Output capacity 220~240 pcs/h
Size 3.8*2.3*2.5(M)
Weight 4.8T
system Specification Parameters Note
Plasticizion system
Summarize High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
Reducer Material of Gear box body: HT200
Material of gear: ZG35CrMo
Material of bearing: 42CrMo
Heat treatment of Gear: Quenching
Brand: GuoTai
(The best Gearbox supplier in China)
Screw 75mm,L/D ratio 25/1,
Material: 38CrMoALA
Nitriding heat-treatment
Cooling by cooling Fan
Cooling system available
Plasticization 100Kg/H HDPE
Heating Zone 3-4 Aluminum Heater Automatic heating
Heating power 4KW/H
Extrusion Motor Three phase asynchronous motor (380V,50HZ) 30HP Brand: Siemens
Cooling Fan 3-4zone Automatic cooling


Extrusion system

Summarize High-grade alloy steel, center feeding
Avaible to change to double die head or thriple die heads
Die head number Single head for 5L / double head for 1L
Center distance of die heads 130mm or 160mm for Double die head
75mm or 80mm for Four die head
Die head Material of the die Head:38CrMoAlA+40Cr+45# Steel
Die head corn mirror degree
We provide complete set die for each sample free
Heating 3-4 Stainless steel heating cycle
With Plug type heater
High quality thermocouple for temperature checking
Plug type heater more easy and convinient for changing die heads
Heating power 3~5KW
Clamping system Automatic Lubricant system for clamping system
Clamping force 80KN
Template distance 150~560mm
Max mould size 400X450mm
Platen moving stroke 520mm
Lubrication Equiped with automatic lubrication system























Electric system
Summarize PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) SIEMENS or MITSUBISHI PLC
System + TOUCH SCREEN
Operate interface Touch screen, automatic self-diagnose alarm system

Temperature control Automatic temperature control module SIEMENS OR MITSUBISHI MODULE
Electrical parts Schneider electricals & Omron relay
Electric protection Ampere overload, electric short circuit self-protection function
Parison controller JAPAN MOOG 100 points parison controller + Moog servo Valve + stainless oil tank + oil pipes & fittings
(Optional : 10500 USD/ complete set if needed )

Invertor DELTA (TAIWAN) 380V50HZ
One for main screw + another for lever line screw

Hydraulic system Summarize Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor Three phase asynchronous motor (380V,50HZ) 7.5kw
Oil pump Imported double pump
Valves JAPAN YUKEN Hydraulic valves
YUKEN Hydrulic valve
Precision control
More safe and easy to operate and maintenance
Also YUKEN series avoid any leakage problem both inner or outter, which makes the all operation reliable and safe.
O-sealings
High quality O-sealings
We provide spare parts for each sealings
Oil pipes Double layer overpressure resistant
System pressure LP 100 bar / HP 130 bar
Threads of hydraulic block use of screw joint GE(ISO 1179)

Cooling system Separate water cooling cycle, oil cooler cooling system
High quality Oil cooler

Pneumatic system Summarize Taiwan AIRTAC pneumatic system
Air pressure 0.8Mpa
Air displacement 0.8M3/min
Electromagnetic valve AIRTAC
Cooling system Summarize Separate cooling system of mould, barrel and oil system
Cooling medium Water
Water flow 80L/min
Water pressure 0.3-0.6MPa

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 0


Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 1

B

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 2



Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 3

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 4

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 5



Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 6

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 7

Plastic Oil Bottles Extrusion Blow Moulding Machine High Speed 5L Square Bottles 8

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
