| SPECIFICATIONS | UNITS | DSB90II |
| Station | double | |
| Max product volume | L | 10 |
| Number of die heads | Set | 1/2/3/4/6 |
| Dry cycle | PC/H | 700*2 |
| Machine dimension (L*W*H) | M | 4.4*2.2*2.7 |
| Total weight | Ton | 11 |
| CLAMPING UNIT | UNITS | DSB90II |
| Clamping force | KM | 160 |
| Platen opening stroke | mm | 290-680 |
| Platen size | mm | 550*530 |
| Max mould size (W*H) | mm | 550*500 |
| Platen moving distance | mm | 620 |
| POWER | UNITS | DSB90II |
| Extrusion motor power | KW | 45 |
| Oil pump motor power | KW | 18.5 |
| Extrusion heating power | KW | 16 |
| Head heating power | KW | 8-10 |
| Total power | KW | 87.5-89.5 |
| EXTRDER UNIT | UNITS | DSB90II |
| Screw diameter | mm |
90 |
| Screw L/D ratio | L/D | 25 |
| Plasticizing capacity | Kg/hour | 150 |
| Number of heating zone | Zone | 4 |
| Max die mouth diameter(single head) | mm | 200 |

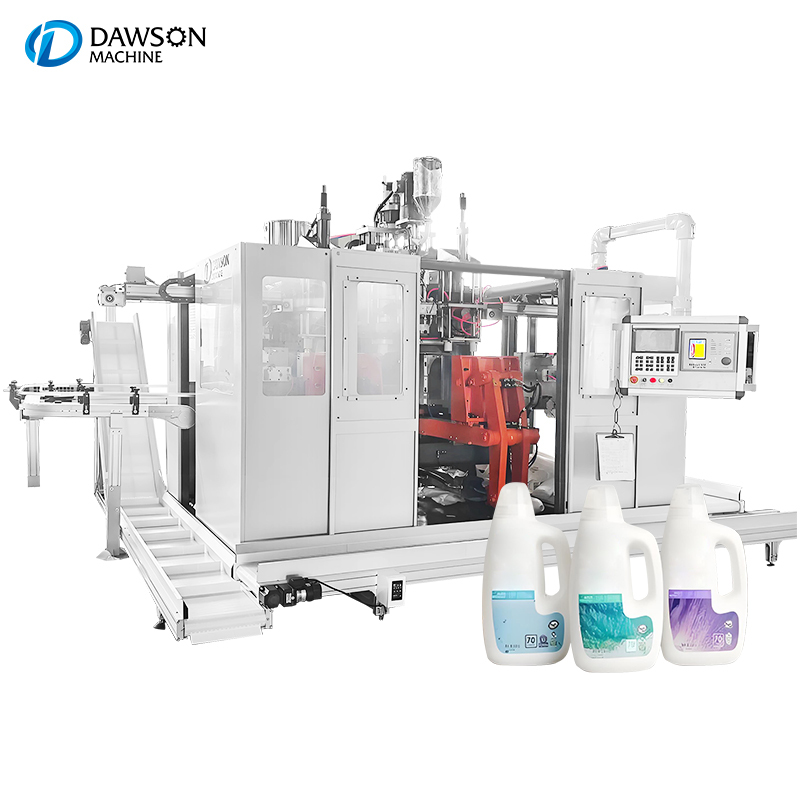

· This machine is equipped with toggle type clamping system
· the transparent view stripe line system and to makethe production automation higher

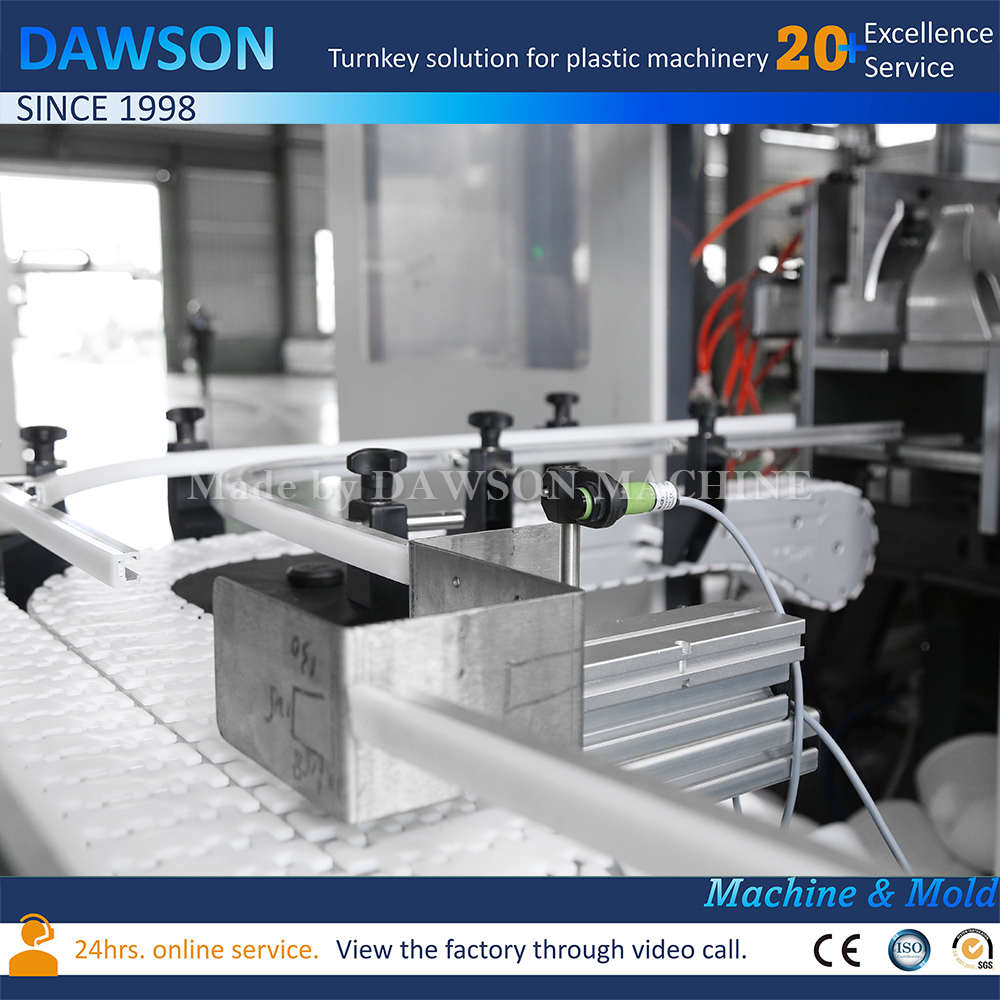

· we also equipped the conveyor system

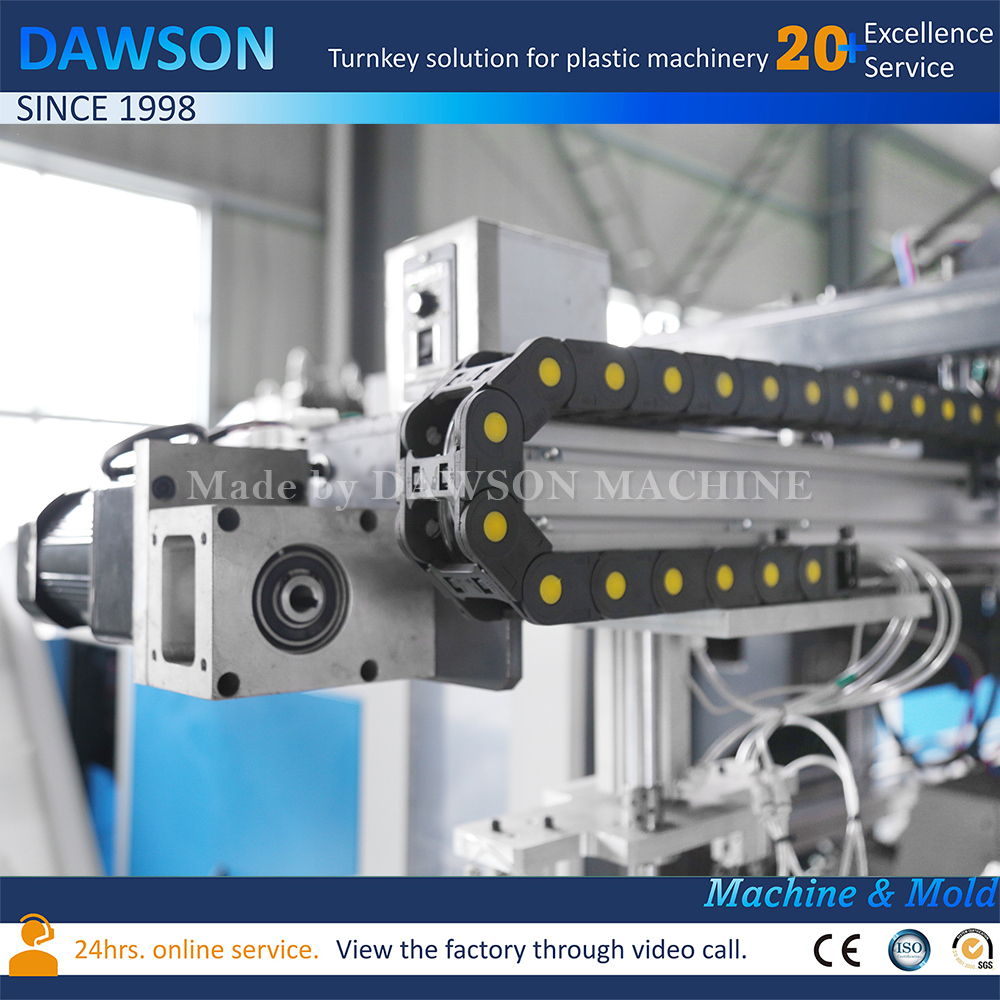

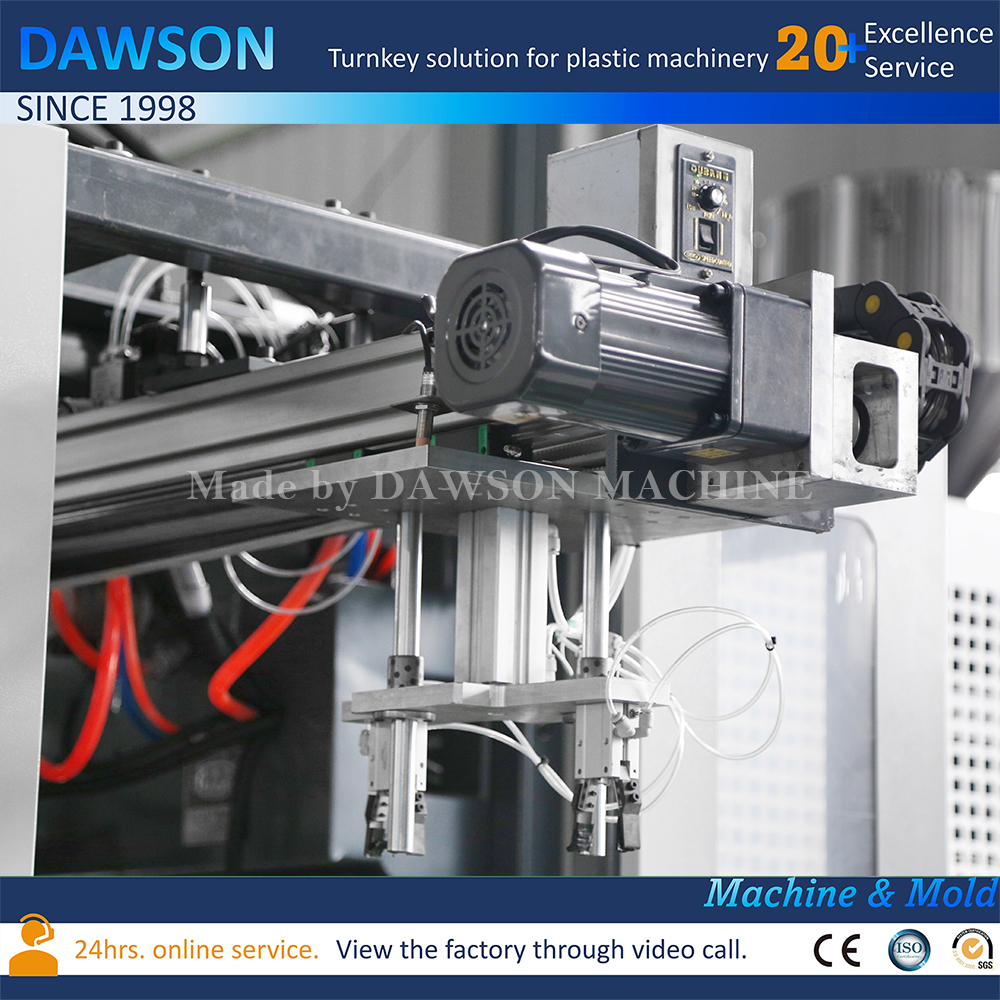

· The machine equipped with take out robot and the robot put the bottles onto the bottle conveyor
· and the scraps come out will be conveyed by the scrap conveyor directly to the crusher
scraps come out will be conveyed by the scrap conveyor directly to the crusher

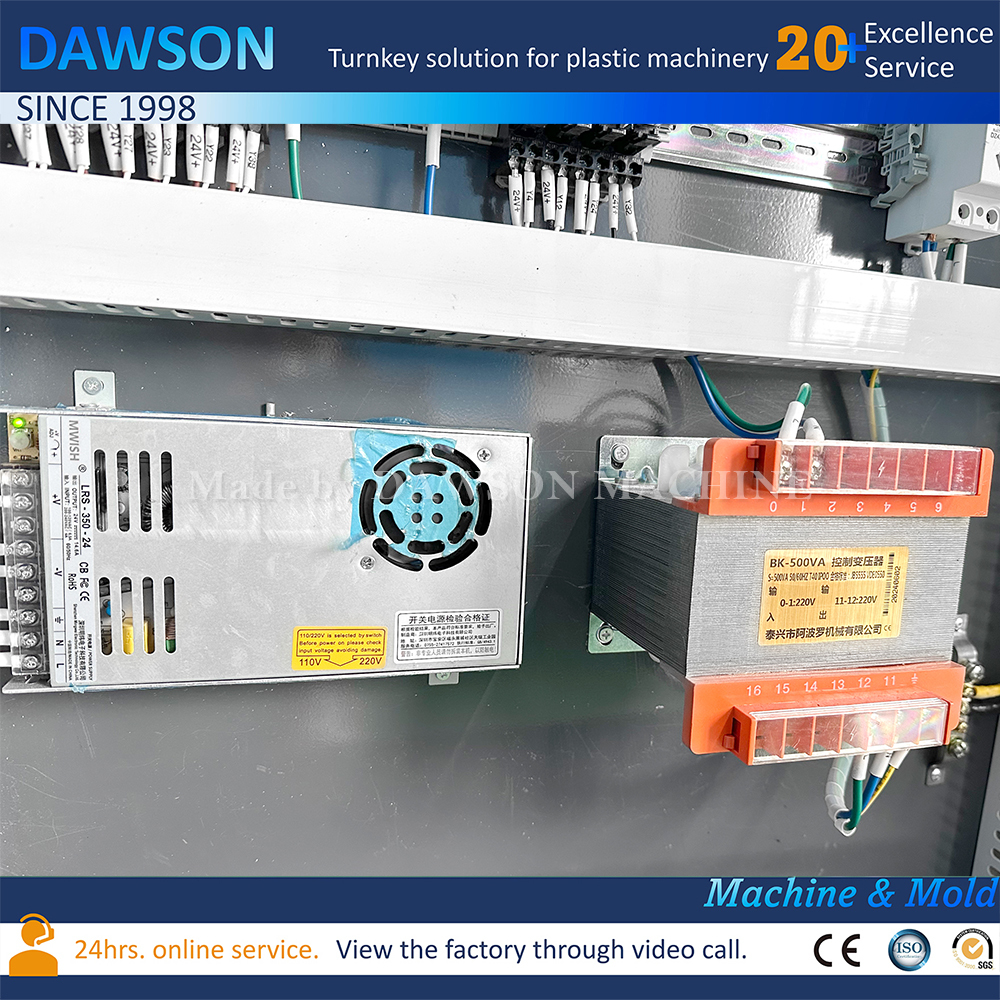

All electric components
From famous world brand to ensure the quality and stablity
Besides machines, we also provide spare parts and experience sharing to our customers. Good service helps to prolong the machine's usage life and reduce the possibility of damages. lf you need help for installation and commissioning, we can dispatch an engineer to your factory. After the one year guarantee, the spare parts for value and remote help for free will cover your machine's whole life.
