Plastic Extrusion Blowing Moulding Machine Sopladora 2L 5L Lubricant HDPE Bottle ISO9001

1
MOQ
USD 15,700 ~ 95,000 / set
Price
Plastic Extrusion Blowing Moulding Machine Sopladora 2L 5L Lubricant HDPE Bottle ISO9001
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: CE / ISO9001
Instructions Provided: Instructions In Chinese And English
Samples Provided: If Required
Blow Molding Type: Extrusion Blow Molding Machine
Showroom Location: None
Water Flow: 100L/Min
Mold Platen Size(Width)(mm): 380 Mm
Labor Demand: 1~2 Operetor
High Light:

Plastic Extrusion Blowing Moulding Machine

,

ISO9001 Plastic Blowing Moulding Machine

,

Plastic Blowing Moulding Machine 100L/Min

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Model Number: ABLB75
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20 set/month
Product Description

Sopladora 2L 5L Lubricant HDPE Bottle Small Manufacturing Plastic Making blow molding Extrusion Blowing Moulding Machine



DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***



Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

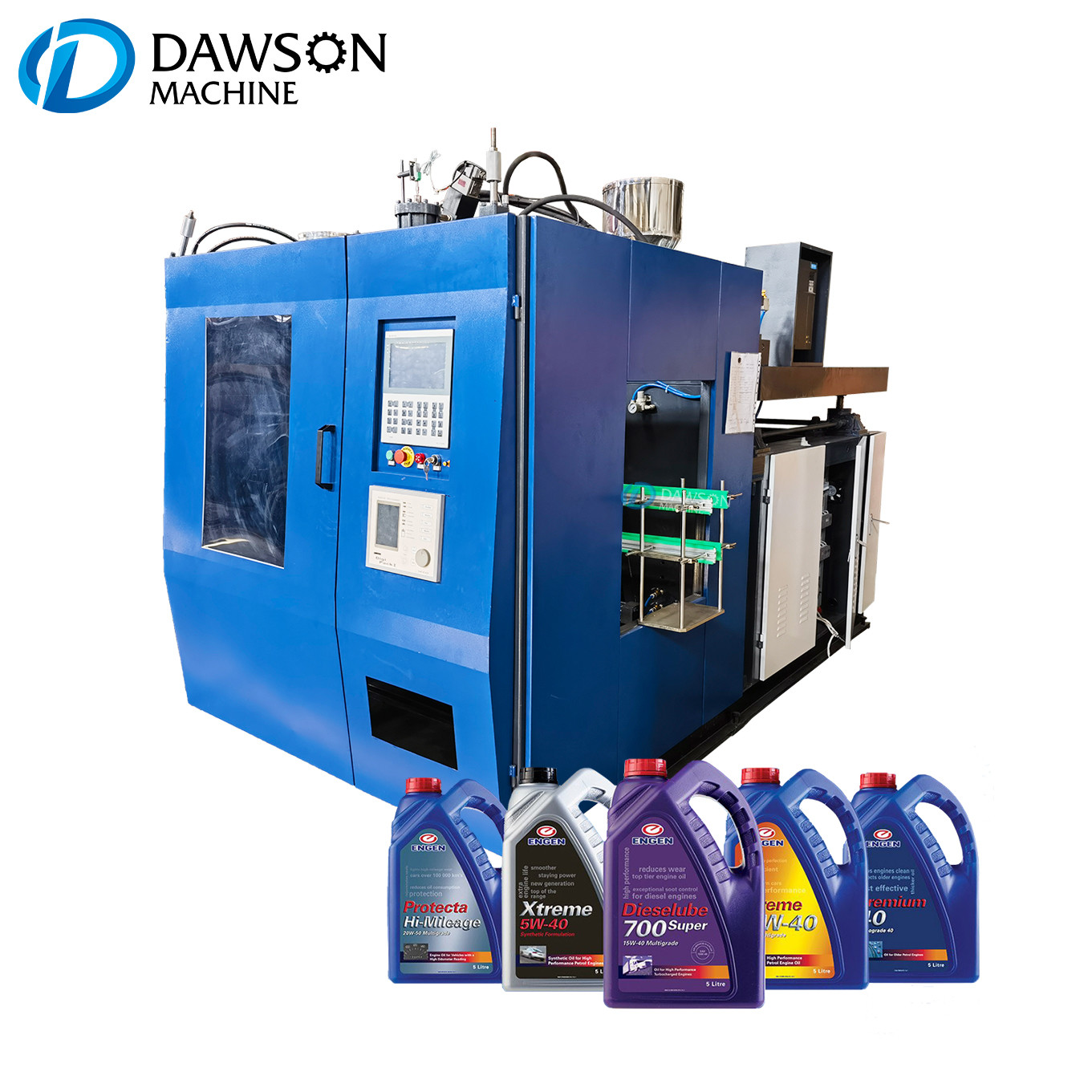

Automatic Extrusion Blow Molding Machine


Plastic Extrusion Blowing Moulding Machine Sopladora 2L 5L Lubricant HDPE Bottle ISO9001 0







Products Description




Extrusion Blow Molding Machine
Extrusion Blow Molding Machine ABLB65/75
suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

Machine Model
Max. Bottle size
Production forecast
ABLB65
Double Station Double Head
1L
450~480 BPH
Double Station Single Head
5L
280~320 BPH



Technical Parameters



Name
Units
ABLB65II
ABLB75II
Max.product volume
L
3.5
8
Screw diameter
MM
65
75
Screw drive power
KW
18.5
22
Output of HDPE
KG/H
75
100
Oil pump drive power
KW
7.5
7.5
Clamping force
KN
65
80
Max.size of mold
MM
320×350
400×430
Template size
MM
290×320
380×420
Mold stroke
MM
150-500
170-520
Max.die diameter
MM
170
170
Size of machine
L×W×H
3.9×2.2×2.6
4.2×2.2×2.7
Weight of machine
TON
6.5
7.5



Name Trader
electronic parts
Microcomputer control system Japanese MITSUBISHI
Temperature Controller Japanese MITSUBISHI
Auxiliary Relay OMRON
contactor Schneider from France
Electric motor WN
Power Source TAIWAN MEANWELL
Inverter DELTA
hydraulic parts
Oil pump SUMITOMO
Valve JAPAN YUKEN
Oil pump and connection JAPAN YUKEN
Sealed part HALLITE
air control system
Cylinder AIRTAC
Air Valve AIRTAC




High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...


Plastic Extrusion Blowing Moulding Machine Sopladora 2L 5L Lubricant HDPE Bottle ISO9001 1

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
