Squeeze Bottle PET Jar Blowing Moulding Machine Water Detergent Shampoo Automatic

Minimum Order Quantity : 1 piece Price : USD 20000-50000 piece
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: Q3000

Detail Information

Condition: New Automatic: Yes
Warranty: 1 Year After-sales Service Provided: Engineers Available To Service Machinery Overseas
Voltage: 380V/3PH/50HZ Power(w): As Order
Blow Moulding Type: Extrusion Blow Moulding Application: Bottle
Plastic Processed: PP,PE Name: Automatic Blowing Machine
Product Name: Automatic Blowing Molding Machine
High Light:

Squeeze Bottle Blowing Moulding Machine

,

PET Jar Blowing Moulding Machine

,

Automatic Squeeze Bottle Blowing Moulding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

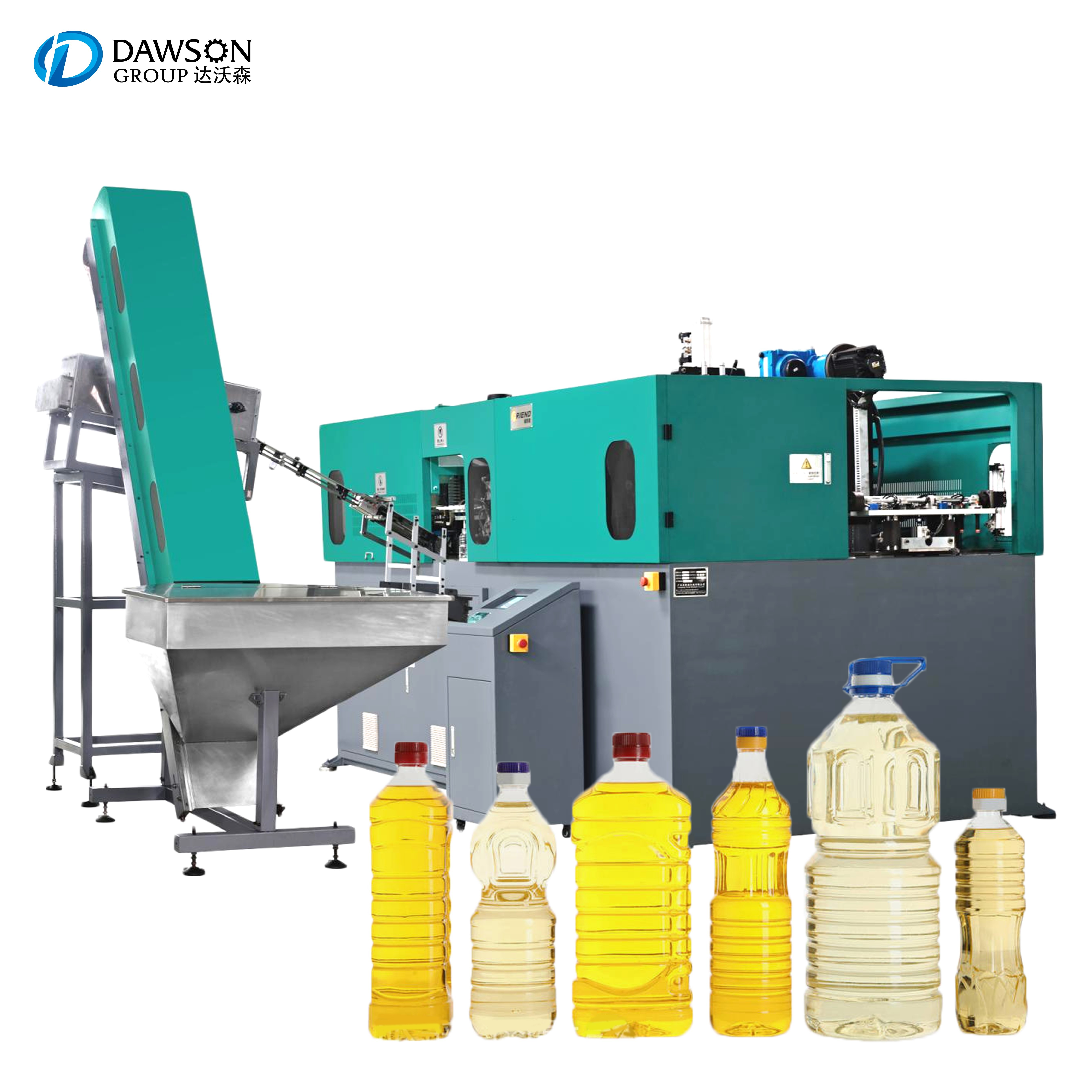

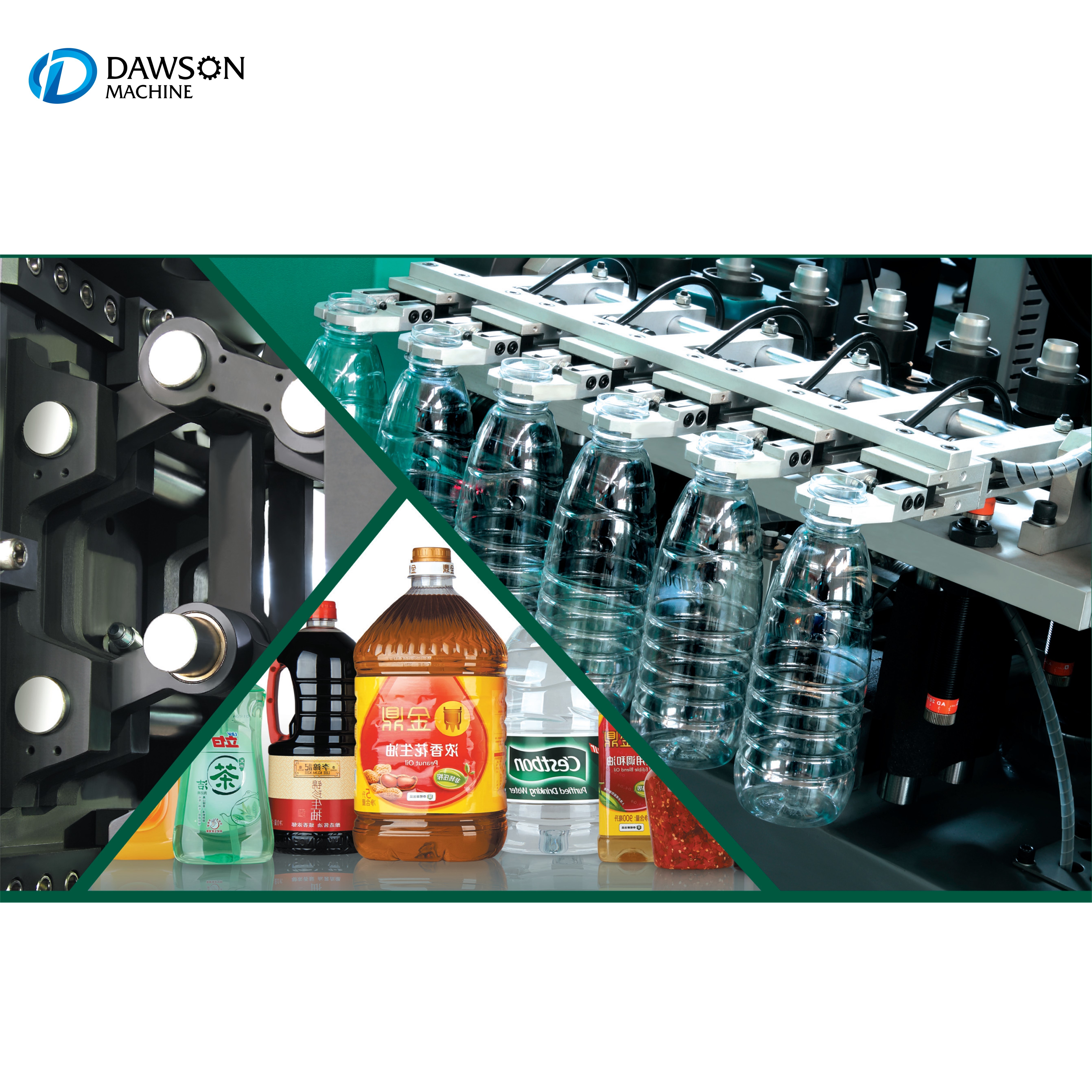

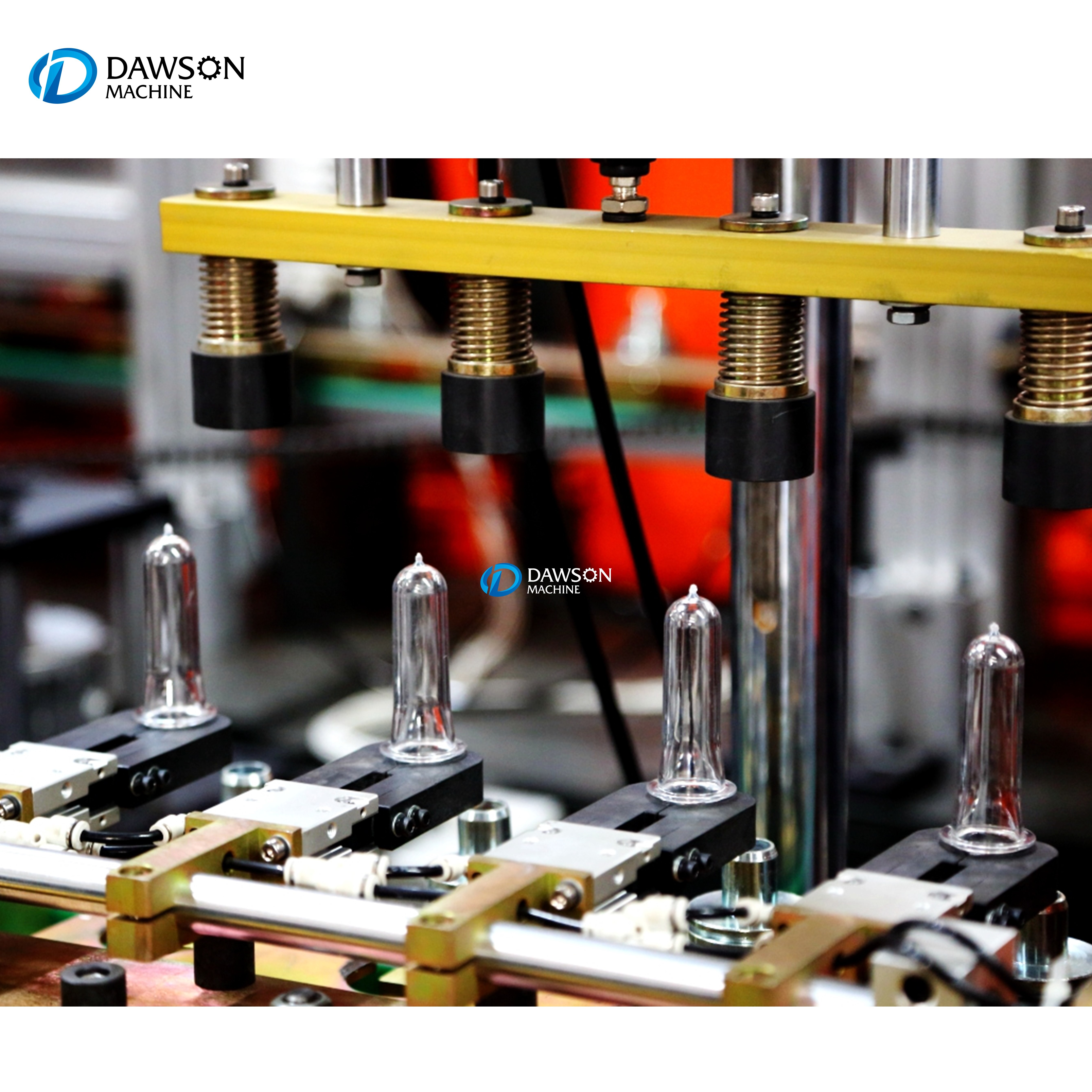

Fully Automatic PET Bottle Blow Moulding Machine

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

adopt servo control system,and structure are stable and reliable ,high -speed and smooth,easy maintenance.the mold is very flexible which can meet the needs of non-stop inline produce. The touchable screen control and temperature adjustment simplified the temperature adjustment for different bottle blowing.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, Q series plays a big role in hot filling package market.



  Item Q3000

Bottle type
specification
Cavity 2
Theory output 3000BPH
Max.volume 2L
Bottle mouth maximum overall diameter 28-80mm
Bottle biggest diameter 100mm
Bottle maximun height 330mm

Power specification
Light tube quantity 32pcs
Light tube power 0.75KW
Maximum heating power 24KW
All electric machine installition 27KW
Actual consumption 30%-60%

Air pressure
specification
Work pressure 7-9kg/cm2
Blow bottle pressure 25-35kg/cm2
Higher-pressure ges consumption 1500Ltr/min

Forzen water
specification
Work pressure 5-6kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min

Machine specification
Size of the machine 2.25×1.6×1.7
Weight of the machine 2.5ton
