Vaccine Syringe Injection Molding Machine 40.5 KW Preventive 190 Mpa

Minimum Order Quantity : 1 piece Price : USD 20800~ 40800 /pcs
Packaging Details : wooden Delivery Time : 45-65 days
Payment Terms : L/C, T/T Supply Ability : 25 pieces per month
Place of Origin: CHINE Brand Name: DAWSON
Certification: CE Model Number: BST-2600

Detail Information

Injection Rate (g/s):: 215 G/s Power (kW):: 40.5 KW
Marketing Type:: Ordinary Product Injection Pressure:: 178-190 Mpa
Toggle Stroke:: 539MM
High Light:

Vaccine Syringe Making Machine

,

40.5 KW Syringe Injection Molding Machine

,

Syringe Injection Molding Machine

Product Description



DAWSON MACHINERY & MOULD GROUP

Injection Molding Machine BST-2600
specialized for making PET preforms , caps , pails, buckets, jars, covers, lids. Special screw for PET products, all machine adapt latest Taiwan control system, Japan YUKEN hydraulic valve for highest quality standard and machine performance. We also able to provide mould designing and manufacturing to help you build up all kinds of plastic items manufacturing.
Technical Parameters
Parameters
BST-1800
BST-2050
BST-2300
BST-2600
Screw diameter
mm
48
48
52
56
Theoretical Shot weight
CM3
420
525
658
770
Shot weight
gram
378
472
592
690
Clamping force
KN
1080
2050
2300
2600
Toggle stroke
mm
440
445
480
530
Ejector stroke
mm
155
155
155
160
Space between tie bars
mm
480*460
490*464
510*510
554*554
Mould thickness
mm
180-470
190-470
200-510
200-550
Machine size
m
5.3*1.6*1.75
5.4*1.6*1.75
5.7*1.8*2.0
6.1*1.7*1.8
Machine weight
ton
5.5
6
6.5
8



Standard Feature
Injection Molding Machine Standard Feature
CLAMPING UNIT
1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector
HYDRAULIC UNIT
1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler
CONTROL UNIT
1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp
SPARE PARTS
█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip

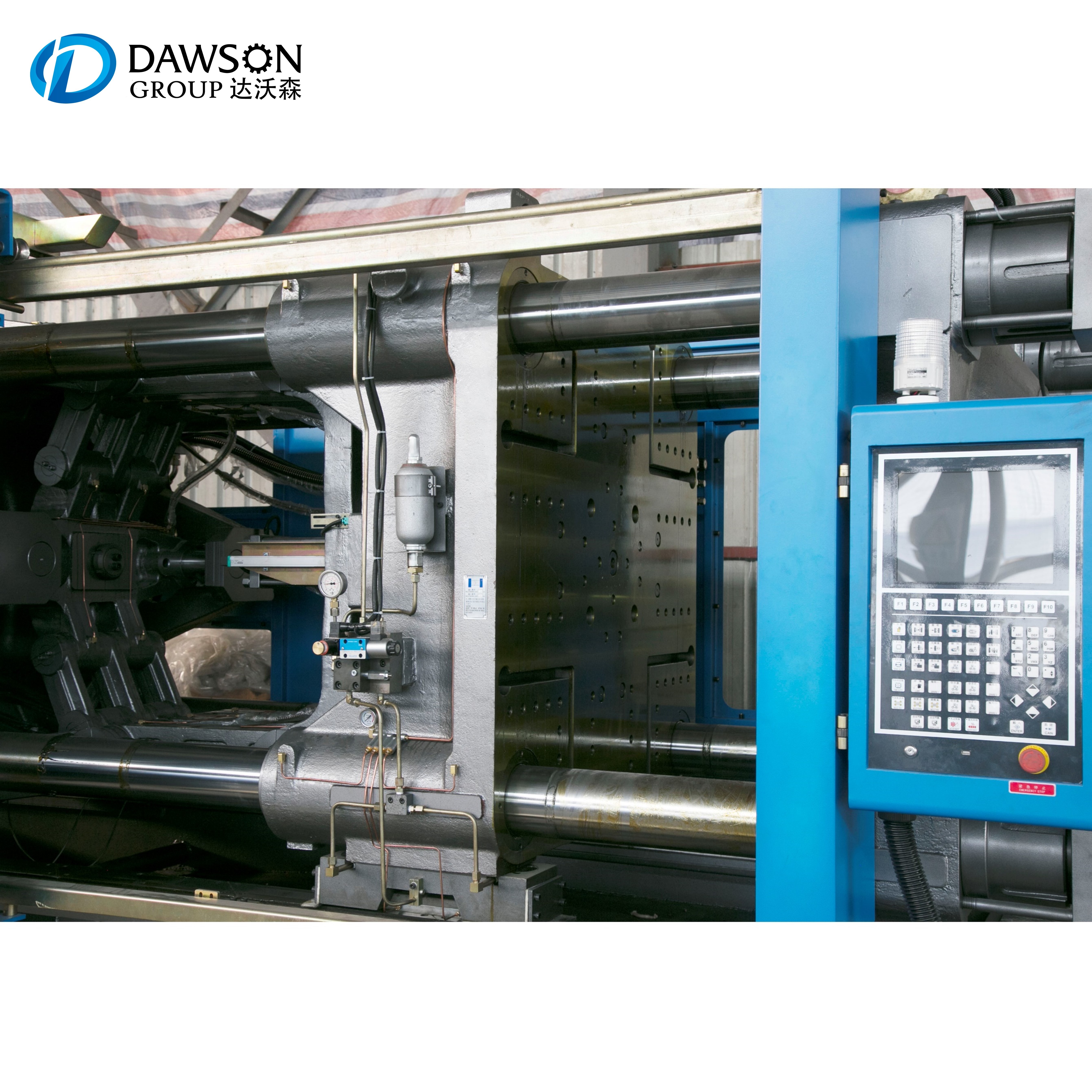

Vaccine Syringe Injection Molding Machine 40.5 KW Preventive 190 Mpa 0
