Plastic Pet Juice Jug Water Glass Wine Bottle Red Wine Cup Making Injection Blow Molding Machine
Contact Person : Kenmartin
Phone Number : 008613913143237
WhatsApp : +8613913143237
Minimum Order Quantity : | 1 Set | Price : | US $12000~76,800/ Set |
---|---|---|---|
Packaging Details : | Machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole deliv | Delivery Time : | 35-45 Work days |
Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 10-20 Set/month |
Place of Origin: | Jiangsu Zhangjiagang | Brand Name: | Dawson |
---|---|---|---|
Certification: | CE, ISO9001 | Model Number: | ISB 1100N-3 |
Detail Information |
|||
Application: | PET Bottle, Jar, Cans... | Blow Moulding Type: | Injection Stretch Blow Molding |
---|---|---|---|
Voltage: | According To Customer's Country | Condition: | New |
High Light: | 1000ml stretch blow molding machine,1000ml injection stretch blow molding machine,iso injection stretch blow molding machine |
Product Description
Plastic Small Hotel Sampoo Bottles One Step Injection Stretch Blow Molding Machine

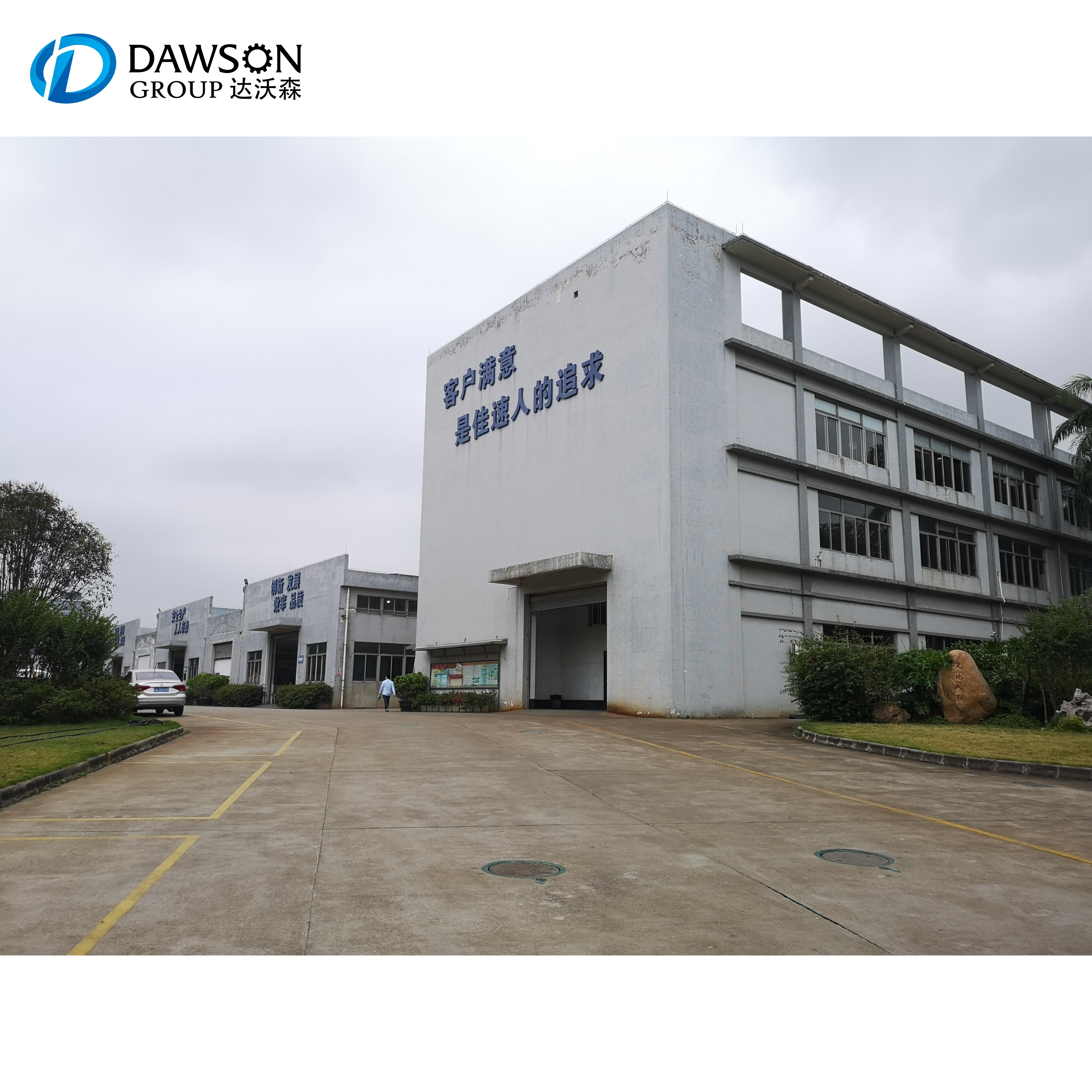

DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

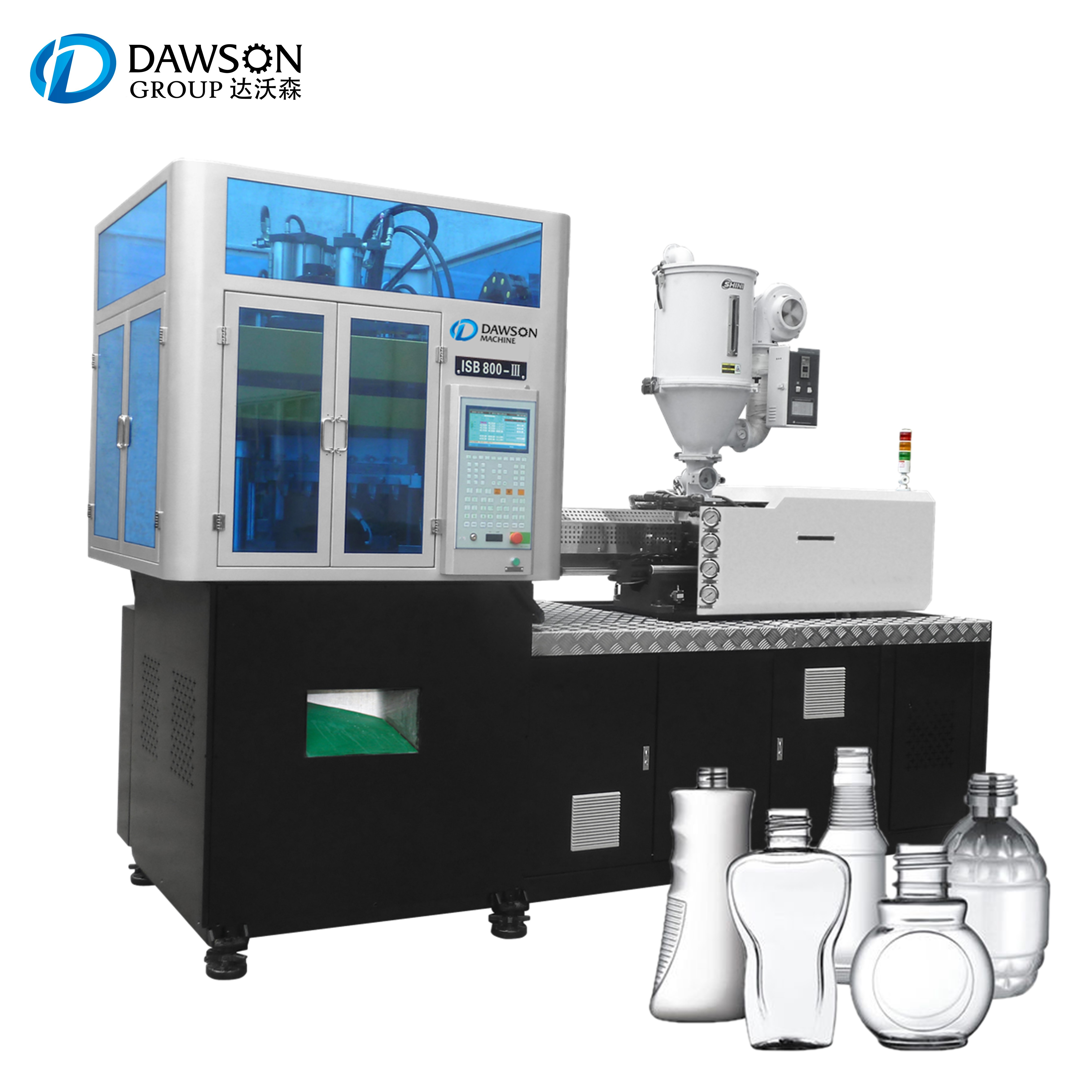

One step PET Injection Stretch Blow Molding Machine
Advantage - Injection Stretch Blow Molding Machine
With the increasing requirement of high quality and elegant appearance in the packing field of food, beverage, and cosmetic, the plastic containers made by the old style extrusion blowing machine cannot meet the customer’s demand any more. However, by one step injection stretch blow molding machine, from the raw material to product processed are all by one step.The whole process includes preform injection,stretch blow and release. No need trimmings, No runner gate material ( no scrap ), but perfect neck, bottom and line, higher transparent, higher rigid. Stretch-blowing molding products come with thinner wall and save more material. PET water bottle stretch blow molding machine completes a high speed molding without preform reheated. With the heat from preform injection to stretch and blow, unnecessary reheating and shorten preform cooling time to save energy.
Molding | Process | Structure | Manpower/Energy/Space | Product Quality |
One-step | From preform to product | One machine | Little | Not affect by damp and less pollution; Various kinds of shape |
Two-step | Injection and blow molding are two separated process |
1.Injection molding machine 2.Preform transiting machine 3.Reheating, stretch and off-moulding machine |
More | Easy affect by damp and polluted; Singleness shape |
ITEM | UNIT | SPEC | |
INJECTION PART | SCREW DIAMETER | MM | 40 |
SCREW L/D RATIO | L/D | 20.5:1 | |
SCREW SPEED | R/MIN | 0-150 | |
INJECTION WEIGHT | G | 245 | |
INJECTION PRESSURE | KG/CM2 | 1504 | |
MAX. HYDRAULIC PRESSURE | KG/CM | 140 | |
PLASTICIZING CAPACITY | G/S | 14 | |
INJECTION RATE | G/S | 140 | |
CLAMPING PART | BLOW CLAMPING FORCE | KN | 80 |
CLAMP TONNAGE | KN | 400 | |
WHEEL DIAMETER | MM | 800 | |
MAX HIGHT OF BOTTLE | MM | 220 | |
OPEN VERTICAL MOLD TRIP | MM | 570 | |
OTHRES | MAX PUMP PRESSURE | MM | 16 |
SERVO MOTOR | KW | 22.5 | |
HEATING POWER | KW | 8.9 | |
OIL TANK VOLUME | L | 400 | |
DIMENSION OF MACHINE | M | 4.2X1.75X3.55 | |
WEIGHT OF MACHINIE | TON | 5 |
