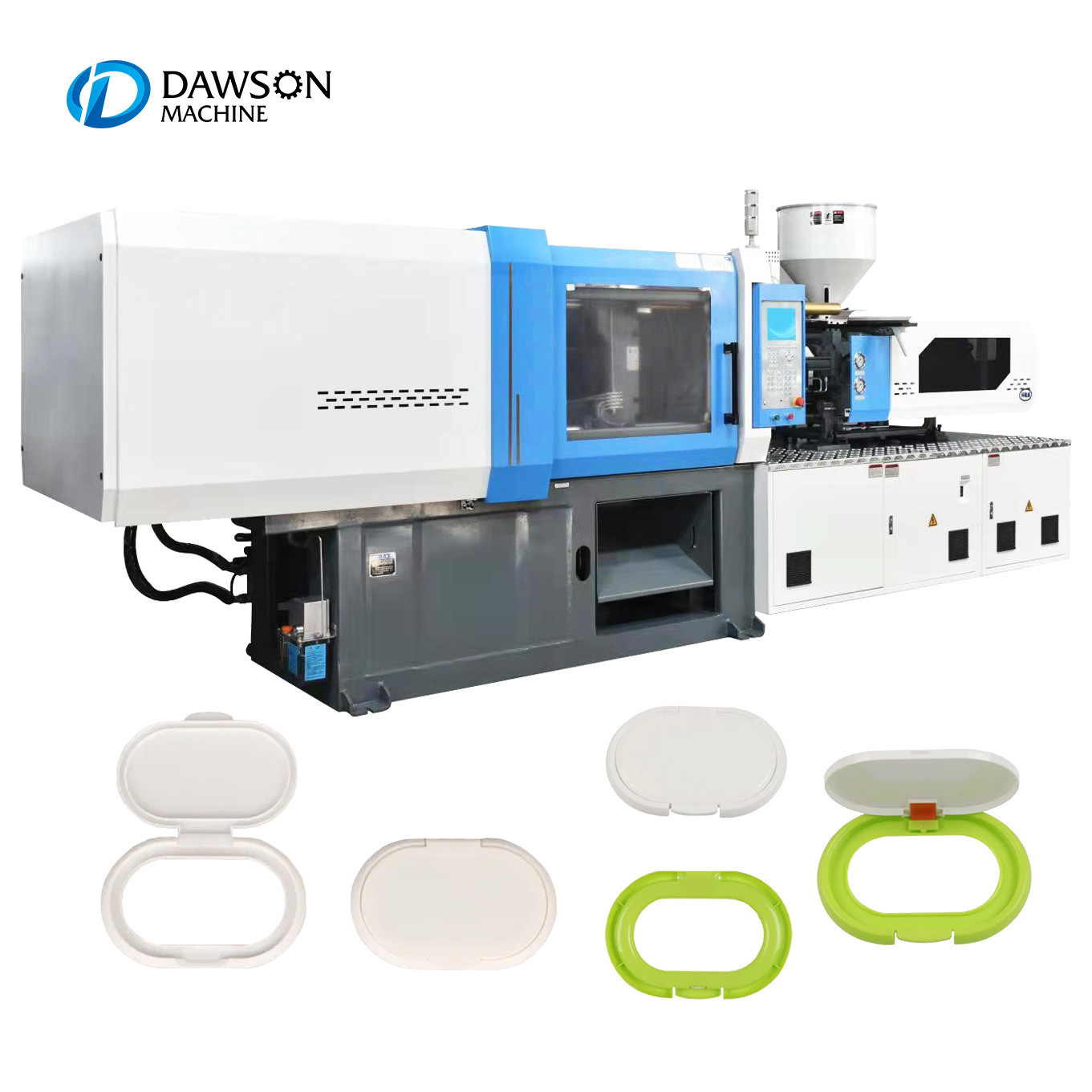

Plastic Molding Machine Plastic Wet Tissue Flip Lid Machinery Injection Molding Machine

1
MOQ
USD 15,700 ~ 95,000 / set
Price
Plastic Molding Machine Plastic Wet Tissue Flip Lid Machinery Injection Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Screw: 76mm
Shot Size: 1766 Cm³
Shot Weight: 1590 G
Injection Pressure: 158 Mpa
Injection Rate: 398 G/s
Screw L/D Ratio: 20.7 L/D
Screw Speed: 0-160 R.p.m
Clamping Tonnage: 4800 KN
Mould Thickness: 280-750 Mm
Heat Power: 23.4 KW
Pump Motor Power: 15+25 KW
Machine Dimension: 8.3x2.2x2.2 M
Machine Weight: 16.3 T
Oil Tank Capacity: 600 L
Space Between Tie-bars: 750x720 Mm
Max. Pump Pressure: 16 Mpa
High Light:

flip lid plastic injection molding machine

,

flip lid plastic injection molding equipment

,

76mm plastic injection molding machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: BST-4800A
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 5-8 weeks
Payment Terms: L/C, T/T
Supply Ability: 20 sets/month
Product Description



Plastic Molding Machine Plastic Wet tissue flip lid Machinery Injection Molding Machine

DAWSON MACHINERY & MOULD GROUP

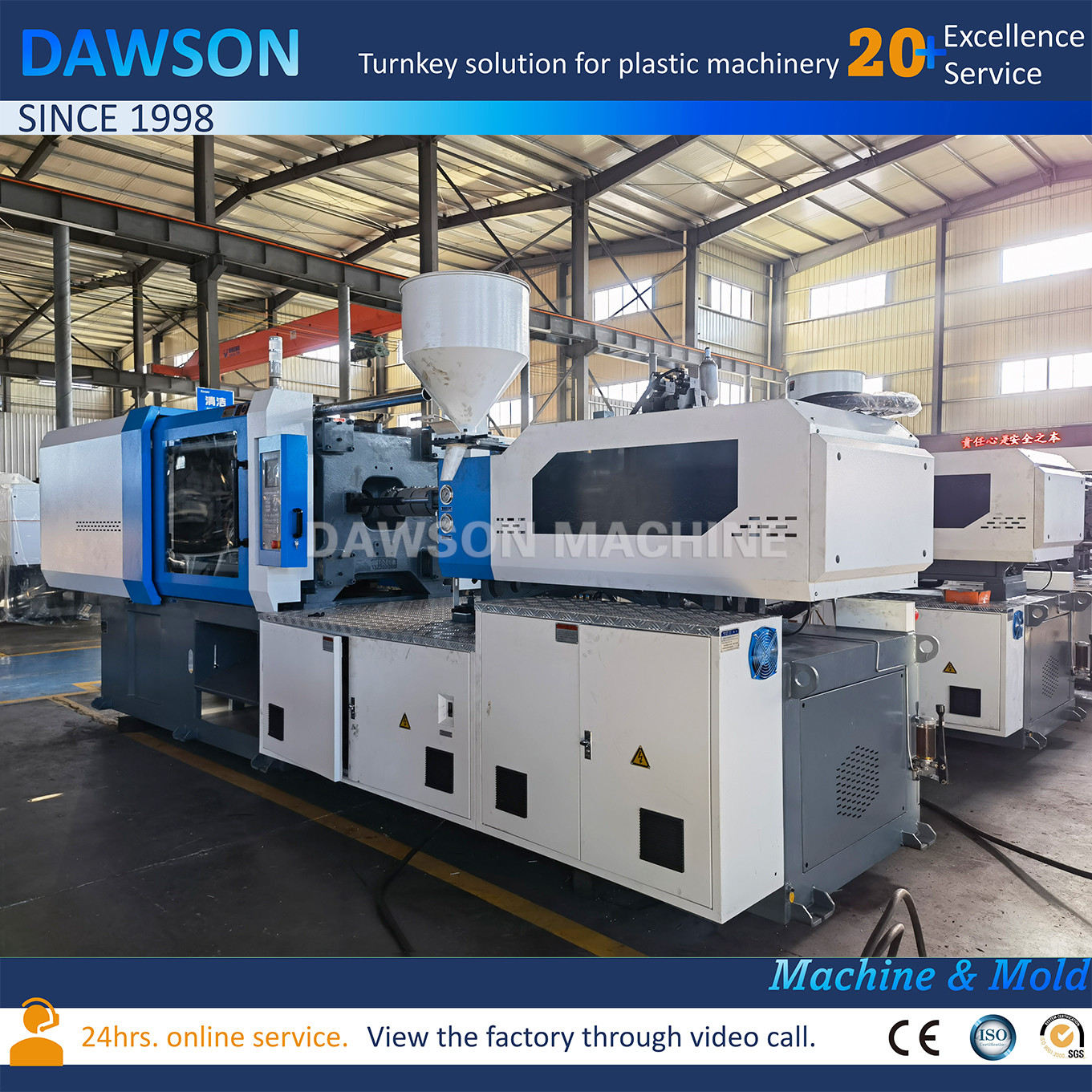

Injection Molding Machine

Our injection molding machine flip equipment not only has efficient and stable performance, but also is very easy to operate and maintain. We provide comprehensive after-sales service and technical support to ensure that you can use the equipment smoothly and achieve the best results.



By choosing injection molding machine flip technology, you will receive efficient, stable, and reliable production solutions. Whether you need mass production or customized production, we can provide you with the best equipment and services to achieve your production goals and needs.





Do you want to manufacture products with flip function? Injection molding machine flap technology is your ideal choice! Injection molding machine flip is an advanced injection molding technology that can automatically flip the product during the injection molding process, adding convenience and functionality to your product.

Our injection molding machine flip equipment is manufactured using the latest technology and high-quality materials to ensure the stability and durability of the equipment. Our equipment is equipped with an intelligent control system that can automatically adjust according to the requirements of the product, ensuring that the flip effect of each product can reach the best state.



By using injection molding machine flip technology, you can produce various products with flip functions, such as flip bottles, flip boxes, etc. Not only that, the flip of the injection molding machine can also improve production efficiency and reduce the need for manual operation. Through automated operations, you can save time and costs while improving product consistency and quality stability.



Whether you need mass production or customized production, we can provide you with the best solution. We have an experienced team and advanced equipment that can customize design and manufacturing according to your needs. Choose injection molding machine flip technology to make your product stand out in the market!


Screw Diameter(mm)
76
Theoretical Shot weight (cm³)
1766
Shot weight (g)
1590
Clamping force (kn)
4800
Toggle stroke (mm)
710
Ejector stroke (mm)
180
Space between tie bars (mm)
750*720
Mould thickness (mm)
280-750
Machine size (m)
8.3*2.2*2.2
Machine weight (ton)
16.3




Standard Feature
Injection Molding Machine Standard Feature
CLAMPING UNIT
1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector

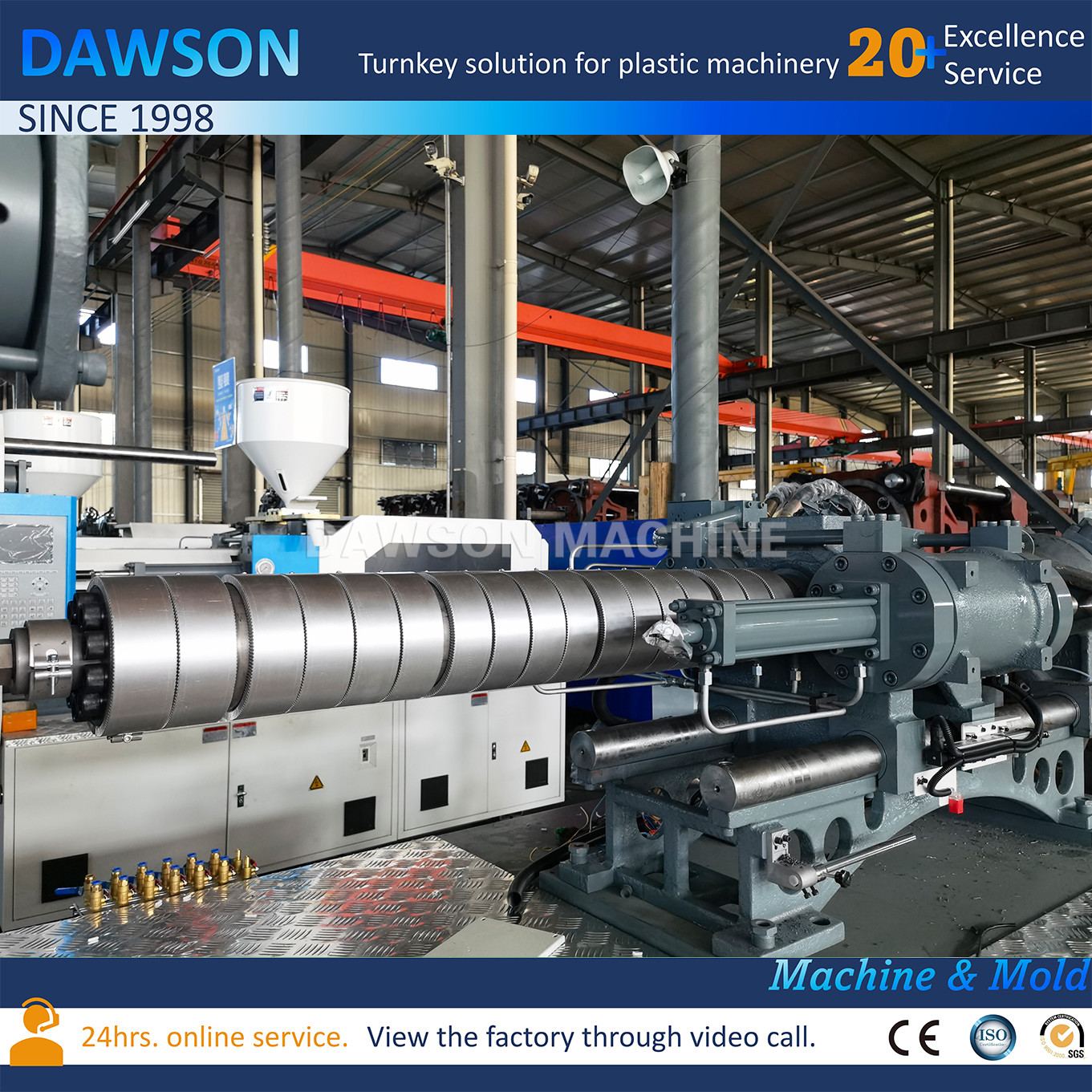

HYDRAULIC UNIT
1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler

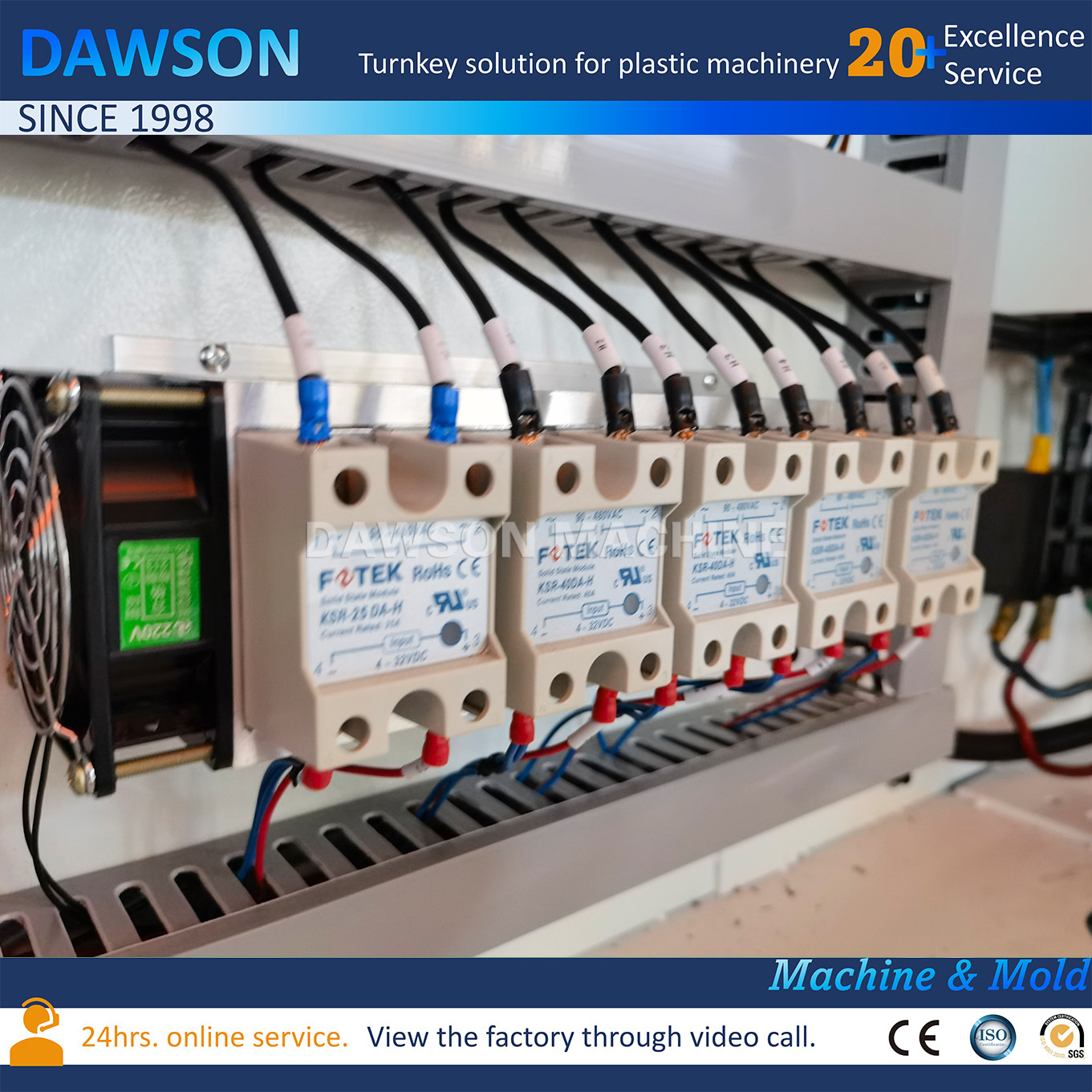

CONTROL UNIT
1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp
SPARE PARTS
█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip







Plastic Molding Machine Plastic Wet Tissue Flip Lid Machinery Injection Molding Machine 0

FAQ
Plastic Molding Machine Plastic Wet Tissue Flip Lid Machinery Injection Molding Machine 1

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.



Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.



Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )



Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.



Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)



Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .


Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!and bottles in all shapes.
