Home /Products/Plastic Auxiliary Machine/Automatic Mouth Neck PLC Plastic Bottle Cutting Machine PE PVC PP PET PC HDPE

Automatic Mouth Neck PLC Plastic Bottle Cutting Machine PE PVC PP PET PC HDPE

1
MOQ
USD12500
Price
Automatic Mouth Neck PLC Plastic Bottle Cutting Machine PE PVC PP PET PC HDPE
Features Gallery Product Description Request A Quote
Features
Specifications
Certification: SGS,CE
Applications: Cutting Necks Of Bottles, Jars
Machine Name: Auto Bottle Neck Cutting Machine
Machine Specification: 800*420*850 Mm
Transport Packaging: Film And Wooden Cases
Usage: Bottles After Blow Molding
Adjustment: Available To Change Height And Width
Application: Plastic Automatic Equipment
Control System: PLC
Dimension: 2000*1200*2000mm
Material: Stainless Steel
Power Consumption: 3kw
Power Supply: 220V/380V
High Light:

PLC plastic bottle cutting machine

,

Mouth Neck plastic bottle cutting machine

,

PLC pet bottle cutting machine
Basic Infomation
Place of Origin: CHINA
Brand Name: DAWSON
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 35-45 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description
DAWSON MACHINERY & MOULD GROUP

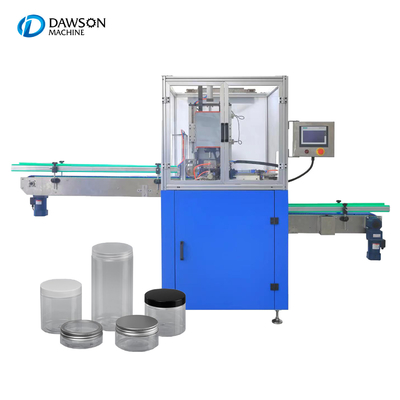

Plastic Bottle Neck Cutting Machine

The PET Automatic Cutting Machine is an advanced and efficient equipment designed for cutting PET bottles. With its fully automated operation, it offers precise and consistent incisions. Key features include high-speed cutting capability, reliable performance, and versatility in handling different bottle sizes and shapes. The machine reduces manual intervention, maximizing productivity and reducing labor costs. It incorporates advanced technology to ensure accurate and quality cuts. The PET Automatic Incision Machine finds wide applications in industries such as food, beverage, cosmetics, and pharmaceuticals, providing a cost-effective solution for high-volume production. It significantly improves production efficiency and ensures the integrity and consistency of the cutting process, making it an essential tool for PET bottle manufacturers.
Model
TQ-CM(Series)
TQ-TM(Series)
TQ-CTM(Series)
Speed
600-1500pcs/h
500-1200pcs/h
500-1000pcs/h
Range
50ml-30L
50ml-30L
50ml-30L
Size
1600*620*1600mm
1600*620*1600mm
1600*620*1600mm
Height
750-900mm
750-900mm
750-900mm
Conveyor length
1600mm
1600mm
1600mm
Power
220V 50HZ
220V 50HZ
220V 50HZ
Model
TQ-XG (Series)
TQ-GT(Series)
TQ-QK (Series)
Speed
1000pcs/h
360-900pcs/h
1500-6000 pcs
Range
Cover diameter: 15-70mm
Bottle diameter: 30-100mm
Bottle height: 40-280mm
60L-200L
50ml-5L
Size
2000*1200*2000mm
1300*1300*1600mm
700*700*1600mm
Weight
/
550kg
550kg
Power
380/220V 50HZ
220V 50HZ
220V 50HZ
Tag:

380v 50HZ Plastic Auxiliary Machine

YG-25 Plastic Auxiliary Machine

38mm pipe auto loader machine 1000w
