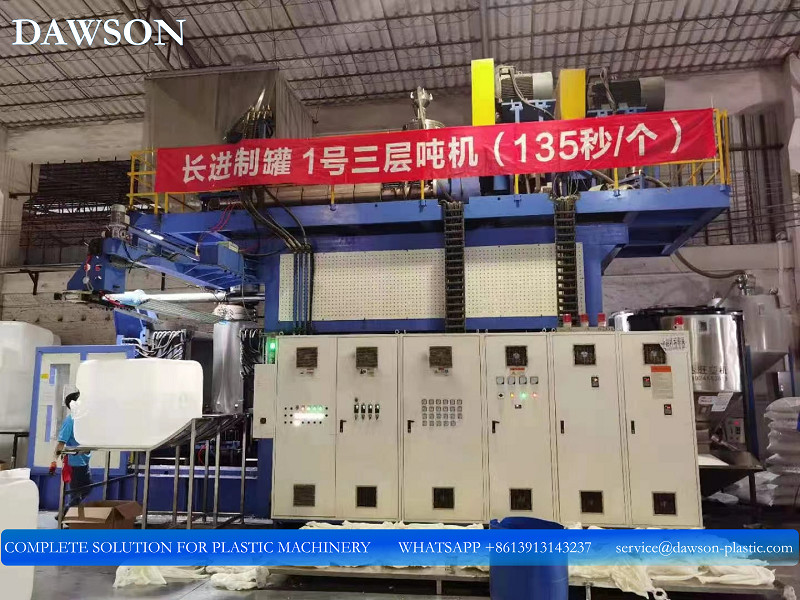

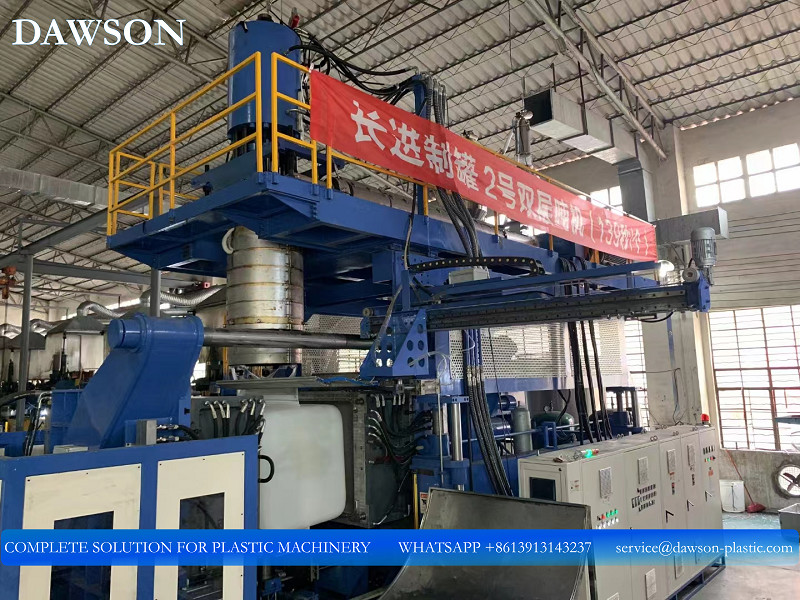

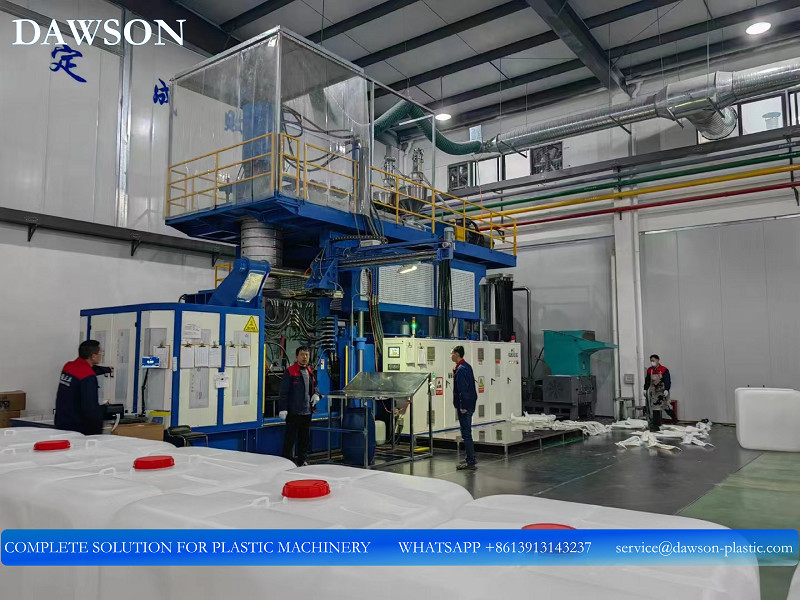

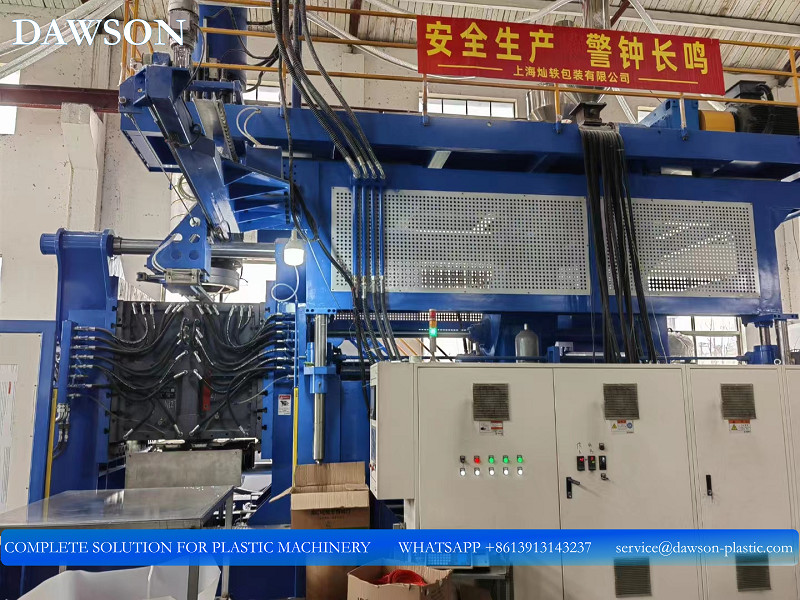

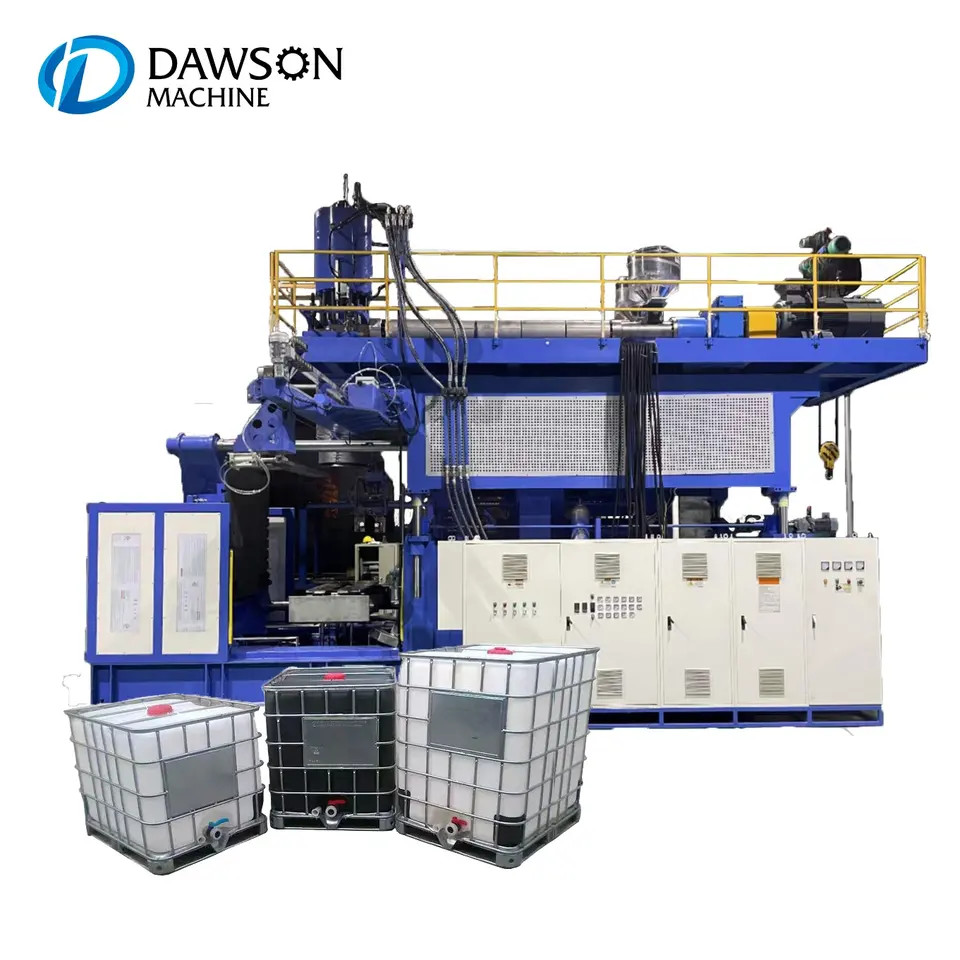

IBCs (Intermediate Bulk Containers, Totes & Cubes) are an efficient and economical solution for safe conveyance and storage of liquids, fluids and chemicals. These containers are strong, stackable, and easy to move with a forklift or pallet jack. Our 1000L plastic extrusion blow molding machine is ideal for accommodating 500-1000L IBC Tanks. This machine is designed with a screw suited for UHMWPE material. This leads to an even plastication and an insignificant temperature, significantly shortening the IBC tank producing time. The total output of this machine reaches up to 500pcs/day or even 135s/cycle with the end product meeting standards.
It is often necessary to switch out the colors during the manufacturing process. With our special die head design, you can reduce the time needed for exchanging colors as well as cheapen your energy consumption (8kw/IBC tank). Our machines come in single, double, and triple layer configurations--the more layers, the wider the applications and lower the cost of additives. Substances are only added to the outer layer, meaning the cost can be substantially reduced with a triple layer machine when using the same proportion of additives as a single layer machine.
In order to enhance the user experience and general automation, this machine is equipped with a bilingual operator panel and automatic configuration from world renowned brands.
Beyond the machine, we also provide a turnkey solution for your IBCs-associated project. This includes auxiliary, steel cage line manufacturing devices, spare parts such as steel plates, steel pipes, ventilation caps and ball valves, all arising from our abundant experience.
We are proud to introduce our high-output machine that is capable of producing over 500 pieces per day while also being energy efficient -- one IBC tank only needs 8kwh of electricity. Our die set design is of the highest quality, ensuring that the tanks are light but still uncompromisingly strong and secure. We also have rich experience with our machines, having installed more than 50 of them in factories across the globe!
| Name | Technical Parameters |
|---|---|
| Max. Product Volume | 1200L |
| Plasticizing Capacity | 500-550kg/h |
| Machine Dimension | 11m*7m*7m |
| Machine Weight | 65T |
| Extruder Drive Motor | 132KW*2 |
| Screw Heating Power | 80KW |
| Machine Total Power | 360KW |
| Product Name | Automatic 1000L Plastic IBC Tank Making Extrusion Blow Molding Machine |
| Oil Tank Capacity | 1000L |
| Hydraulic Drive Motor (Main) | 42KW |
1 layer 1000L IBC tanks
2 layer 1000L IBC tanks
3 layers 1000L IBC tanks
IBCs for bulk chemicals, food syrup, petrochemical products and paints and industrial coatings, etc.
Brand Name: DAWSON
Model Number: DS-1000L
Place of Origin: China
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Export standard packaging
Delivery Time: 90-100 working days after received deposit and confirmed drawing
Payment Terms: 40% advance payment by T/T before production, balanced before shipment
Supply Ability: 20sets/year
Die Head Heating Power: 75KW
Machine Weight: 65T
Product Name: Automatic 1000L Plastic IBC Tank Making Extrusion Blow Molding Machine
Clamping Force: 2200KN
Production capacity: 20-25pcs/hour
The Extrusion Blow Molding Machine is packaged and shipped in a wooden case to ensure that no damage occurs during transportation.
The packaging material used is of the highest quality and is designed to provide maximum protection to the Extrusion Blow Molding Machine.
The wooden case is checked for any damage before shipping and is secured with bubble wrap and/or foam padding to ensure that no damage occurs during transport.
The Extrusion Blow Molding Machine is shipped via a reputable courier service and is tracked for the entire journey.
The customer will be provided with a tracking number and the estimated delivery date.
