Big Machine 25 Litre Plastic HDPE Jerry Can Making Extrusion Blow Molding Machine For 20L Jerrycan
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
We already served customers from all around the world, such as Colombia, Venezuela, Peru, Guatemala, Ecuador, Saudi Arabia, UAE, Romania, Russia, Thailand, Philippines, South Africa, Tunisia, Algeria, Ethiopia, etc.
Products Description
DAWSON MACHINERY & MOULD GROUP

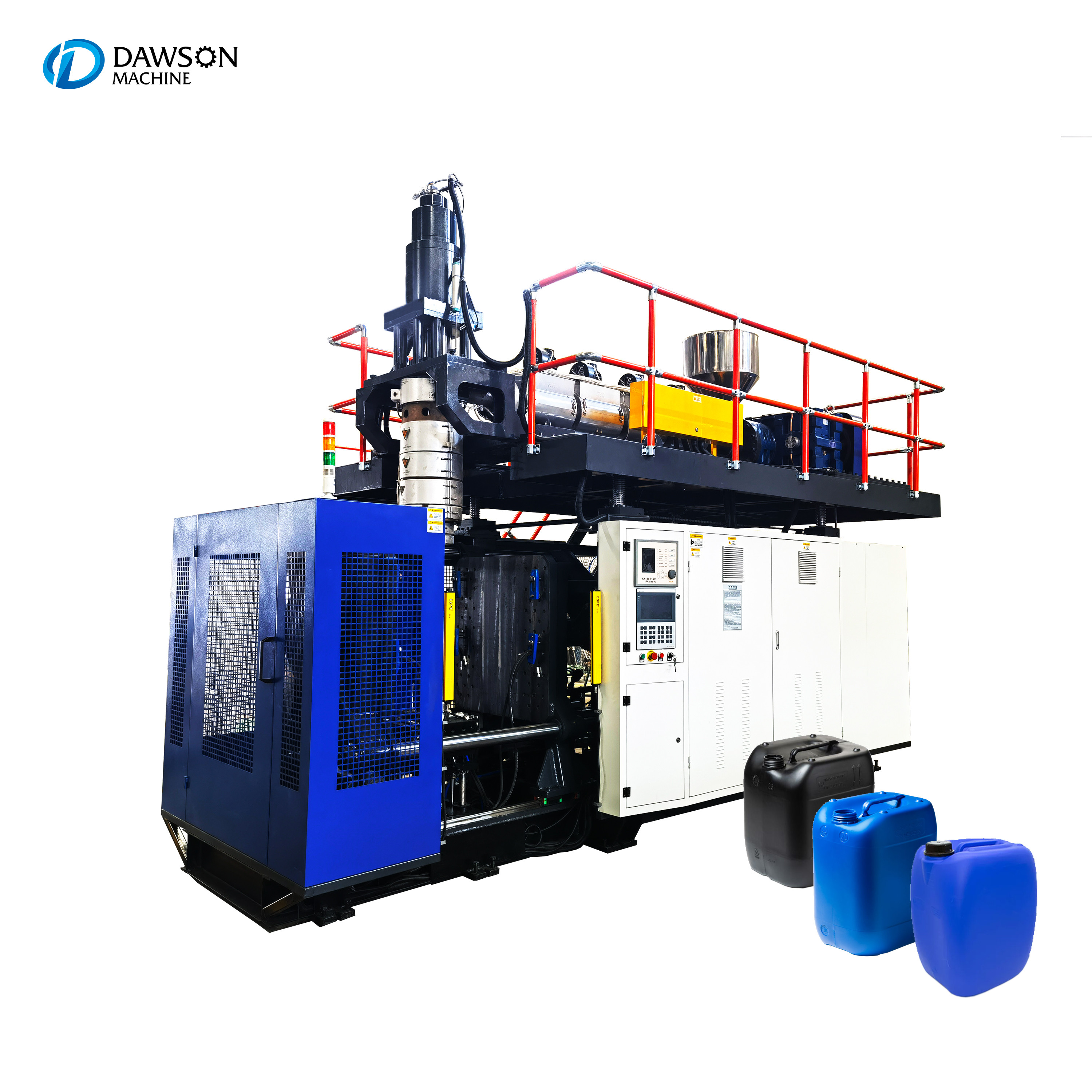

Accumulator Die Head Automatic Extrusion Blow Molding Machine DSBD80
This model extrusion blow moulding machine, our customers mainly purchase it for producing 10-30 liters stackable jerrycans. And is suitable for you to start your plastic container making business. Easy operation, can be equipped with robot arm to take out the jerry cans.
With bigger template size, is suitable for producing bigger dimension products.
Can be equipped with auto-deflashing unit for the mould, and have single layer, double layer, triple layer options for your different product requirement.
|
|
|
|
|
|
Fixed Station/

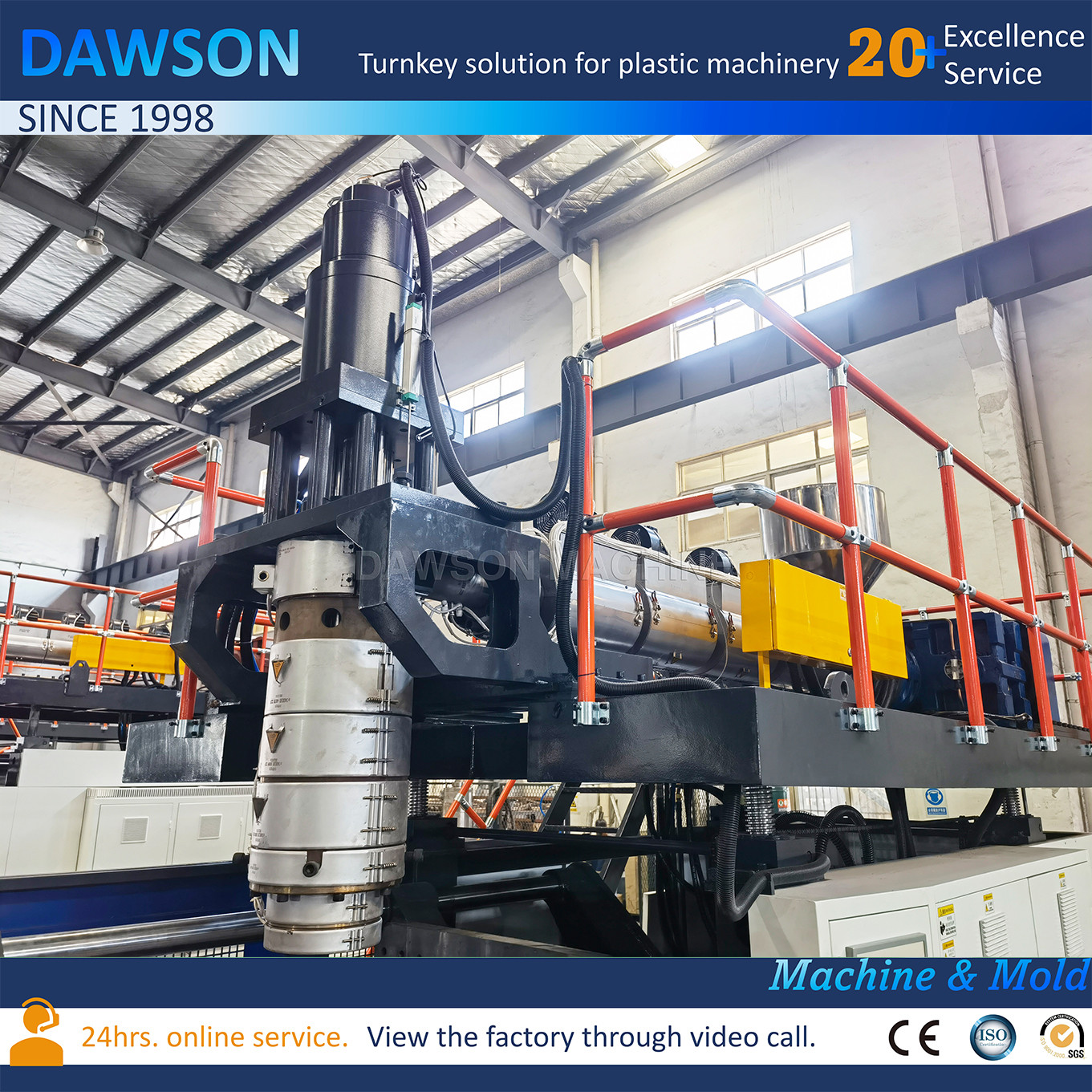

Accumulator die head
|
|
|
Technical Specification
|
Name
|
Units
|
DSBD80
|
|
Max.product volume
|
L
|
30L
|
|
Screw diameter
|
MM
|
80
|
|
Screw drive power
|
KW
|
30
|
|
Output of HDPE
|
KG/H
|
110
|
|
Oil pump drive power
|
KW
|
15
|
|
Clamping force
|
KN
|
230
|
|
Max mould size
|
MM
|
750× 800
|
|
Clamping stroke
|
MM
|
450-1000
|
|
Overall Size of machine
|
L×W×H
|
5.0×2.8×3.9
|
|
Weight of machine
|
TON
|
12
|
|
High Quality Mould
The mold is a very important part in the plastic container blow molding process. A good quality extrusion blow mould can make the product production with higher efficiency, and moulds that are through find machining, and water ways, can also make the finished product with beautiful surface.
Our own mould manufacturing workshop, using high configuration equipment and we have engineers with more than 16 years of technical experience, who has the qualification to customize blow molding moulds for you.
- Using stainless steel S136H or Aluminium alloy 7075# as mould cavity material- And neck plate using heat treatment to HRC62 hardness JAPAN DC53.
- Double neck design for you to easy and fast change in future, no need to communicate with us and wait us to send the neck.
- Moulds, we can make with auto-deflashing or manual deflashing according to your different demands
- Perfect mould cooling water way design, can enable better mould cooling preformace
- 2D & 3D product drawing available for customers to confirm the drawing
- Before delivery, we will send samples for customer's check and confirm the product effect.
- We ever made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU,HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Customers' Satisfaction
We committed to provide customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
|
|
|
Q: Is there any spare parts be delivered together with the machine?
Yes, when delivering, we will pack all necessary backup spare parts with the machine and deliver together.
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
|
