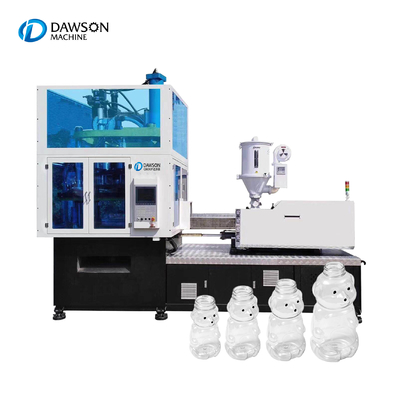

This machine has three stations, injection preform, blowing & stretch and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,then the product will rotate to release station and drop down, It's fully automatically cycle rotation working mode,no need to buy bottle preform, no waste, high degree of automation, finished products smooth and beautiful.

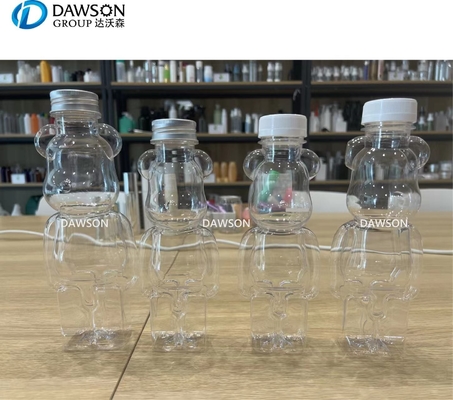

Commonly used in 10-1000 ml PET cosmetic bottle, milk bottle, sports water bottle, pharmaceutical packaging, PC bottle, red wine cup and LED lampshade, etc
|
Model
|
ISB 800-3
|
|
Injection Part
|
|
Screw Diameter
|
40mm
|
|
Screw L/D Ratio
|
20.5:1
|
|
Screw Speed
|
0-190RPM
|
|
Theoretical Injection Capacity
|
238cm3
|
|
Injection Pressure
|
174Mpa
|
|
Max. Hydraulic Pressure
|
140Kg/cm
|
|
The Actual Injection Quantity(PS):
|
225g(ps)/8Oz
|
|
Screw Stroke:
|
190Mm
|
|
Clamping Part
|
|
Blow Clamping Force:
|
80Kn
|
|
Clamp Tonnage:
|
400Kn
|
|
Wheel Diameter:
|
800mm
|
|
Max. Height of Bottle:
|
ISB:145/IB:140
|
|
Open Vertical Mode Trip:
|
430mm
|
|
Others
|
|
Max. Pump Pressure:
|
16Mpa
|
|
Motor Oil:
|
18.5Kw
|
|
Electric Power:
|
12.2Kw
|
|
Oil Tank:
|
400L
|
|
Overall Dimension(L*W*H):
|
3.8m*1.45m*3.0m
|
|
Weight:
|
5000kg
|
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating.
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed.
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product;

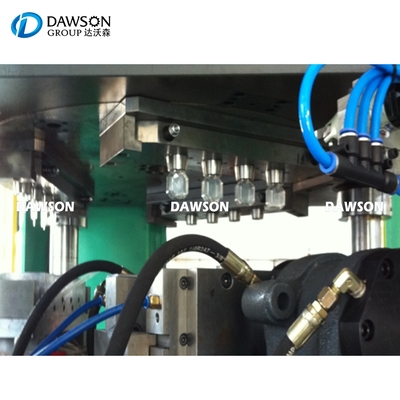

Stretch Blow: Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;
Product Release: Equipped with a standard ejector.
The Injection Stretch Blow Molding Machine process includes mould injection, stretch blowing and off-molding, all these steps could be finished in one step. The products from this machine don’t have flash, sprue, and with much less disfigurements. It presents the perfect looking mouth, bottom and seam as well as better transparency, higher rigidity. ISBM Injection Stretch Blow Molding Machine products are thinner, is possible to help you save 50% raw material. Besides the merit mentioned above, this machine can reach higher speed so as to achieve higher efficiency. ISBM1100N-3 is suitable for eye dropper bottles, medicine bottles, cosmetic bottles, jars, milk bottles, yogurt bottles, baby bottles...etc.
With the increasing requirement of high quality and elegant appearance in the packing field of food, beverage, and cosmetic, the plastic containers made by the old style extrusion blowing machine cannot meet the customer’s demand any more. However, by one step injection stretch blow molding machine, from the raw material to product processed are all by one step.The whole process includes preform injection,stretch blow and release. No need trimmings, No runner gate material ( no scrap ), but perfect neck, bottom and line, higher transparent, higher rigid. Stretch-blowing molding products come with thinner wall and save more material.
