1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating.
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed.
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product;

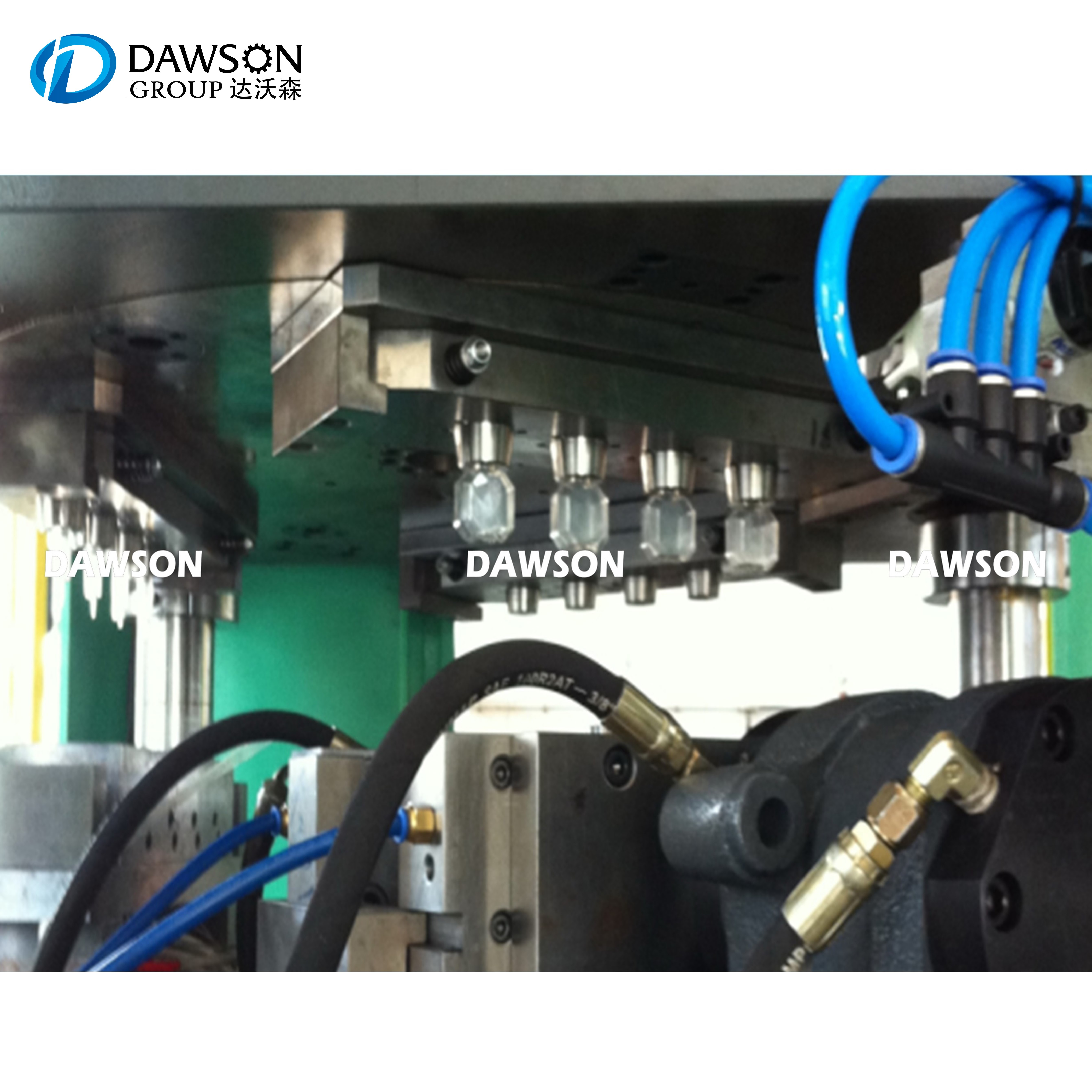

Stretch Blow: Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;
Product Release: Equipped with a standard ejector.

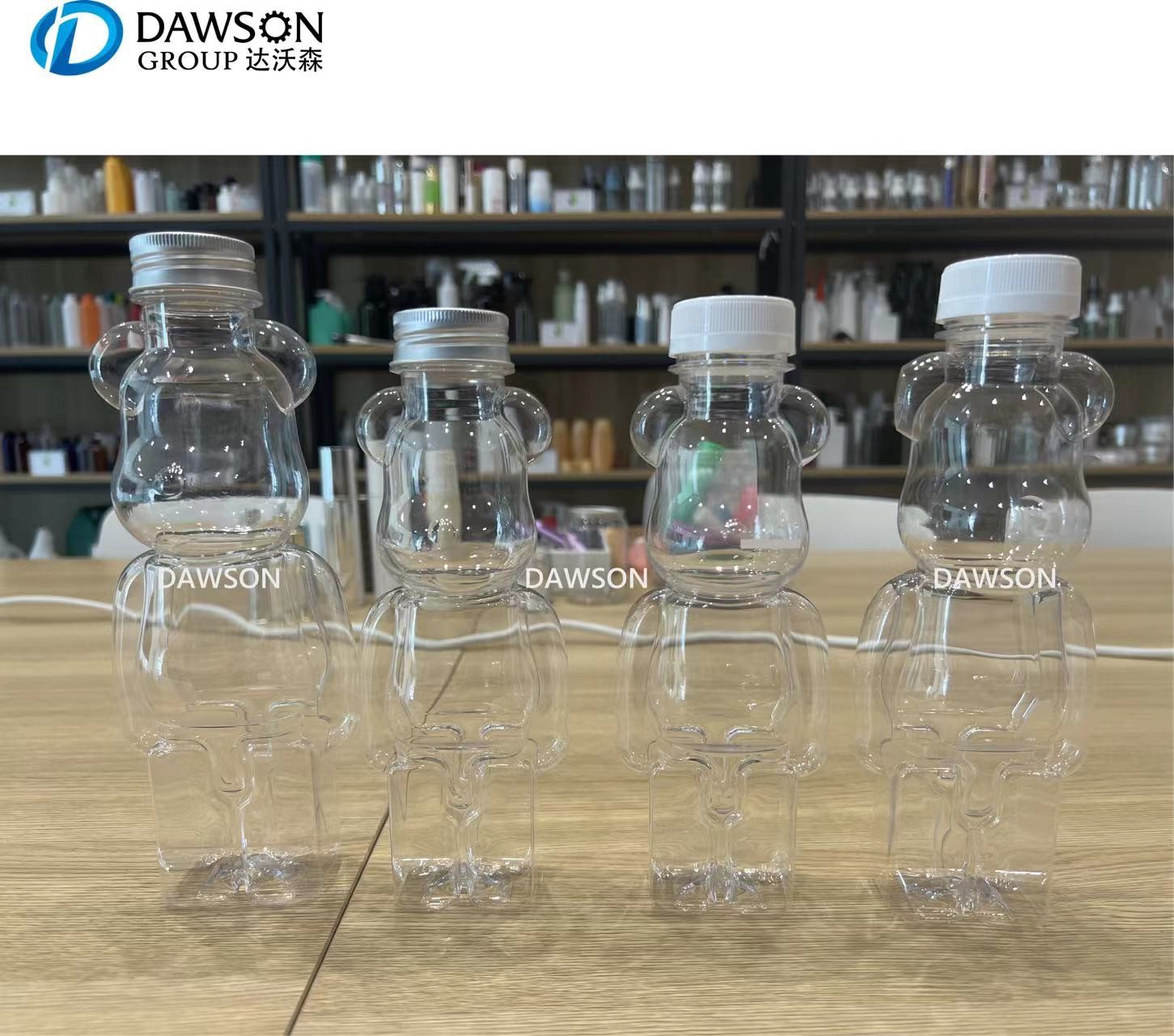

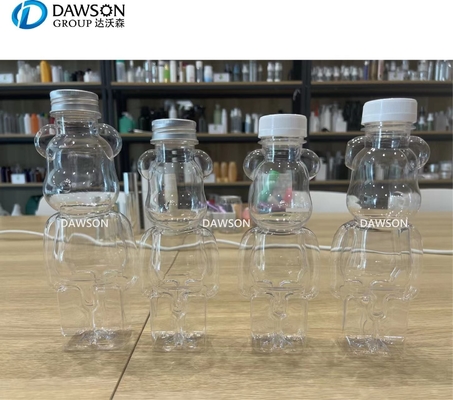

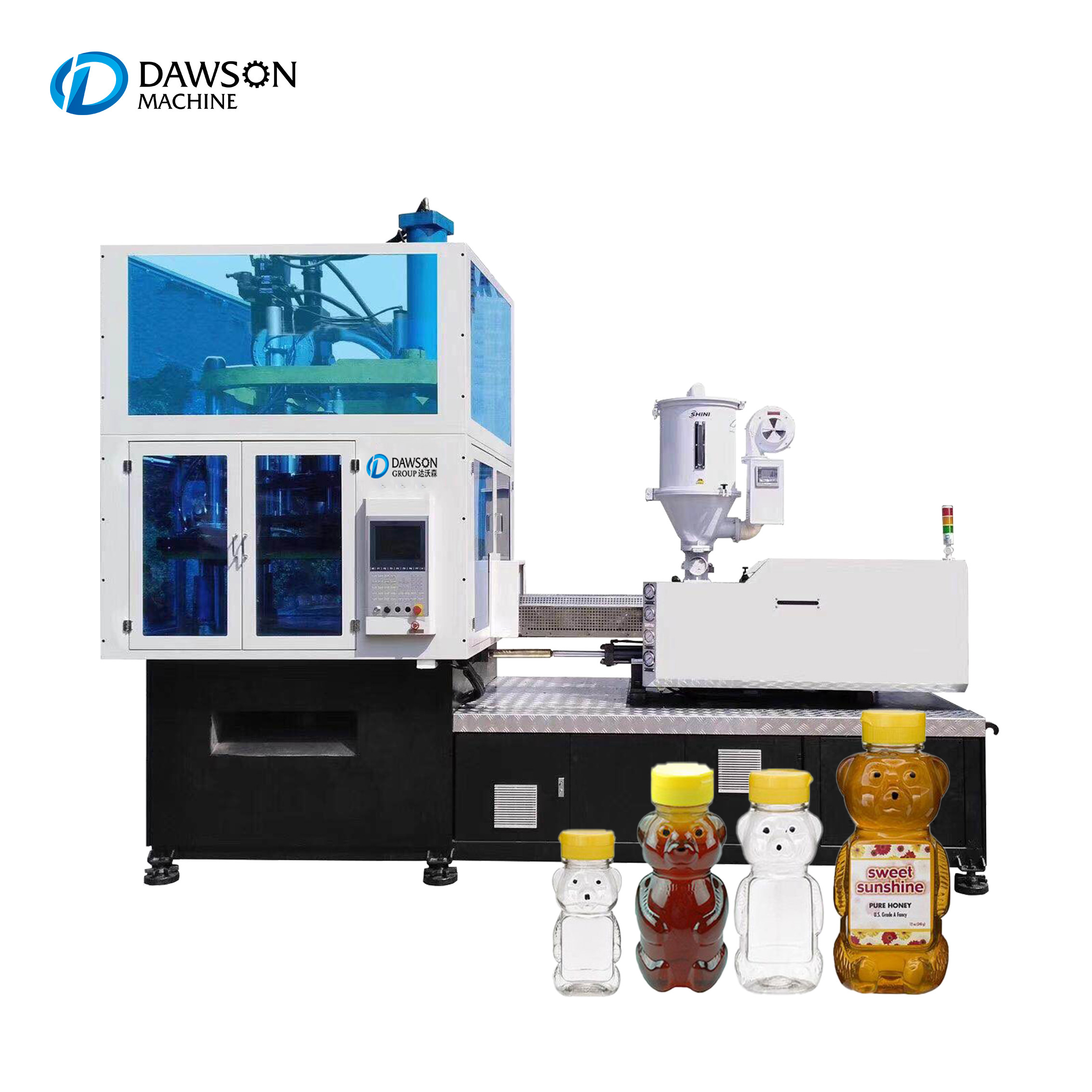

The Injection Stretch Blow Molding Machine process includes mould injection, stretch blowing and off-molding, all these steps could be finished in one step. The products from this machine don’t have flash, sprue, and with much less disfigurements. It presents the perfect looking mouth, bottom and seam as well as better transparency, higher rigidity. ISBM Injection Stretch Blow Molding Machine products are thinner, is possible to help you save 50% raw material. Besides the merit mentioned above, this machine can reach higher speed so as to achieve higher efficiency. ISBM1100N-3 is suitable for eye dropper bottles, medicine bottles, cosmetic bottles, jars, milk bottles, yogurt bottles, baby bottles...etc.
