Jerrycan Automatic Blow Molding Machine 150 BPH HDPE Plastic Extrusion 10L

1

MOQ

USD 15,700 ~ 95,000 / set

Price

Jerrycan Automatic Blow Molding Machine 150 BPH HDPE Plastic Extrusion 10L

Features Gallery Product Description Request A Quote

Features

Specifications

Certification: CE / ISO9001

Instructions Provided: Instructions In Chinese And English

Samples Provided: If Required

Blow Molding Type: Extrusion Blow Molding Machine

Showroom Location: None

Water Flow: 100L/Min

Mold Platen Size(Width)(mm): 380 Mm

Labor Demand: 1~2 Operetor

High Light:

Jerrycan Automatic Blow Molding Machine

,

150 BPH Automatic Blow Molding Machine

,

10L Automatic Blow Molding Machine

Basic Infomation

Place of Origin: China

Brand Name: DAWSON

Model Number: ABLB75

Payment & Shipping Terms

Packaging Details: Standard Export Packing

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T

Supply Ability: 20 set/month

Gallery

Jerrycan Automatic Blow Molding Machine 150 BPH HDPE Plastic Extrusion 10L

Product Description

Jerrycan Blow Molding Machine HDPE Plastic Extrusion Blow Molding Machine Price

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

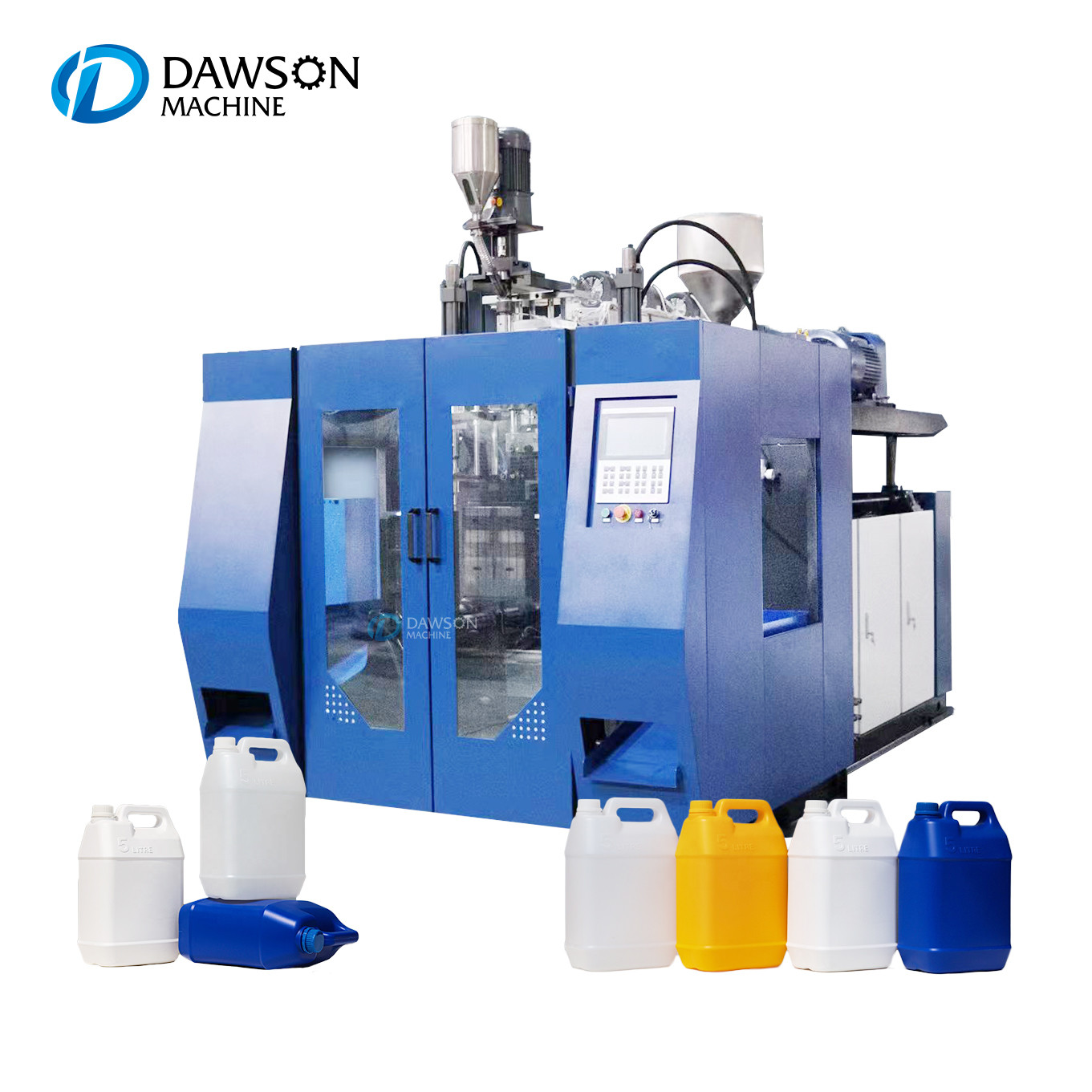

Automatic Extrusion Blow Molding Machine

Jerrycan Automatic Blow Molding Machine 150 BPH HDPE Plastic Extrusion 10L 0

Products Description

DAWSON MACHINERY & MOULD GROUP

Extrusion Blow Molding Machine
suitable for making plastic bottle, blowing jars, blow molding small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.

			Machine Model

			Max. Bottle size

			Production forecast

			ABLB80

			Double Station single Head

			10L

			120~150 BPH

			Single Station Single Head

			12L

			90~120 BPH

Technical Parameters

			Name

			Units

			ABLB65II

			ABLB75II

			Max.product volume

			L

			3.5

			8

			Screw diameter

			MM

			65

			75

			Screw drive power

			KW

			18.5

			22

			Output of HDPE

			KG/H

			75

			100

			Oil pump drive power

			KW

			7.5

			7.5

			Clamping force

			KN

			65

			80

			Max.size of mold

			MM

			320×350

			400×430

			Template size

			MM

			290×320

			380×420

			Mold stroke

			MM

			150-500

			170-520

			Max.die diameter

			MM

			170

			170

			Size of machine

			L×W×H

			3.9×2.2×2.6

			4.2×2.2×2.7

			Weight of machine

			TON

			6.5

			7.5

High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.

We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

Mould material P20# / S136H / Aluminium 7075#

mould neck and middle parts are separable.

Separate cooling system for mould neck, mould body and bottom.

Min 3 million mould life.

Optional to make interchangable parts of 20L/25L/30L

Mould can be made manual deflashing or auto deflashing.

Independant cooling system for neck area

Optional to add inserts to make customer LOGOs or UN LOGOs

Other jerry cans designs optional for customer to choose

Jerry can cap mould can also be provided.

			FAQ

			Q: Can we visit your factory?

			Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong

			International Airport. We can

			pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

			Q: How can we get the exact price of plastic machine?

			Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with

			quotation.

			Q: Do you provide any spare parts with machine?

			Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

			Q: How about your after-sale service ?

			We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical

			support or field installation assist.

			Q: What is the lead time?

			For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

			Q: What is the warranty period for your machine ?

			12 months warranty for components and technical support .

			Q: Do you provide custom machines?

			Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers

			products to meet customer' needs.

			Q: How can we install the machine when it arrives?

			We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the

			customer's employees.

			Q: What's DAWSON's advantage?

			DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we

			can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save

			a lot of cost and time.

			DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
