HDPE Simulation Model for Shop Window Coat Dress Clothing Displaying Mannequin Blowing Molding Machine
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Products Description
DAWSON MACHINERY & MOULD GROUP
Accumulation Type Large Barrel Blow Molding Machine ABLD120
suitable for making 200L 220L Double L Ring Chemical Drums. The output for 9.5KG 200L double L ring drum is 20 Pcs/hour, for 10.5KG 227L double L ring drum is 18 Pcs/hour. This Model ABLD120 is popular in chemical liquid packing field, due to its clear product positioning, strong and reliable product strength, high quality/price rate, stable performance, easy operation and maintenance.
ELECTRIC system:
The electrical control system includes :
TAIWAN WISETECH SYSTEM
TAIWAN WISETECH PARISON CONTROL SYSTEM
SCHNEIDER electrical components,
OMRON Relay
DELTA OR ABB invertor
ITALIAN PHASE / TAIWAN DELTA SERVO MOTOR
We fix the earth wire connecting, open front door stop, emergency stop button, light curtains and power line
insulation barrier to insure the operator’s personal safety.
All electric cabinet is equipped with its separate cooling Fan for safety and long time running.
Hydraulic system:
We adopt YUKEN pump & valves as our standard configuration of hydraulic system, driven by servo motor.张 家 港 达 沃 森 机 械 有 限 公 司
DAWSON MACHINERY & MOULD GROUP CO., LTD
ADD:B1105 HUIJIN BUSINESS CENTER,RENMIN ROAD,YANGSHE TOWN, ZHANGJIAGANG CITY JIANGSU PROVINCE CHINA
TEL: 0086 512 5899 0369
www.dawson-plastic.com
9
1. Servo motor saves 35% energy consumption
2. Servo motor, low noise (Typical motor always makes noises)
3. Servo motor no need always running,so the oil temperature is not high, this will protect the oil sealings,
and make the
O-sealings and hydralic components using for longer time.
4. Servo motor, machine works more smooth and more precision and high efficient.
5. As servo motor saves lots of power and oil temperature not high, you do not have to buy that big capacity
chiller, which also saves costs.
Technical Parameters
| Basic parameters |
Suitable material |
PE |
| Max volume |
250L |
| Output capacity |
20~25 pcs/h |
| Size |
8.6×3.8×5.8 (M) |
| Weight |
38 T |
| system |
Specification |
Parameters |
Note |

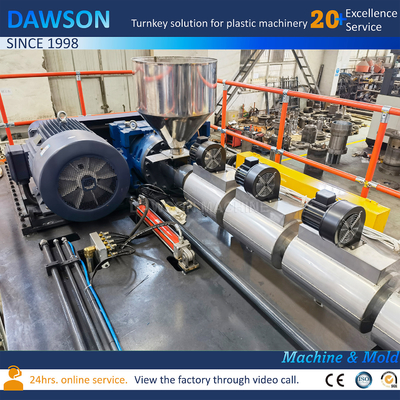

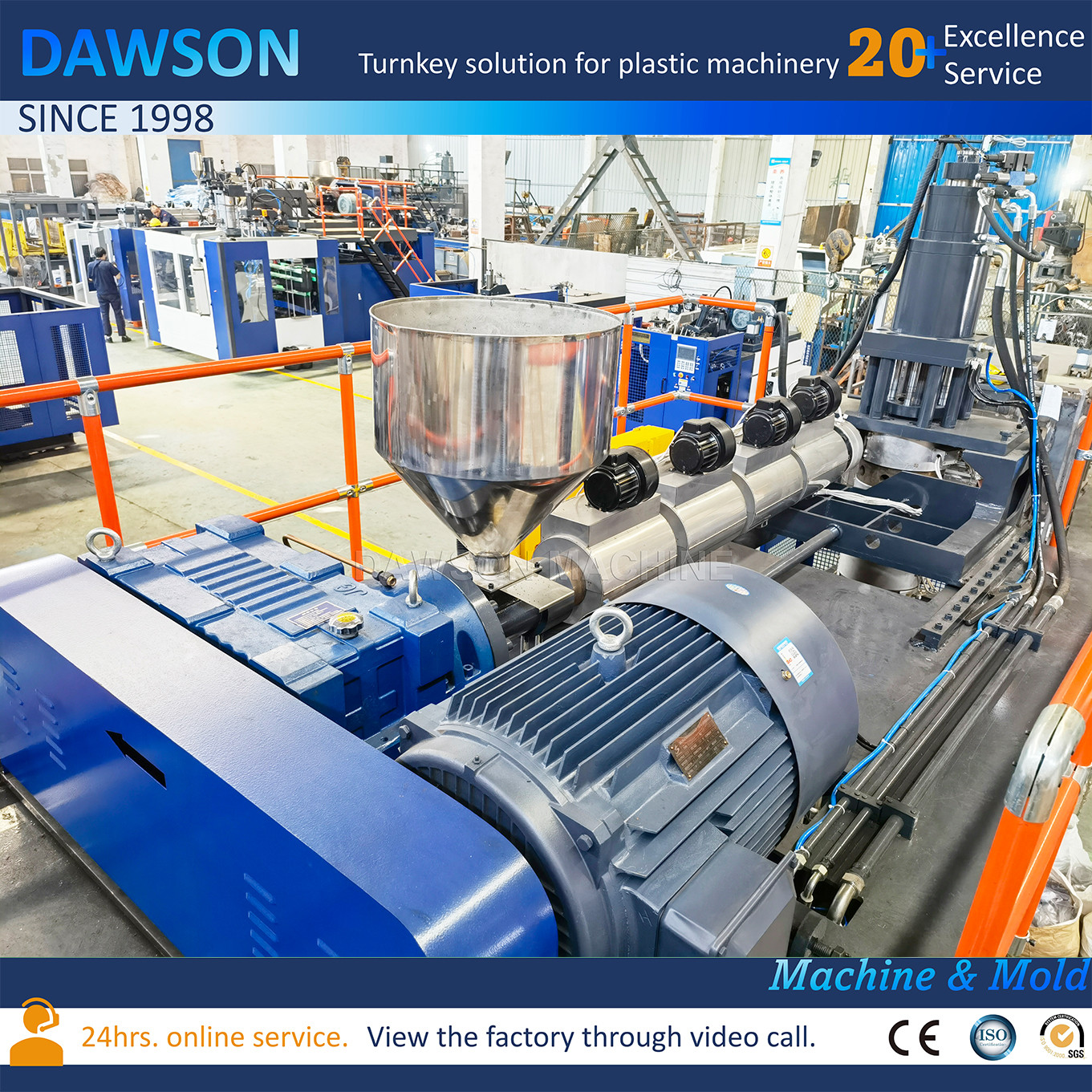

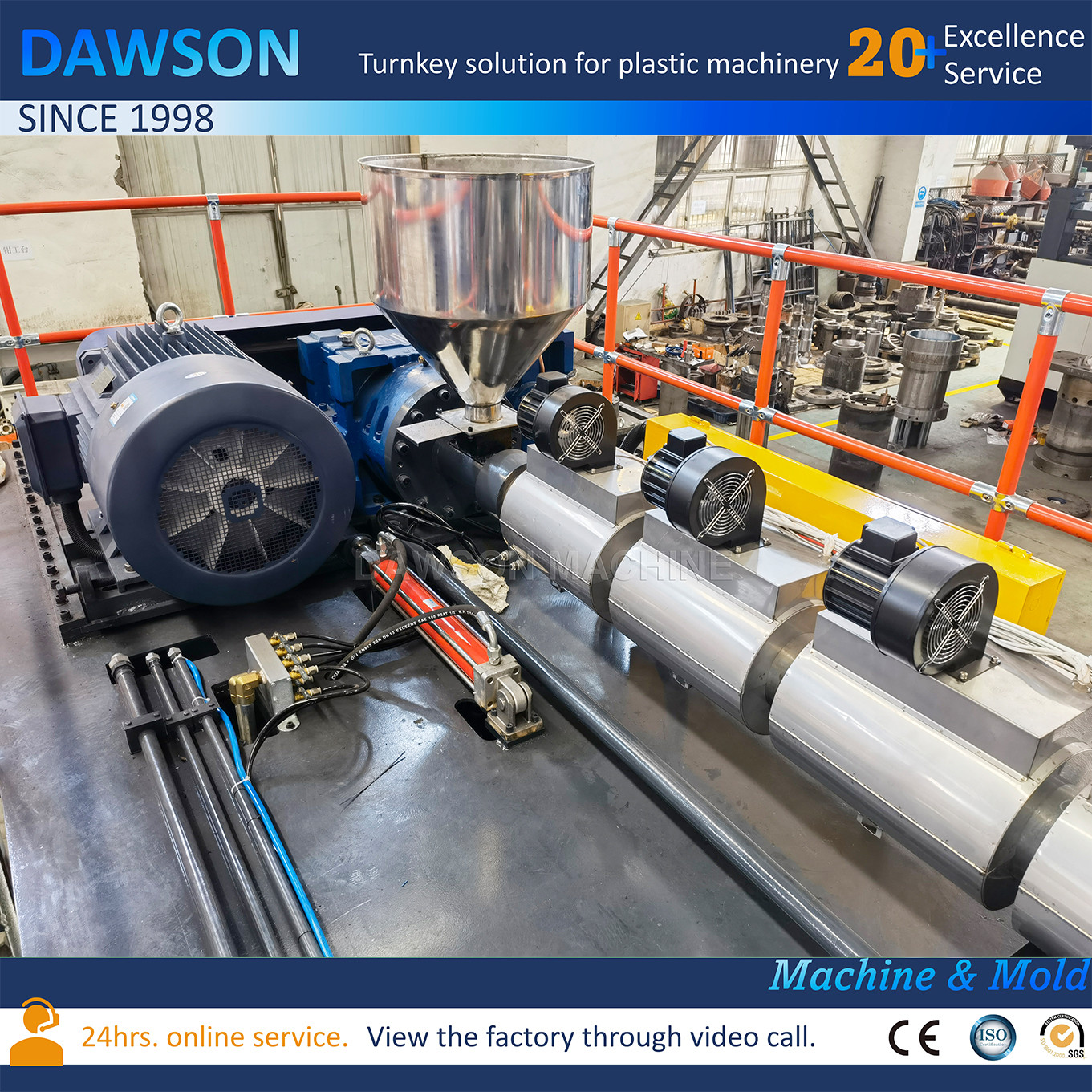

| Plasticizion system |
Summarize |
High efficient low power consumption plasticizing system, transducer control, self-protect function when started at low temperature |
|
| Reducer |
Hard finishing,High intension,Low noise reducer |
|
| Screw |
∮120mm,L/D ratio 28, 38CrMoALA |
Cooling system available |
| Plasticization |
320~400 Kg/H |
HDPE |
| Heating Zone |
5~6 Aluminum Heater |
Automatic heating |
| Heating power |
36KW/H |
|
| Extrusion Motor |
Motor 132kw (380V,50HZ) |
|
| Cooling Fan |
5~6zone |
Automatic cooling |
| Extrusion system |
Summarize |
High-grade alloy steel, center feeding |
|
| Die head number |
1 |
|
| Center distance of die heads |
/ |
|
| Max die mouth |
∮600mm |
|
| Heating zone |
6 Stainless steel heating cycle |
|
| Clamping system |
Summarize
|
High intension, rigidity, center mold locking, stable mould opening and clamping system |
|
| Clamping force |
850~900KN |
|
| Template distance |
850～1850mm |
|
| Max mould size |
1200X1800mm |
|
| Mould material |
High grade 50# steel |
|
| Electric system |
Summarize |
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) |
Japanese Mitsubishi PLC
system
|
| Operate interface |
Touch screen, automatic self-diagnose alarm system |
|
| Temperature control |
Automatic temperature control module |
|
| Movement control |
Japanese Mitsubishi, Chinese/English
Version
|
|
| Electric protection |
Ampere overload, electric short circuit self-protection function |
|
| Hydraulic system |
Summarize |
Multiple function hydraulic integrated block Proportional control, high efficient |
|
| Oil pump motor |
Three phase asynchronous motor (380V/220V,50/60HZ) 22kw |
|
| Oil pump |
Imported double pump |
|
| Valves |
Imported oil pump valves and connections |
|
| Oil pipes |
Double layer overpressure resistant |
|
| System pressure |
60Kg/cm² |
|
| Cooling system |
Separate water cooling cycle, oil cooler cooling system |
|
| Pneumatic system |
Summarize |
Taiwan AIRTAC pneumatic system |
|
| Air pressure |
1Mpa |
|
| Air displacement |
1.8M3/min |
|
| Electromagnetic valve |
AIRTAC |
|
| Cooling system |
Summarize |
Separate cooling system of mould, barrel and oil system |
|
| Cooling medium |
Water |
|
| Water flow |
18t/h |
|
| Water pressure |
0.3-0.6MPa |
|
High Quality Mould
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
Company Profile
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.
Customer satisfaction is our eternal pursuit...
|
|
|
Q: Can we visit your factory?
Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.
Q: How can we get the exact price of plastic machine?
Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.
Q: Do you provide any spare parts with machine?
Yes, we offer all necessary spare parts before shipment.(contact us for packing list )
Q: How about your after-sale service ?
We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.
Q: What is the lead time?
For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)
Q: What is the warranty period for your machine ?
12 months warranty for components and technical support .
Q: Do you provide custom machines?
Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.
Q: How can we install the machine when it arrives?
We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.
Q: What's DAWSON's advantage?
DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
