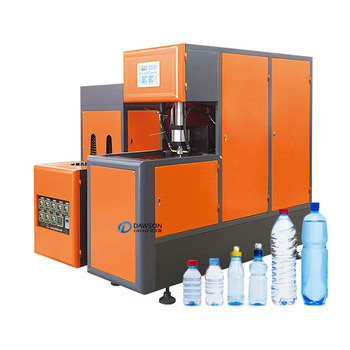

4 Cavities Pet Blow Molding Machine Plastic Can Jar Bottles Semi Automatic

1
MOQ
4580 USD/PCS
Price
4 Cavities Pet Blow Molding Machine Plastic Can Jar Bottles Semi Automatic
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 800bph
Mould: 1 Cavity
Voltage: According To Customer Request
Dimension(L*W*H): 1.6*0.6*1.5
Weight: 500kg
Color: According To Customer Request
High Light:

4 Cavities Pet Blow Molding Machine

,

Pet Semi Automatic Blow Molding Machine

,

Plastic Can Pet Blow Molding Machine

Basic Infomation
Place of Origin: China
Brand Name: PET
Certification: CE
Model Number: YC-2L-2
Payment & Shipping Terms
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C
Product Description

Semi-Automatic Plastic Jar Bottle Making Machinery Pet Blow Molding Machine

Product Description


20L bottle PET blow moulding machine

Model:YC-2L-2

Suitable for blowing bottles between 0L to 2L
Capacity:100 bottles per hour
Necessary auxiliary devices:High pressure air compressor, Air filter.

Semi-automatic blow moulding machine

l. Use integated mic computer controler,with OMRON control chip,the response speed is very quickly and the timing very precisely.Use life durable and failture rate very low.It's the revolutionary product of industrial control.

2. High responsiveness pneumatic components,action timely and precisely.

3. Thorough safe operation mechanism,start-up with two hands,avoid the accident during the operation.

4. Infrarted heating technology,safe and energy conservation,no pollution of the environment.With the 8 rates adjustable temperature controler,make the temperature suitable for blowing.



Technology Advantage

l. Special design,high rigid compound die structure
2. Wide adaptability, suitable for every type mould thickness
3. Adjust convenience
4. No mould rolling out
5. More energy conservation,no need much air supply
6. High burnish principal axis, with very precise polishing, light action and low noise.
7. Short mould stroke,quick action
8. All ZG45 casting, with long timing process,very small transformation,can meet your precise request 100%
9. Hig dead-weigh, ensure the steady during the opeartion



Service Process

1.Communication
Good communication with our customers to know the target product detais, output demands, confirm the most suitable blow molding machine models and provide whole project quotations.
2.Mould design
After confirmed the product, our engineers will provide the professional 3D drawing as per your samples, and we can also help you design the bottles as per your own idea or based on our own samples.
3.Drawing confirmation
After finalizing the drawings, we will send to you for approval, only after your approval& signature we will officially start the mould& all project.
4.Machine and mould production
After customer confirm and sign the drawing, we will start the production proces, from sheet-metal process, CNC fine machining, machine assembly, painting, to electrical installing, machine& mould testing, product testing...
5.Testing
We provide sufficient raw materials for each customer's project, to make enugh testing in our factory for both machine and moulds. It will 100% guarantee that there is no any problem before delivery to customer's factory.
6.Product inspection
After mould tested, we will do inspections to dimensions, appearance, cap sealing, thickness, filling lever, drop testing, leakage testing, screw testing...so on, to ensure the finishing is 100% as per original sample.
7.Sending samples
After mould tested, we will send the samples to our customer for approval, also will attach a testing report of machine& mould, to make our customer know parameters like cycle time, production capacity, botttle weight, thickness...so on.
8.Packing delivery
Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos of whole delivery will be sent to our customers for reference.
9.Customer acceptance
After customer received our machine, just arrange to prepare the air, water& electric connections. Then arrange 2~3technical people who had experiences in plastic machinery filed, especially blow molding machine or injection molding machine. They will be trained by our engineers later.
10.Installation and training
We will send the engineers to customer's factory, to test run the machine until it is running in normal state. Customer will bear the round-trip air tickets, accommodating, hotel and technology fee. We will also help customer training their operator how to operation and maintenance machines, make sure they can operate our machine independently.

4 Cavities Pet Blow Molding Machine Plastic Can Jar Bottles Semi Automatic 0



Company Profile



DAWSON MACHINERY & MOULD GROUP

This PET water bottle blow molding machine is specially designed to produce water bottle,
PET bottle with high heat resistance for hot filling package such as juice and tea. It adopts multiple blowing to reduce the residual stress, as result shaped bottle has slight shrinkage during hot filling.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable
performance. With high strength, good transparency and low production costs, abundant material resource, PET Blow Moulding Machine plays a big role in hot filling package market.


4 Cavities Pet Blow Molding Machine Plastic Can Jar Bottles Semi Automatic 1





Machine Advantages
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement,

equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.



Small performs distance heating system

Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30%
electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.



Efficient and soft perform inlet system

By rotary and soft preform inlet system, the speed of preform feeding is ensured meanwhile, the preform neck is well protected.

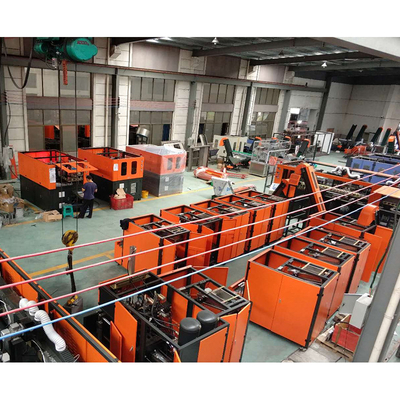

Professional Workshop

Our Professional Injection Stretch Blow Molding Machine Workshop...





Company Profile



DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in

Saudi Arabia, Colombia, Panama, South Africa ...

4 Cavities Pet Blow Molding Machine Plastic Can Jar Bottles Semi Automatic 2
RFQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
