Hot Sale 0~4L Shampoo Milk Cooking Oil Water Plastic Container Custom Design Bottle Making Blow Molding Machine

1
MOQ
USD 20,500 ~ 25,000 / set
Price
Hot Sale 0~4L Shampoo Milk Cooking Oil Water Plastic Container Custom Design Bottle Making Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Max. Product Volume: 5 L
Screw Diameter: 65 Mm
Screw L/D Ratio: 24 L/D
Screw Drive Power: 18.5 KW
Screw Heating Capacity: 5-6 KW
No. Od Heating Zone: 3 Zone
Output Of HDPE: 75 Kg/h
Oil Pump Drive Power: 7.5 KW
Clamping Force: 65 KN
Max. Size Of Mold: 320x350 Mm
Template Size: 290x320 Mm
Mold Stroke: 150-500 Mm
Blowing Pressure: 0.6 MPA
Water Consumption: 50 L/MIN
Size Of Machine: 3.9x2.0x2.6
Weight Of Machine: 5.5 Ton
High Light:

CE automatic pet bottle blowing machine

,

5L automatic pet bottle blowing machine

,

Shampoo hdpe bottle blowing machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: ABLB65
Payment & Shipping Terms
Packaging Details: Standard Export Packing
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T
Supply Ability: 20 set/month
Product Description

Hot Sale 0~4L Shampoo Milk Cooking Oil Water Plastic Container Custom Design Bottle Making Blow Molding Machine

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

Product Description



DAWSON MACHINERY & MOULD GROUP



Extrusion Blow Molding Machine ABLB65



suitable for making plastic bottle, jars, small containers, jerrycans from 50ml to 5L, The whole blow molding machine is equipped with bilingual operation panel and automatic configuration from world famous brands to realize the advantages of simple operation and high automation.



200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

Machine Model Max. Bottle size Production forecast

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

ABLB65II

Double Station/

1 Head

3.5L 240~260 BPH

Double Station/

2 Head

1L 530~550 BPH



Technical Parameters
Name Units ABLB65II ABLB75II
Max.product volume L 3.5 8
Screw diameter MM 65 75
Screw drive power KW 18.5 22
Output of HDPE KG/H 75 100
Oil pump drive power KW 7.5 7.5
Clamping force KN 65 80
Max.size of mold MM 320×350 400×430
Template size MM 290×320 380×420
Mold stroke MM 150-500 170-520
Max.die diameter MM 170 170
Size of machine L×W×H 3.9×2.2×2.6 4.2×2.2×2.7
Weight of machine TON 6.5 7.5



200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

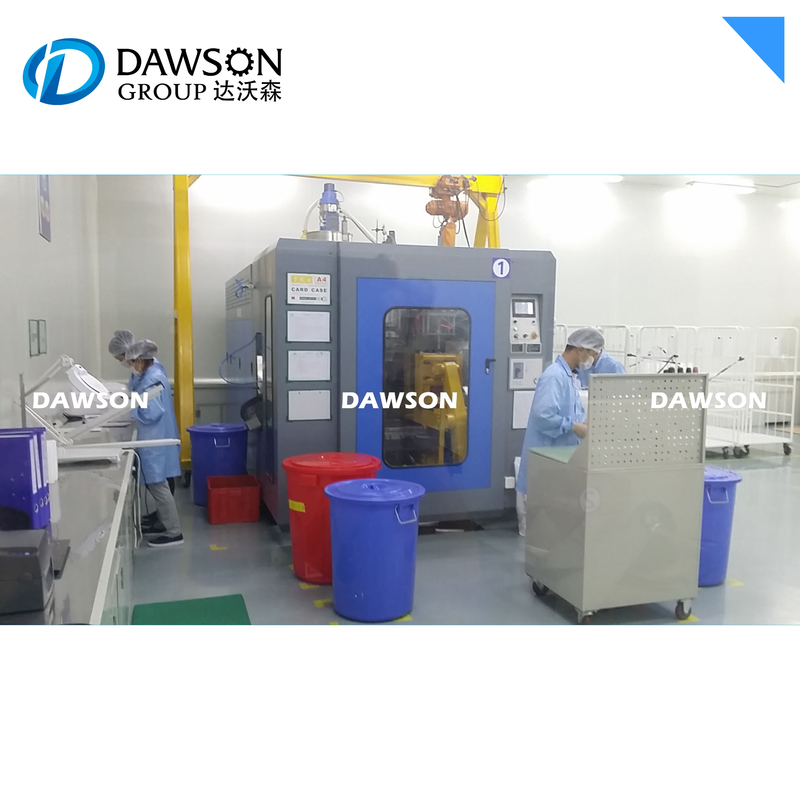

Workshop

Our professional blow molding machine workshop...



200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine



High Quality Mould



High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material

- Necking plate use JAPAN DC53 Heat treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine
200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

Company Information

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


We have our own service team in



Saudi Arabia, Colombia, Panama, South Africa ...







DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!


Customer Feedback

Dawson Machine & Mould Group



We committed to providing customers with plastic machinery and equipment production lines beyond expectations.





Customer satisfaction is our eternal pursuit...



200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

Our Services

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine

200ml 250ml 300ml 500ml Plastic Triangle Beaker Liquid Container Experimental Bottle Blowing Moulding Machine


FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.



Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.


Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
