suitable for making plastic bottle, jars, small containers, jerrycans from 5L to 20L,
The whole blow molding machine is equipped with bilingual operation panel
and automatic configuration from world famous brands to realize the advantages of simple operation
and high automation.
Machine Model
Max. Bottle size
Production forecast
ABLB90
Double Station Single Head

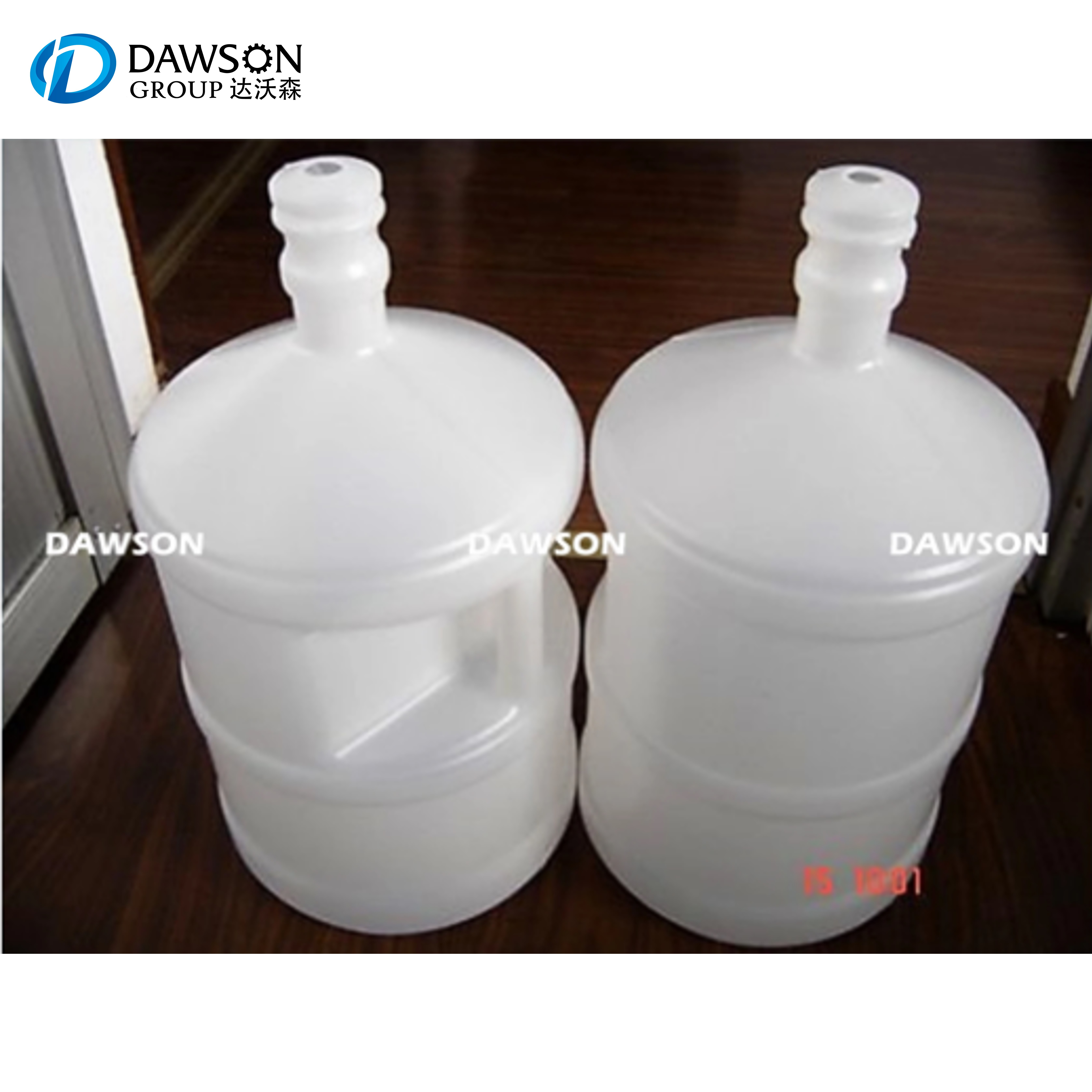

4 gallon
200~230 BPH
Single Station Single Head
4 gallon
120~150 BPH
Basic parameters
Suitable material
PE.PP,PVC,PS,PETG,so on
Max volume
20L
Output capacity
200~230 pcs/h
Size
4.6×3×2.4(M)
Weight
8.2T
system
Specification
Parameters
Note
Plasticizion system
Summarize
High efficient low power consumption plasticizion system, transducer control, self-protect function when started at low
temperature
Reducer
Hard finishing,High intension,Low noise reducer
Screw
∮90mm,L/D ratio 25, 38CrMoALA
Cooling system available
Plasticization
130Kg/H
HDPE
Heating Zone
4 Aluminum Heater
Automatic heating
Heating power
8KW/H
Extrusion Motor
Three phase asynchronous motor (380V,50HZ)
Cooling Fan
4zone
Automatic cooling
Extrusion system
Summarize
High-grade alloy steel, center feeding
Die head number
1
Center distance of die heads
/
Max die mouth
∮180mm
Heating zone
4 Stainless steel heating cycle
Heating power
5~7KW
Clamping system
Summarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force
108KN
Template distance
240~660mm
Max mould size
530X550mm
Mould material
High grade 50# steel
Electric system
Summarize
PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm,
auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interface
Touch screen, automatic self-diagnose alarm system
Temperature control
Automatic temperature control module
Movement control
Japanese Mitsubishi, Chinese/English
Version
Electric protection
Ampere overload, electric short circuit self-protection function
Hydraulic system
Summarize
Multiple function hydraulic integrated block Proportional control, high efficient
Oil pump motor
Three phase asynchronous motor 11kw (380V/220V,50/60HZ)
Oil pump
Imported double pump
Valves
Imported oil pump valves and connections
Oil pipes
Double layer overpressure resistant
System pressure
60Kg/cm²
Cooling system
Separate water cooling cycle, oil cooler cooling system
Pneumatic system
Summarize
Taiwan AIRTAC pneumatic system
Air pressure
0.6Mpa
Air displacement
0.9M3/min
Electromagnetic valve
Taiwan AIRTAC
Cooling system
Summarize
Separate cooling system of mould, barrel and oil system
Cooling medium
Water
Water flow
90L/min
Water pressure
0.3-0.6MPa
High Quality Mould
High Quality Blow Molding mould
In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.
- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material- Necking plate use JAPAN DC53 Heat
treatment to HRC62
- Double neck design available to change in future as a spare part necking
- All mould can be made auto-deflashing or manual deflashing as per customer requests
- Perfect mould cooling design to ensure the best moulding preformace
- Available to provide 2D & 3D product drawing for customers
- Available to send samples to customer for approval the product quality
- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...
