5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine

1 piece
MOQ
USD 5000-100000 piece
Price
5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Bottle Volume(ml): 5000ml
Max.Bottle Height(mm):: 400mm
Automation: Automation
Marketing Type: New Product 2020
Video Outgoing-inspection: Provided
Labor Demand: 1~2 Operetor
Local Service Location: South Africa, Nigeria
Maximum Application Size: 5L
High Light:

5 Gallon PET Bottle Making Machine

,

Mineral Water Container Blow Molding Machine

,

20l Water Container Moulding Machine

Basic Infomation
Place of Origin: CHINE
Brand Name: DAWSON
Certification: CE
Model Number: Q3000
Payment & Shipping Terms
Packaging Details: wooden
Delivery Time: 45-65 days
Payment Terms: L/C, T/T
Supply Ability: 25 pieces per month
Product Description

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

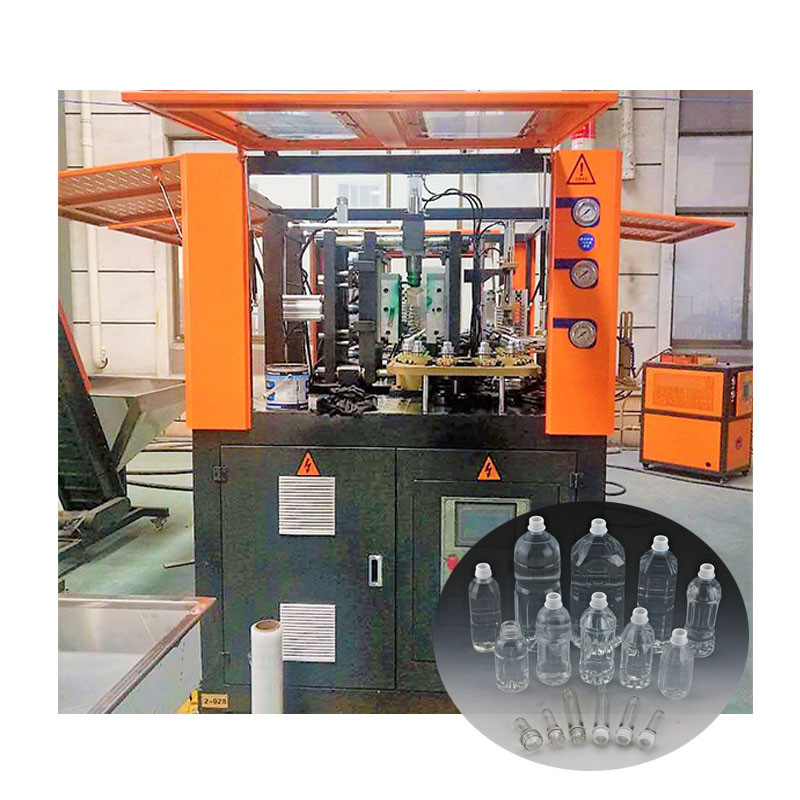

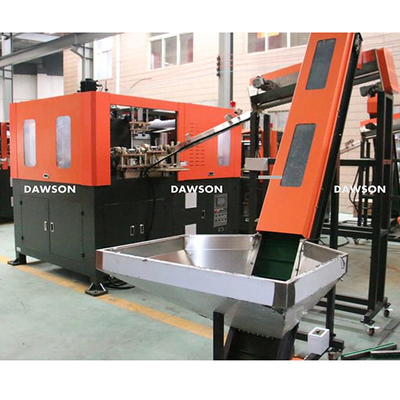

Fully Automatic PET Bottle Blow Moulding Machine

Q series is a stable two-step blow-down stretch automatic blowing machine.It can be used from 2 cavity to 9 cavity with a speed of 1200 bottles per hour (750 ml plastic bottles),max volume 2L plastic bottle,suitable for blowing any kind of carbonated beverage bottle,sparkling beverage bottle,pure water bottle, mineral water bottle,fruit juice beverage bottle,cosmetic bottles,large diameter bottles, high temperature resistance bottles and other packaging bottles.

adopt servo control system,and structure are stable and reliable ,high -speed and smooth,easy maintenance.the mold is very flexible which can meet the needs of non-stop inline produce. The touchable screen control and temperature adjustment simplified the temperature adjustment for different bottle blowing.

In addition, crystallization varies with different mold design, as a result, the PET bottle produced can stand temperature over 90°C depending on the type of PET material with different crystallization rate. The neck up blowing mode protects the bottle preform from damage during blowing and ensures stable performance. With high strength, good transparency and low production costs, abundant material resource, Q series plays a big role in hot filling package market.



  Item Q5L2

Bottle type
specification
Cavity 2
Theory output 1500BPH
Max.volume 5L
Bottle mouth maximum overall diameter 150mm
Bottle biggest diameter 180mm
Bottle maximun height 400mm

Power specification
Light tube quantity 32pcs
Light tube power 1.5KW
Maximum heating power 48KW
All electric machine installition 51KW
Actual consumption 30%-60%

Air pressure
specification
Work pressure 7-9kg/cm2
Blow bottle pressure 25-35kg/cm2
Higher-pressure ges consumption 3400Ltr/min

Forzen water
specification
Work pressure 5-6kg/cm2
Temperature range 10℃
Consumption 6000kcal/hr
Forzen water flow 50L/min

Machine specification
Size of the machine 4.7×1.6×1.9
Weight of the machine 3ton

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer



High Quality Mould
High Quality Blow Molding mould

In the process of plastic blow molding, the mold is a very important part. A good blow mould can make the product production more smoothly, and a good blowing mold can also make the finished product more flexible and beautiful.
We have our own mold production workshop, using high configuration equipment and mold engineers with 16 years of technical experience to customize blow molding mold for you.

- We use the best stainless steel S136H or Aluminium alloy 7075# as mould main material

- Necking plate use JAPAN DC53 Heat treatment to HRC62

- Double neck design available to change in future as a spare part necking

- All mould can be made auto-deflashing or manual deflashing as per customer requests

- Perfect mould cooling design to ensure the best moulding preformace

- Available to provide 2D & 3D product drawing for customers

- Available to send samples to customer for approval the product quality

- We had already made moulds for TOTAL,SHELL,GULF,BMW,YAMAHA,MOBIL,TOYOTA,MENGNIU, HYUNDAI,MENTHOLATUM,UNILEVER,LEE KUM KEE...

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer

Product Description



Company Information

DAWSON MACHINERY & MOULD GROUP

Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


We have our own service team in



Saudi Arabia, Colombia, Panama, South Africa ...







DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market, customers from more than 45 countries, we provide complete solution for your plastic industry business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!


Customer Feedback

Dawson Machine & Mould Group



We committed to providing customers with plastic machinery and equipment production lines beyond expectations.





Customer satisfaction is our eternal pursuit...



5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer

Our Services

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer

5 Gallon 20L Mineral Water Container PET Bottle Stretch Making Machine Manufacturer


FAQ



Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.



Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.


Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.
