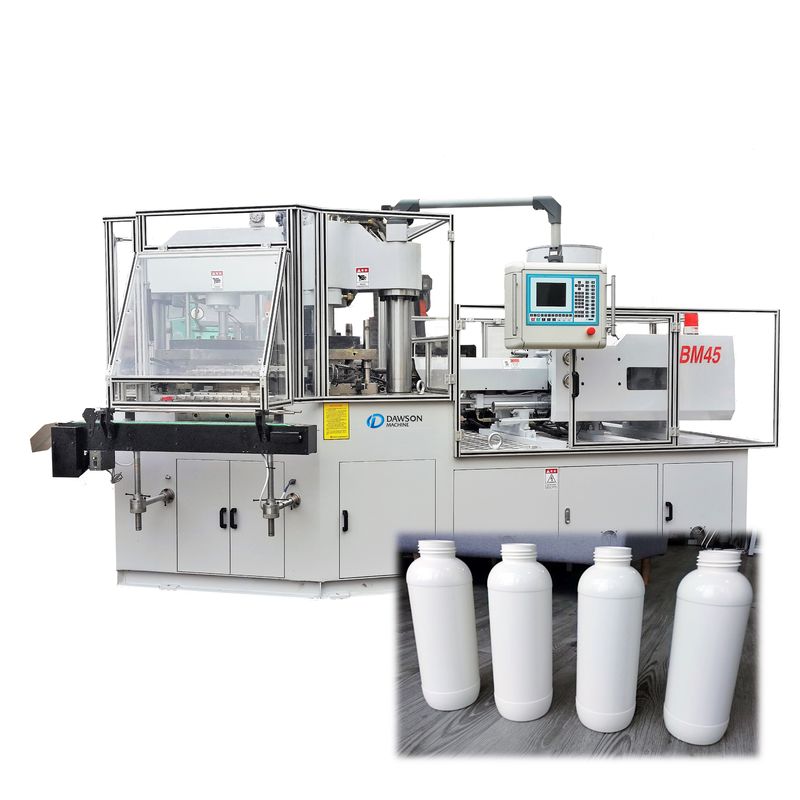

Servo System IBM 500ml Bottle Injection Blow Molding Machine

1 set
MOQ
USD $28,900.00 - $66,800.00 per set
Price
Servo System IBM 500ml Bottle Injection Blow Molding Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: IBM35D
More Application: Milk & Yogurt Bottle
Pneumatic Valve Connector: Valqua
Electronic Rulers: Italy Gefran
Application: Eye Dropper, Medicine Bottle, Chemical Bottle
Origin: Jiangsu Zhangjiagang
Trademark: DAWSON
High Light:

500ml Bottle Injection Blow Molding Machine

,

Servo System IBM Blow Molding Machine

Basic Infomation
Place of Origin: China
Brand Name: DAWSON
Certification: CE
Model Number: IBM35D
Payment & Shipping Terms
Packaging Details: Blow molding machine are packed with plastic film; auxiliary machines and spare parts are packed with wooden boxes. The loading to containers is done according to weight balance, every package's position is fixed in containers to avoid moving. The photos o
Delivery Time: 55-65 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 set per month
Product Description

Servo System IBM 500ml Bottle Injection Blow Molding Machine

At present, more and more people in China have begun to pay attention to the research and development of high-speed extruders. In particular, in recent years, high-speed extruders have made great progress, plastic extruders are the development of high-speed extrusion technology and have been applied more and more widely. With the continuous demand of output and energy consumption, high-speed extruder has become one of the development directions of extruder.




DAWSON MACHINERY & MOULD GROUP

Servo System IBM 500ml Bottle Injection Blow Molding Machine 0

Servo System IBM 500ml Bottle Injection Blow Molding Machine 1Servo System IBM 500ml Bottle Injection Blow Molding Machine 2



Technical Parameters
Model
Item

Unit
Date
Injection system
Screw Diameter
mm
40
45
50
Max. Theoretical injection capacity
G
176
260
314
Heating capacity
KW
7.2
10
10
No. of heating area
Qty
3
3
3
Clamping & blowing system
Clamping force of injection
kn
350
450
650
Clamping force of blowing
kn
40
78
89
Opening stroke of mold platen
mm
120
120
140
Max. Platen size (L×W)
mm
420×340
560×390
740×390
Min. Mold thickness (H)
mm
180
240
280
Heating capacity of mould
KW
2.8
4.0
5.0
Product dimension range
Suitable bottle range
ml
3-800
3-800
5-800
Max. bottle height
mm
≤180
≤200
≤200
Max. Dia. of bottle
mm
≤80
≤80
≤80
Dry cycle
s
4


Hydraulic driving system
Motor power
KW
11/15
18.7/22
17
hydraulic pressure
Mpa
14
14
14
Pneumatic system
Min. Air pressure
Mpa
≥0.8
1.0
1.0
Discharge rate of compressed air
M3/mm
≥0.7
≥0.8
≥0.8
Cooling system
Water flowage
M3/h
3
3
4

Total rated power with mold heating
KW
21/25
34/38
45
Machine information
Dimension
M
3.1×1.2×2.2
3.5×1.4×2.3
4×1.28×2.35
machine weight
Ton
4.0
6.0
7.5



Machine Advantages



Bottle is a container that can hold liquid or solid, which can be seen everywhere in our life, including medicine bottle, cosmetics bottle and beverage bottle. Due to the rapid development of the petroleum industry, human beings invented high molecular polymer, which is commonly known as plastics. Since then, our bottle materials have changed from single glass or ceramics to various kinds of plastics.

Servo System IBM 500ml Bottle Injection Blow Molding Machine 3

Feature

* Excellent plasticizing unit



* Bridge clamping unit for synchronism mould open/close, cycle time less



* Servo system can save 35 to 40% energy compared to normal system



* Servo rotary, precise, long using time, easy maintenance, save energy.



* Optional injection with all-electric way, replacing hydraulic way * CE certificate

Servo System IBM 500ml Bottle Injection Blow Molding Machine 4
our own engineers team, we have more then 18 years experience in this field.


1. The servo motor of our machine uses PHASE from Italy, it is the best supplier of servo motors.

2. The cylinder drive has been upgraded to a single cylinder, which is more stable and stronger. Life is also longer than the
others.

Our pneumatic valve uses FESTO Germany, which is the first quality in the world. Its purchase cost itself is very high, but the
quality is very stable and the service life is very long.
Servo System IBM 500ml Bottle Injection Blow Molding Machine 5
Servo System IBM 500ml Bottle Injection Blow Molding Machine 6 Servo System IBM 500ml Bottle Injection Blow Molding Machine 7



Injection blow plastic bottles are molded from raw materials to finished products in one step, with a high degree of automation, no need of manual secondary processing, labor saving, hygienic and in line with the GMP requirements of pharmaceutical packaging. It is especially suitable for the production of pharmaceutical bottles, juice, beverage, milk bottles and cosmetic bottles and other industries with higher bottle requirements.
Servo System IBM 500ml Bottle Injection Blow Molding Machine 8 Servo System IBM 500ml Bottle Injection Blow Molding Machine 9

Servo System IBM 500ml Bottle Injection Blow Molding Machine 10

Professional Workshop



Our Professional Injection Blow Molding Machine Workshop...
Servo System IBM 500ml Bottle Injection Blow Molding Machine 11
Servo System IBM 500ml Bottle Injection Blow Molding Machine 12
Company Profile
Servo System IBM 500ml Bottle Injection Blow Molding Machine 13
DAWSON MACHINE & MOULD GROUP

located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine,injection blow molding machine, injection molding machine, PET blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!


DAWSON will be your reliable friend in China, and we will always do our best to give you max support!





Customer Photos



We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Servo System IBM 500ml Bottle Injection Blow Molding Machine 14 Servo System IBM 500ml Bottle Injection Blow Molding Machine 15 Servo System IBM 500ml Bottle Injection Blow Molding Machine 16
Servo System IBM 500ml Bottle Injection Blow Molding Machine 17 Servo System IBM 500ml Bottle Injection Blow Molding Machine 18 Servo System IBM 500ml Bottle Injection Blow Molding Machine 19
Servo System IBM 500ml Bottle Injection Blow Molding Machine 20 Servo System IBM 500ml Bottle Injection Blow Molding Machine 21 Servo System IBM 500ml Bottle Injection Blow Molding Machine 22 Servo System IBM 500ml Bottle Injection Blow Molding Machine 23
Servo System IBM 500ml Bottle Injection Blow Molding Machine 24 Servo System IBM 500ml Bottle Injection Blow Molding Machine 25 Servo System IBM 500ml Bottle Injection Blow Molding Machine 26 Servo System IBM 500ml Bottle Injection Blow Molding Machine 27

Servo System IBM 500ml Bottle Injection Blow Molding Machine 28

Servo System IBM 500ml Bottle Injection Blow Molding Machine 29

FAQ


Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.
