1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan

1 set
MOQ
45800 USD/PCS
Price
1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Automatic: Yes
Warranty: 1 Year
Blow Moulding Type: Extrusion Blow Moulding
Application: Bottle,water Tank,jerrycan,Jerry Can,Kindergarten Bed
Plastic Processed: PE,PP,HDPE,PVC
After-sales Service Provided: Video Technical Support
Voltage: Customized
Material: PP,PE,HDPE/PP/PA
Name: Double Station Fully Automatic Extrusion Blow Molding Machine
Machine Type: Extrusion Blow Molding Machine
Product Name: PP PE Plastic Bottle Tank Extrusion Blow Molding Moulding Machine
High Light:

HDPE Bottle Extrusion Blow Molding Machinery

,

20L PP Jerrycan Blow Molding Machinery

,

5L PP Jerrycan Blow Moulding Machine

Basic Infomation
Place of Origin: China
Brand Name: EBM
Certification: CE
Payment & Shipping Terms
Delivery Time: 45-60 work days
Payment Terms: T/T, L/C
Product Description




DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***


located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery, PET blow molding machine, blow molding machine, injection molding machine, injection blow molding machine, injection stretch blow molding machine during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience, to confirm new theory and new design, we are forming a unique competitive advantage of our owns.

The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!



1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 0

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 1





Company Profile

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 2

DAWSON MACHINERY & MOULD GROUP, located in Zhangjiagang city, our team have more than 15 years' experience in the field of plastic blow molding machines, Plastic Moulds, IBM machines, injection molding machines, PET blow molding and other accessory machines in this filed. We can provide complete solution for your plastic industry business, help you analyze the product, provide 3D drawings and layout drawings, when the machines & moulds finished we have professional inspection system for testing, make sure all works perfect before shipping, and we provide all sorts of technical support & after-sale services for our customers! We care every of our customer and we do not only sell a machine or mould, but provide complete solution & all-life support to service them! Till now We already have customers in more than 45 countries, and had successfully supplied machinery & moulds to customers such as Total, GULF, YAMAHA, MengNiu, Liby detergents, Loreal Cosmetics ^ DAWSON will be your reliable friend in China, and we will make all efforts to support you in this business,please never

hesitate to contact us for more information or inquiries!





1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 3

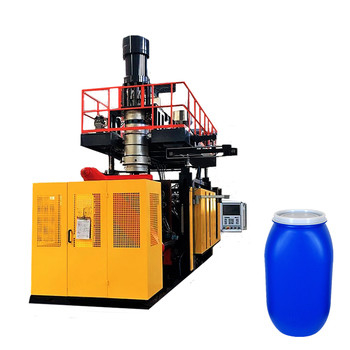

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 4Extrusion blow molding machine ABLD100

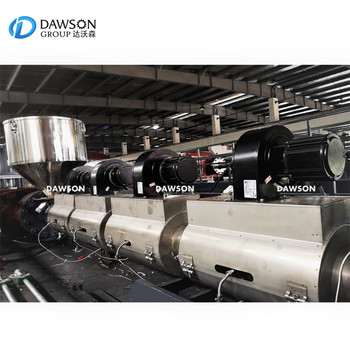

extruder
1 Screw diameter 100mm
2 L/D ratio 24:1
3 Screw speed 15~50r.p.m.
4 Drive motor 45Kw
5 Heating zone with cooling fan 6 zone
6 Output/Capacity 170 Kg/hr(HDPE particle)
8 Heating capacity 25.1 kw
9 Vertical adjustment of head 500mm
10 Forward/Backward adjustment of head 500mm
11 Groove feed barrel cylinder Have IKV
12 Gear box Hard gear decelerator
13 Ladder and safety rails Have

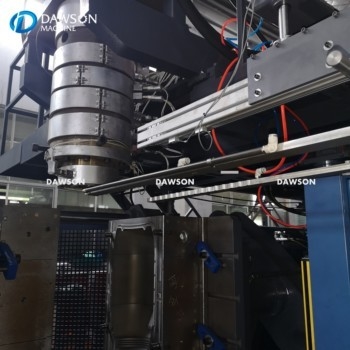

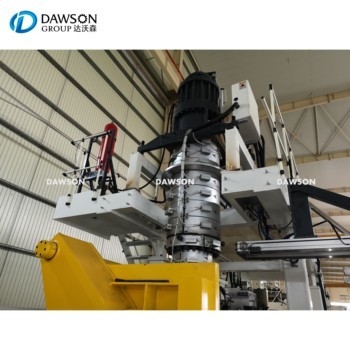

Accumulator Head
1 Accumulator capacity 20L(15kgHDPE)
2 Design First in and first out
3 Heating zone 6 zone
4 Heating capacity 25.1kw
5 Max die&pin diameter 450mm
6 Die head axis with pre-blow Ø120mm
7 Accumulator push-out stroke measurement Transducer Italy Gefran
8 Injection pressure 12 Mpa
9 Extruder stop Have

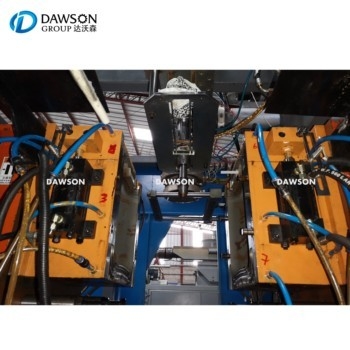

CLAMPING UNIT
1 Tie bar Two tie bar
2 Platen size 900(W)X1400(H)
3 Length of mold 900-960mm
4 Clamping force 780KN
5 Close/Open stroke 880-1700mm
6 Mold weight Max. 5000 kg
7 Clamping stroke measurement Transducer Italy Gefran
8 Hydraulic valve Taiwan Hitech
9 Number of hydraulic cylinder 1
10 High pressure 14 Mpa
11 Support parts for platen movement Liner Guide
HYDRAULIC SYSTEM
1 Main motor/vice motor AC15Kw/15Kw
2 Hydraulic valve Taiwan Hitech
3 Hydraulic pump Taiwan Hitech
4 Oil tank capacity 850L
5 Operating pressure 12 Mpa
6 Cooling water for oil fixed
7 Control of oil level be observed dipstick
PNEUMATIC SYSTEM
1 Operating pressure 0.8 Mpa
2 Blow pressure 0.8 Mpa
3 Needle blow circuit High & low pressure
4 Intermittent blow Have
5 Controlled support air for parison Have
6 Air Valves AIRTAC
7 Quick exhaust for support air Have
PARISON CONTROL
1 Programmer JAPAN MOOG
2 Servo valve
MOOG

3 Servo cylinder Intergret of die head
4 Hydraulic pack

TAIWAN YOSHE Variable Displacement Piston Pumps

ELECTRICITY
1 Contactor

Schneider

2 Total connected load (approx.)

114kw/h
3 Average energy consumption (approx.)

42 kw/h
WATER COOLING
1
Machine water consumption

6000L/h
2
Mold water consumption

6000L/h
AIR CONSUMPTION
1 Compressed air consumption 1.2 kgf/cm2, 3000 L/min
OTHER FEATURES
1 PLC control MITSUBISHI
2 Human machine interface Hitech
3 Recipe storage in hard disk Available
HEATING CONTROL
1 Power supply to heating element Relay + Contactor Japan Omron+Korea LG
2 Control PLC controle
3 Type of thermocouple K Type
4 Adjustable lower and upper limit alarm Have
5 Cold start prevention for screw Have
6 Alarm for thermocouple and heating element breakage Have, heating element breakage by anperemeter
7 Pre-heating function Have
Die-ring AND Die-pin
1 one sets of die & pin One set according to customer
2 Test material Buyer supply 300kg material to seller for machine testing
OPTION
1 Bottom blow (hydraulic) and sealing unit (pneumatic) Double blow pin (including expand & up-down & parison seal)
2 Robot Have
3 Machine Dimension 6.8*3.3*5
4 Total weight 20

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 5

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 6

1L 2L 5L 20L Plastic Extrusion Blow Molding Machinery for PP HDPE Bottle Barrel Jerrycan 7
