SCOPE OF APPLICATION: food, drink, medicine, cosmetics, oil, seasoning packaging bottles and bottles, sports water bottles, lampshades and other production.
One-step hollow molding machine process features:
1 Servo motor driven part of the turntable to prevent the pollution of hydraulic oil to the product;
2 Fully Automatic Control, simple operation;
3 The temperature of the cylinder and the temperature of the warm runner of the die are controlled by PIT accurately;
DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
Products Description
DAWSON MACHINERY & MOULD GROUP

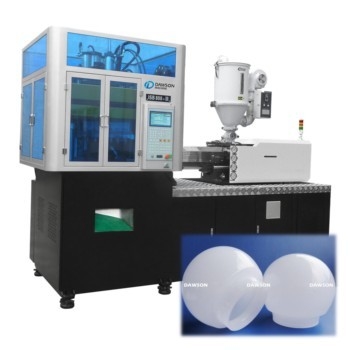

Injection Stretch Blow Molding Machine ISB800
This machine has three stations, injection preform, blowing & stretch and product release. The raw material comes from the hopper to the injection screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,then the product will rotate to release station and drop down, It's fully automatically cycle rotation working mode,no need to buy bottle preform, no waste, high degree of automation, finished products smooth and beautiful.
Commonly used in 10-1000 ml PET cosmetic bottle, milk bottle, sports water bottle, pharmaceutical packaging, PC bottle, red wine cup and LED lampshade, etc
Machine Advantages
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating.
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed.
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product;
Stretch Blow: Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;
Product Release: Equipped with a standard ejector.
With the increasing requirement of high quality and elegant appearance in the packing field of food, beverage, and cosmetic, the plastic containers made by the old style extrusion blowing machine cannot meet the customer’s demand any more. However, by one step injection stretch blow molding machine, from the raw material to product processed are all by one step.The whole process includes preform injection,stretch blow and release. No need trimmings, No runner gate material ( no scrap ), but perfect neck, bottom and line, higher transparent, higher rigid. Stretch-blowing molding products come with thinner wall and save more material. PET water bottle stretch blow molding machine completes a high speed molding without preform reheated. With the heat from preform injection to stretch and blow, unnecessary reheating and shorten preform cooling time to save energy. Injection Stretch blow molding machine optimizes the working structure, removes molding disadvantage factor, cuts off the complicated working procedure to ensure molding more reliable and increase the reject rate. One Step Injection Stretch blow moulding machine decrease the convey cost and avoid the second contamination, special for food and pharmaceutical company. For example, to transit the 19g 500ml bottle, if the 1m³ trunk used, it can load 1024 bottles, or 9280 preform, but if buy the raw material that can produce 56421 bottles. The logistic cost of material comparing with transiting bottles can be reduced by 98.2%; Comparing with the cost of transiting preform, the cost can be reduced by 83.6%.
Company Profile
DAWSON MACHINERY & MOULD GROUP
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....
We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
| Plastic machines we provide .... |
|
Extrusion Blow Molding Machine
Injection Blow Molding Machine
PET Blow Molding Machine
Injeciton Molding Machine
Injection Stretch Blow Molding Machine
|
| Applictions .... |
|
Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets.
Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields.
House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life.
Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere.
Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications.
Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels.
Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
|
DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
