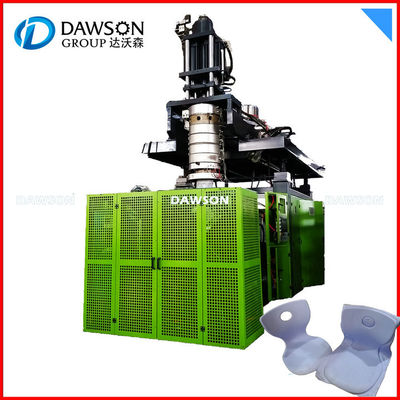

Extrusion Blow Molding Machine ABLD100
| extruder | |||
| 1 | Screw diameter | 100mm | |
| 2 | L/D ratio | 24:1 | |
| 3 | Screw speed | 15~50r.p.m. | |
| 4 | Drive motor | 45Kw | |
| 5 | Heating zone with cooling fan | 6 zone | |
| 6 | Output/Capacity | 170 Kg/hr(HDPE particle) | |
| 8 | Heating capacity | 25.1 kw | |
| 9 | Vertical adjustment of head | 500mm | |
| 10 | Forward/Backward adjustment of head | 500mm | |
| 11 | Groove feed barrel cylinder | Have IKV | |
| 12 | Gear box | Hard gear decelerator | |
| 13 | Ladder and safety rails | Have | |
| Accumulator Head | |||
| 1 | Accumulator capacity | 20L(15kgHDPE) | |
| 2 | Design | First in and first out | |
| 3 | Heating zone | 6 zone | |
| 4 | Heating capacity | 25.1kw | |
| 5 | Max die&pin diameter | 450mm | |
| 6 | Die head axis with pre-blow | Ø120mm | |
| 7 | Accumulator push-out stroke measurement | Transducer Italy Gefran | |
| 8 | Injection pressure | 12 Mpa | |
| 9 | Extruder stop | Have | |
| CLAMPING UNIT | |||
| 1 | Tie bar | Two tie bar | |
| 2 | Platen size | 900(W)X1400(H) | |
| 3 | Length of mold | 900-960mm | |
| 4 | Clamping force | 780KN | |
| 5 | Close/Open stroke | 880-1700mm | |
| 6 | Mold weight | Max. 5000 kg | |
| 7 | Clamping stroke measurement | Transducer Italy Gefran | |
| 8 | Hydraulic valve | Taiwan Hitech | |
| 9 | Number of hydraulic cylinder | 1 | |
| 10 | High pressure | 14 Mpa | |
| 11 | Support parts for platen movement | Liner Guide | |
| HYDRAULIC SYSTEM | |||
| 1 | Main motor/vice motor | AC15Kw/15Kw | |
| 2 | Hydraulic valve | Taiwan Hitech | |
| 3 | Hydraulic pump | Taiwan Hitech | |
| 4 | Oil tank capacity | 850L | |
| 5 | Operating pressure | 12 Mpa | |
| 6 | Cooling water for oil | fixed | |
| 7 | Control of oil level | be observed dipstick | |
| PNEUMATIC SYSTEM | |||
| 1 | Operating pressure | 0.8 Mpa | |
| 2 | Blow pressure | 0.8 Mpa | |
| 3 | Needle blow circuit | High & low pressure | |
| 4 | Intermittent blow | Have | |
| 5 | Controlled support air for parison | Have | |
| 6 | Air Valves | AIRTAC | |
| 7 | Quick exhaust for support air | Have | |
| PARISON CONTROL | |||
| 1 | Programmer | JAPAN MOOG | |
| 2 | Servo valve | MOOG |
|
| 3 | Servo cylinder | Intergret of die head | |
| 4 | Hydraulic pack | TAIWAN YOSHE Variable Displacement Piston Pumps | |
| ELECTRICITY | |||
| 1 | Contactor | Schneider | |
| 2 | Total connected load (approx.) | 114kw/h | |
| 3 | Average energy consumption (approx.) | 42 kw/h | |
| WATER COOLING | |||
| 1 | Machine water consumption |
6000L/h | |
| 2 | Mold water consumption |
6000L/h | |
| AIR CONSUMPTION | |||
| 1 | Compressed air consumption | 1.2 kgf/cm2, 3000 L/min | |
| OTHER FEATURES | |||
| 1 | PLC control | MITSUBISHI | |
| 2 | Human machine interface | Hitech | |
| 3 | Recipe storage in hard disk | Available | |
| HEATING CONTROL | |||
| 1 | Power supply to heating element | Relay + Contactor | Japan Omron+Korea LG |
| 2 | Control | PLC controle | |
| 3 | Type of thermocouple | K Type | |
| 4 | Adjustable lower and upper limit alarm | Have | |
| 5 | Cold start prevention for screw | Have | |
| 6 | Alarm for thermocouple and heating element breakage | Have, heating element breakage by anperemeter | |
| 7 | Pre-heating function | Have | |
| Die-ring AND Die-pin | |||
| 1 | one sets of die & pin | One set according to customer | |
| 2 | Test material | Buyer supply 300kg material to seller for machine testing | |
| OPTION | |||
| 1 | Bottom blow (hydraulic) and sealing unit (pneumatic) | Double blow pin (including expand & up-down & parison seal) | |
| 2 | Robot | Have | |
| 3 | Machine Dimension | 6.8×3.3×5 | |
| 4 | Total weight | 20 | |
