220L Plastic Drum Making Machine , Fully Automatic Stretch Blow Moulding Machine
-
-
Large Image :
220L Plastic Drum Making Machine , Fully Automatic Stretch Blow Moulding Machine
|
Product Details:
| Place of Origin: |
SHANDONG,CHINA |
| Brand Name: |
UYOUNG MACHINERY |
| Certification: |
CE |
| Model Number: |
UY-220-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 set |
| Price: |
Negotiation |
| Packaging Details: |
disassemble machine at first, wrapped parts with plastic film, put them into containers |
| Delivery Time: |
120 days |
| Payment Terms: |
T/T, L/C |
| Supply Ability: |
20 sets per year |
|
Detailed Product Description
| Machine Dimension: |
9*5*5.5m |
Total Power: |
223kw |
| Average Power Consumption: |
130kw |
Plastic Processed: |
HDPE |
| Blow Moulding Type: |
Extrusion Blow Moulding |
blow molding/moulding machine for 220L double L-ring chemical drum
This machine is suitable to produce 220L double L-ring chemical drums with HDPE material. it's full automatic and easy to operate.
Blow molding technique is a newest technology for plastic products. Compare to the rotational molding, blow molding has the follow advantages:
1. Output can be 4 times than rotational molding.
2. Recycle material can be used which can save the material cost up to 35%.
3. There is almost no failure during producing.
4. Products are more strength and resilience.
5. Easy operating and less workers required.
1. Specification
| Model | UY220-1 |
| Product range | 220L |
| Machine dimension(LxWxH) | 9*5*5.5m |
| Machine weight | 32ton |
| Total power | 223kw |
| Average power consumption | 130kw |
| Die-header | |
| Accumulator size | 20kg |
| Heating power | 30kw |
| Extrusion system | |
| Screw diameter | 130mm |
| Screw L/D ratio | 30/1 |
| Extruder motor power | 110kw |
| Heating power | 33kw |
| Plasticizing capacity | 300kg/h |
| Mold clamping unit | |
| Clamping platen size | 1500*1600*60mm |
| Max.mold size | 1200*1500mm |
| Clamping force | 1000kn |
| Hydraulic system | |
| Main oil pump power | 37kw |
| Small oil pump power | 7.5kw |
| Oil tank capacity | 950L |
2. Machine overview

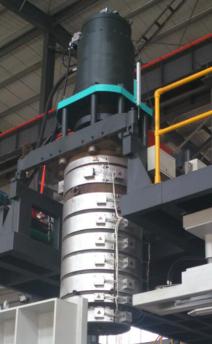

|  | Die Head Unique design for the die head to supply even and color clear layers. - Super large accumulator suits for various products.
- Die head can go up and down to change molds and adjust the flash according to different molds.
|
|

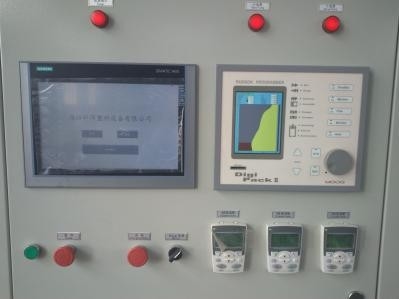

 | MOOG and PLC - 100 adjustment points Moog for parison to control the thickness accurately.
- PLC with the remote control provides a prompt and precise checking and maintenance.
- Temperature control by PLC makes it easier for adjustment and checking
- Data saving and loading offers a easy way of operating
|

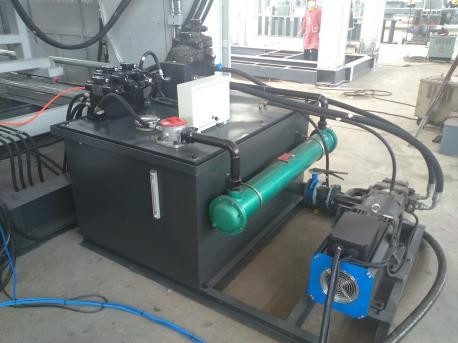

|  | Hydraulic Station and Servo Controller - Yuken valves (Japan original) provide more clamping strength and with DZ seals give a stable usage for hydraulic.
- Servo controller can save at least 30% energy for clamping motor
|

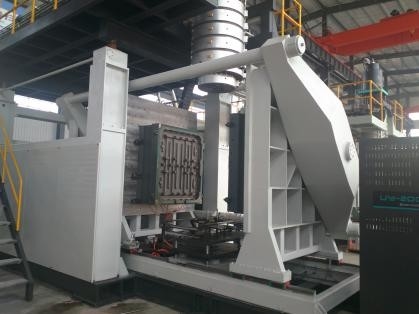

|  | Clamping System - The double rob clamp design gives 20% more center strength than normal.
- Intensive clamping platen to increase the life time of the clamping system.
|

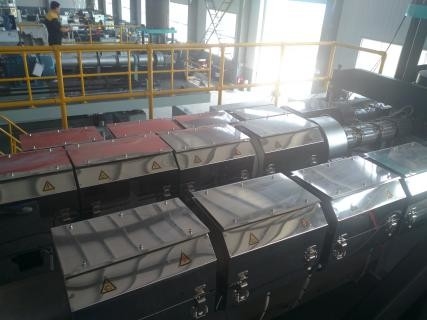

|  | Material Loading and Extruders - Vacuum loaders occupy less spare and provide more stable feeding for the extruders.
- 28/1 L/D screw and the whole-covers for the heaters decrease the energy consumption of heating.
|
3. Payment terms
30% advance shall be paid by T/T when place the order, and 70% balance by T/Tbefore shipment.
4. Delivery time
Delivery time: 120 days
The machine shall be ready for inspection in the seller’s factory 90 days after the seller receives the advance.
5. Packaging
The machine will unfold into small parts, well packaged and put into containers.
